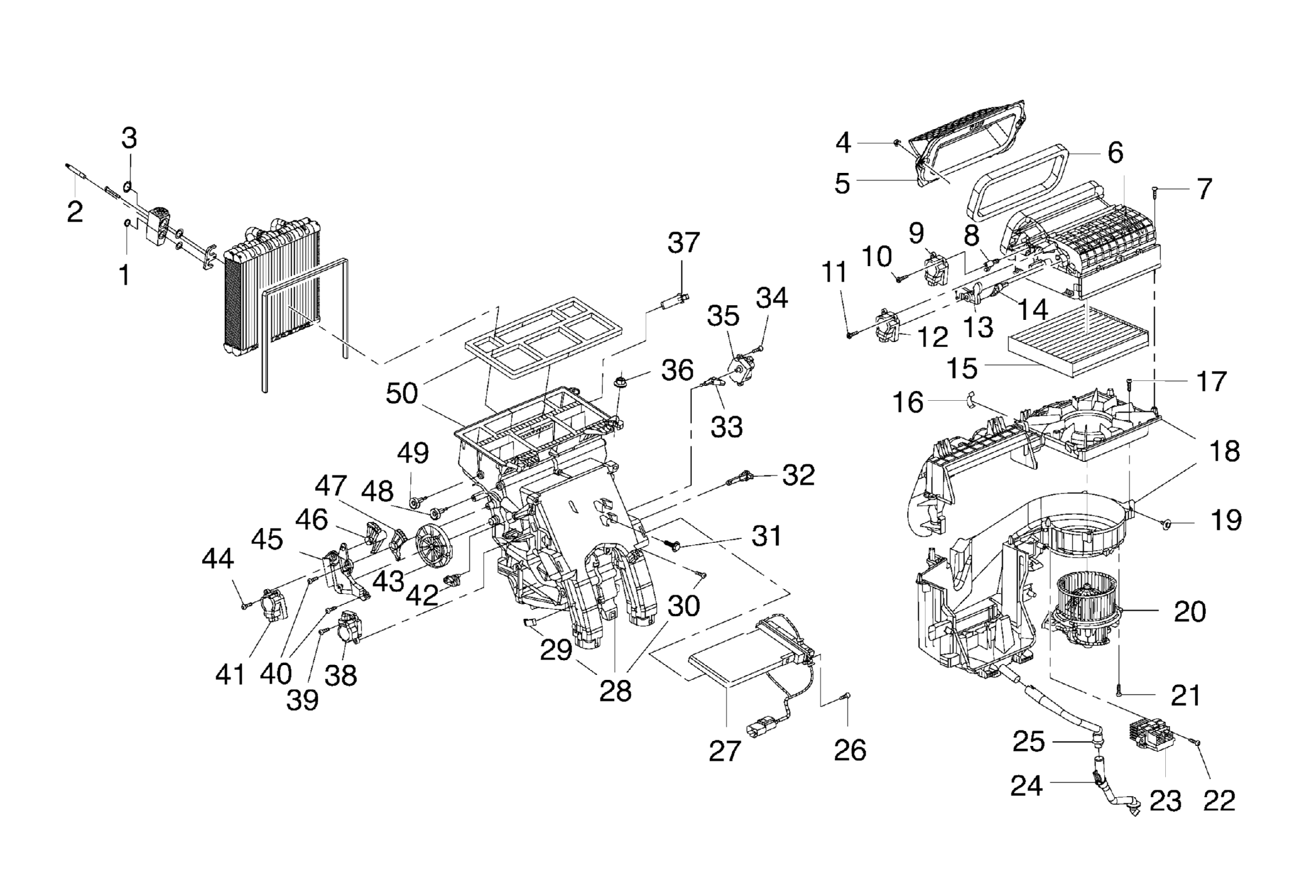

HVAC Component Views (CJ2)
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Air Conditioning Evaporator Inlet Tube Seal |
| 2 | Air Conditioning Evaporator Thermal Expansion Valve Stud |
| 3 | Air Conditioning Evaporator Outlet Tube Seal |
| 4 | Air Inlet Nut |
| 5 | Air Inlet |
| 6 | Air Inlet Housing |
| 7 | Air Inlet Housing Bolt |
| 8 | Air Inlet Valve Lever - Front |
| 9 | Air Inlet Valve Actuator - Rear |
| 10 | Air Inlet Valve Actuator Bolt - Rear |
| 11 | Air Inlet Valve Actuator Bolt - Front |
| 12 | Air Inlet Valve Actuator - Front |
| 13 | Air Inlet Valve Lever - Front |
| 14 | Air Inlet Valve Lever - Rear |
| 15 | Passenger Compartment Air Filter |
| 16 | Air Conditioning Evaporator Case Clip |
| 17 | Blower Case Bolt |
| 18 | Heater and Air Conditioning Evaporator and Blower Upper Case |
| 19 | Heater and Air Conditioning Evaporator and Blower Module Bolt |
| 20 | Blower Motor |
| 21 | Blower Motor Bolt |
| 22 | Blower Motor Control Module Bolt |
| 23 | Blower Motor Control Module |
| 24 | Air Conditioning Evaporator and Blower Module Drain Lower Hose |
| 25 | Air Conditioning Evaporator and Blower Module Drain Upper Hose |
| 26 | Auxiliary Heater Core Bolt |
| 27 | Auxiliary Heater Core |
| 28 | Heater and Air Conditioning Evaporator Case |
| 29 | Heater and Air Conditioning Evaporator Case Clip |
| 30 | Heater and Air Conditioning Evaporator Case Bolt |
| 31 | Heater and Air Conditioning Evaporator and Blower Module Bolt |
| 32 | Inside Air Temperature Sensor - Right Side Lower |
| 33 | Front Floor Console Rear Air Valve Actuator Lever - Right Side |
| 34 | Temperature Valve Actuator Bolt - Right Side |
| 35 | Temperature Valve Actuator - Right Side |
| 36 | Heater and Air Conditioning Evaporator and Blower Module Nut |
| 37 | Inside Air Temperature Sensor - Right Side Upper |
| 38 | Temperature Valve Actuator - Left Side |
| 39 | Temperature Valve Actuator Bolt - Left Side |
| 40 | Mode Control Cam Actuator Mounting Plate Bolt |
| 41 | Mode Control Cam Actuator |
| 42 | Front Floor Console Rear Air Valve Actuator Lever - Left Side |
| 43 | Heater and Air Conditioning Mode Control Cam |
| 44 | Mode Control Cam Actuator Bolt |
| 45 | Mode Control Cam Actuator Mounting Plate |
| 46 | Vent Valve Lever |
| 47 | Mode Valve Lever |
| 48 | Vent Valve Gear |
| 49 | Mode Valve Gear |
| 50 | Air Conditioning Evaporator |
