Steering Linkage Inner Tie Rod Replacement

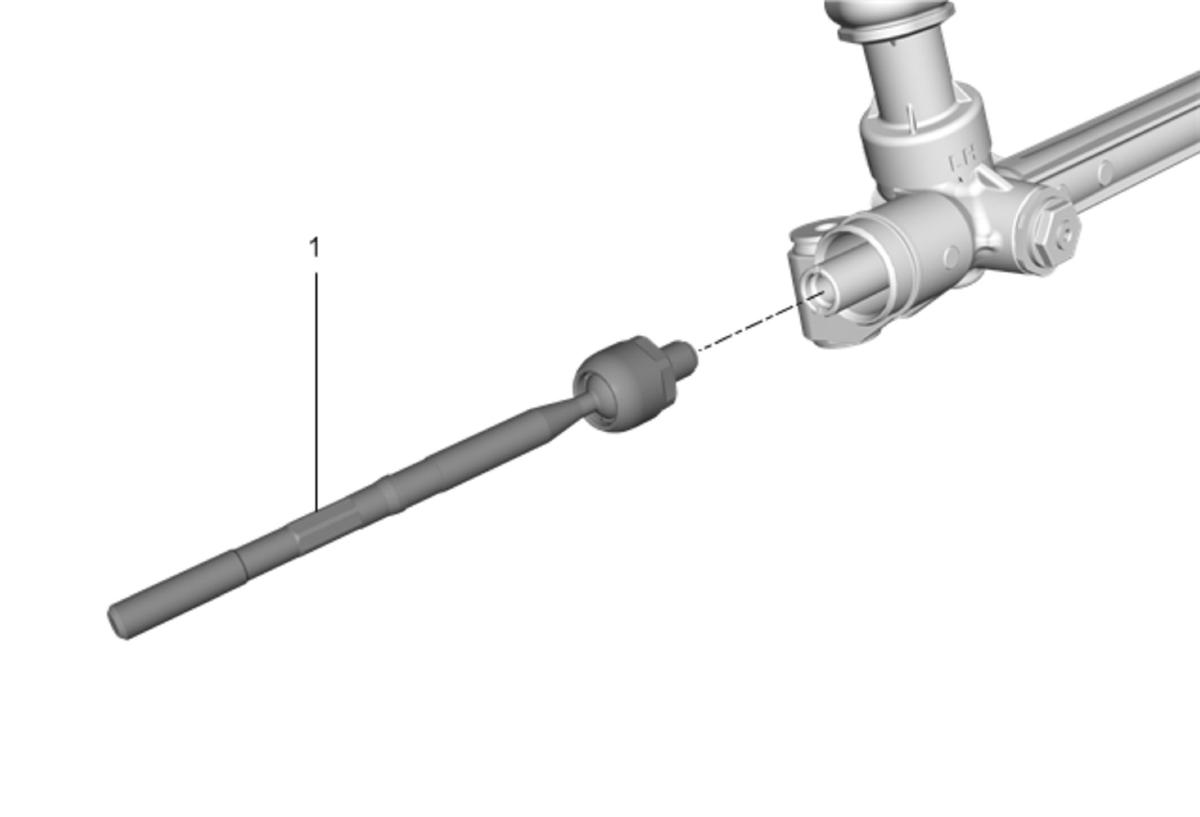

Fig 1: Steering Linkage Inner Tie Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering gear. Refer to Steering Gear Replacement . Remove the steering linkage outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement . Remove the steering gear boot. Refer to Steering Gear Boot Replacement .
1	Steering Linkage Inner Tie Rod CAUTION: Refer to Fastener Caution . Tighten 88 N.m (65 lb ft)

Callout

Component Name

Preliminary Procedures

Remove the steering gear. Refer to Steering Gear Replacement .
Remove the steering linkage outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .
Remove the steering gear boot. Refer to Steering Gear Boot Replacement .

Steering Linkage Inner Tie Rod

CAUTION: Refer to Fastener Caution .

Tighten
88 N.m (65 lb ft)
