Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

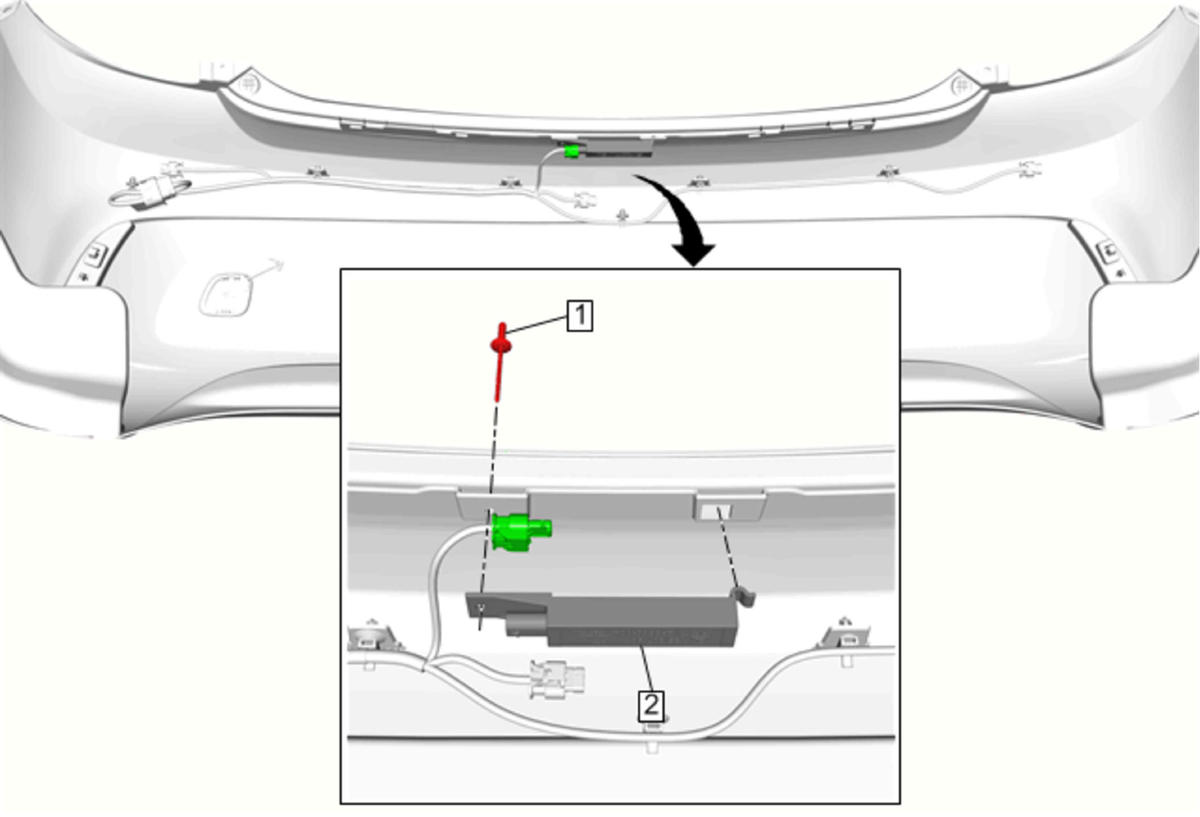

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia
GM4575199Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia ReplacementRear Bumper Fascia Replacement (Active)
1 Ignition Lock Key Transmitter Antenna Rivet

Procedure

  1. Disconnect the electrical connector.
  2. Drill out the rivet on the Ignition Lock Key Transmitter Antenna
2 Ignition Lock Key Transmitter Antenna
