Fuel Tank Pressure Sensor Replacement

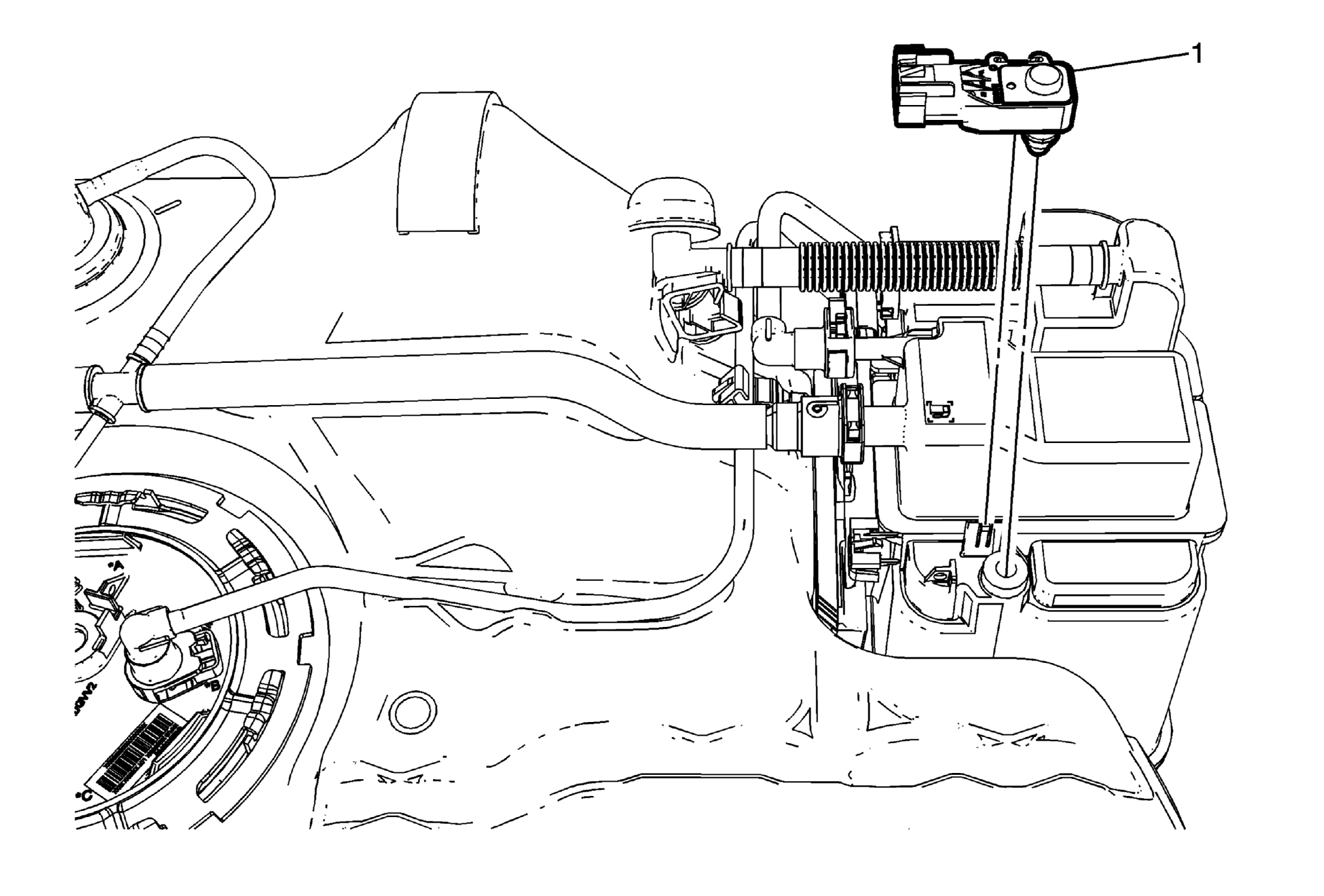

Fig 1: Fuel Tank Pressure Sensor
GM2866445Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement (Plastic Tank) , or Fuel Tank Replacement (Steel Tank) .
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the FTP sensor electrical connector.
