Installation Procedure

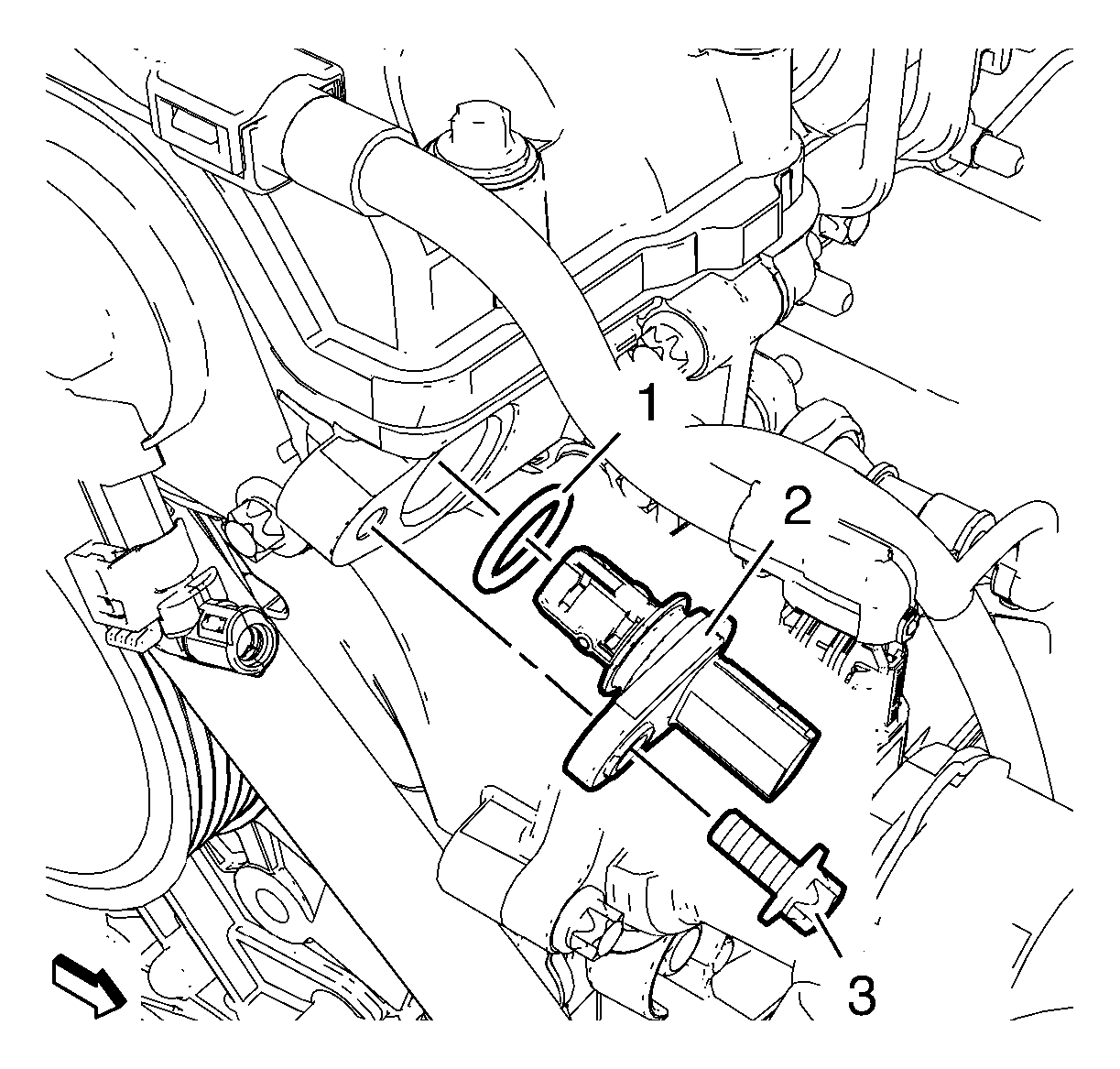

    Fig 1: Camshaft Position Sensor
    GM2191799Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Graphic shows exhaust camshaft position sensor. Use same procedure for Intake camshaft position sensor.

  1. Install the camshaft position sensor (2) and the seal ring (1).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the camshaft position sensor bolt (3) and tighten to 8 N.m (71 lb in).

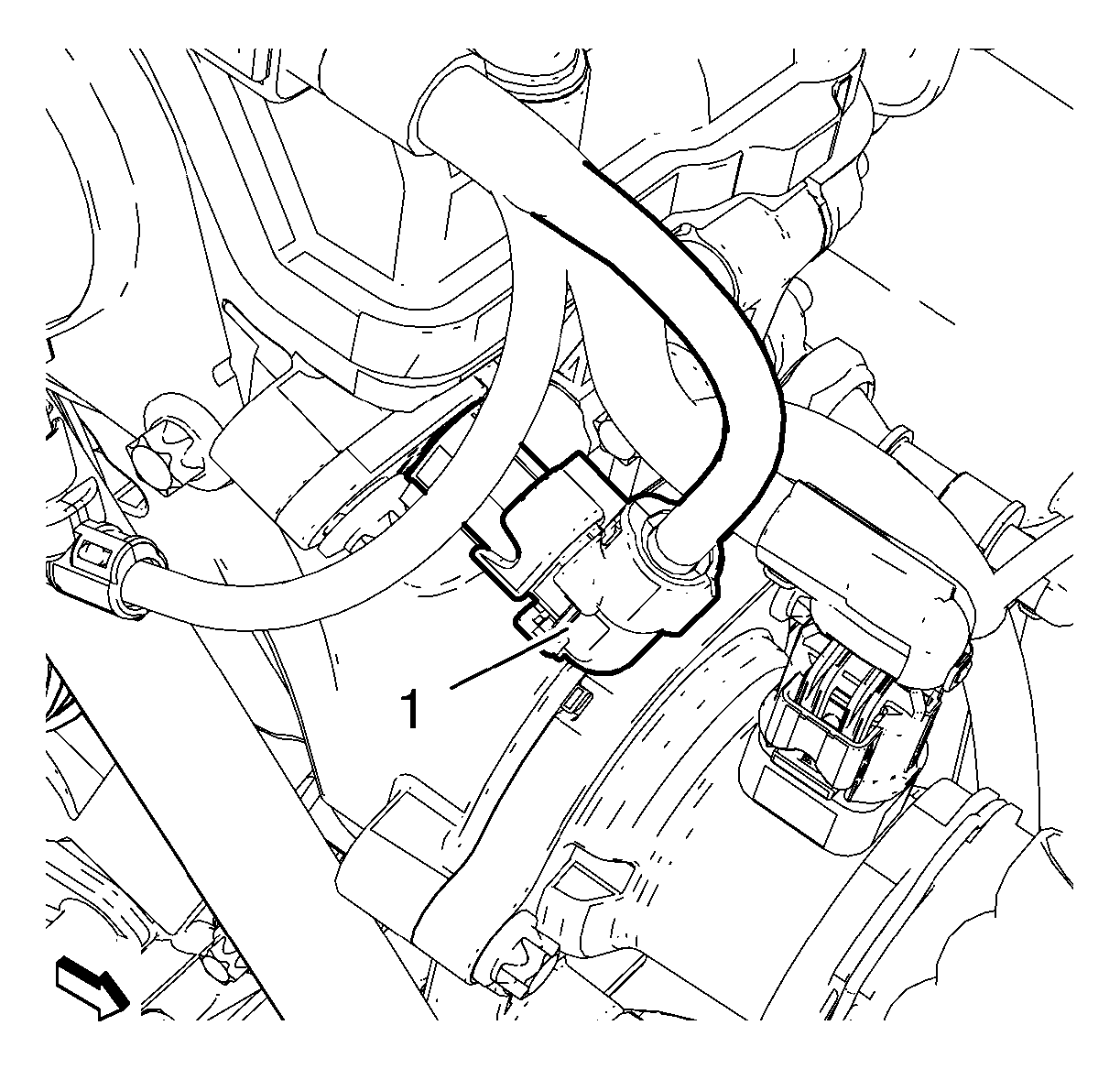

    3. Fig 2: Camshaft Position Sensor Wiring Harness Plug
    GM2191800Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Graphic shows exhaust camshaft position sensor. Use same procedure for Intake camshaft position sensor.

  3. Connect the camshaft position sensor wiring harness plug (1).
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  5. After replacement of an camshaft position sensor, use a scan tool to speed up learn function. Refer to K20 Engine Control Module: Programming and Setup
