Air Cleaner Assembly Replacement

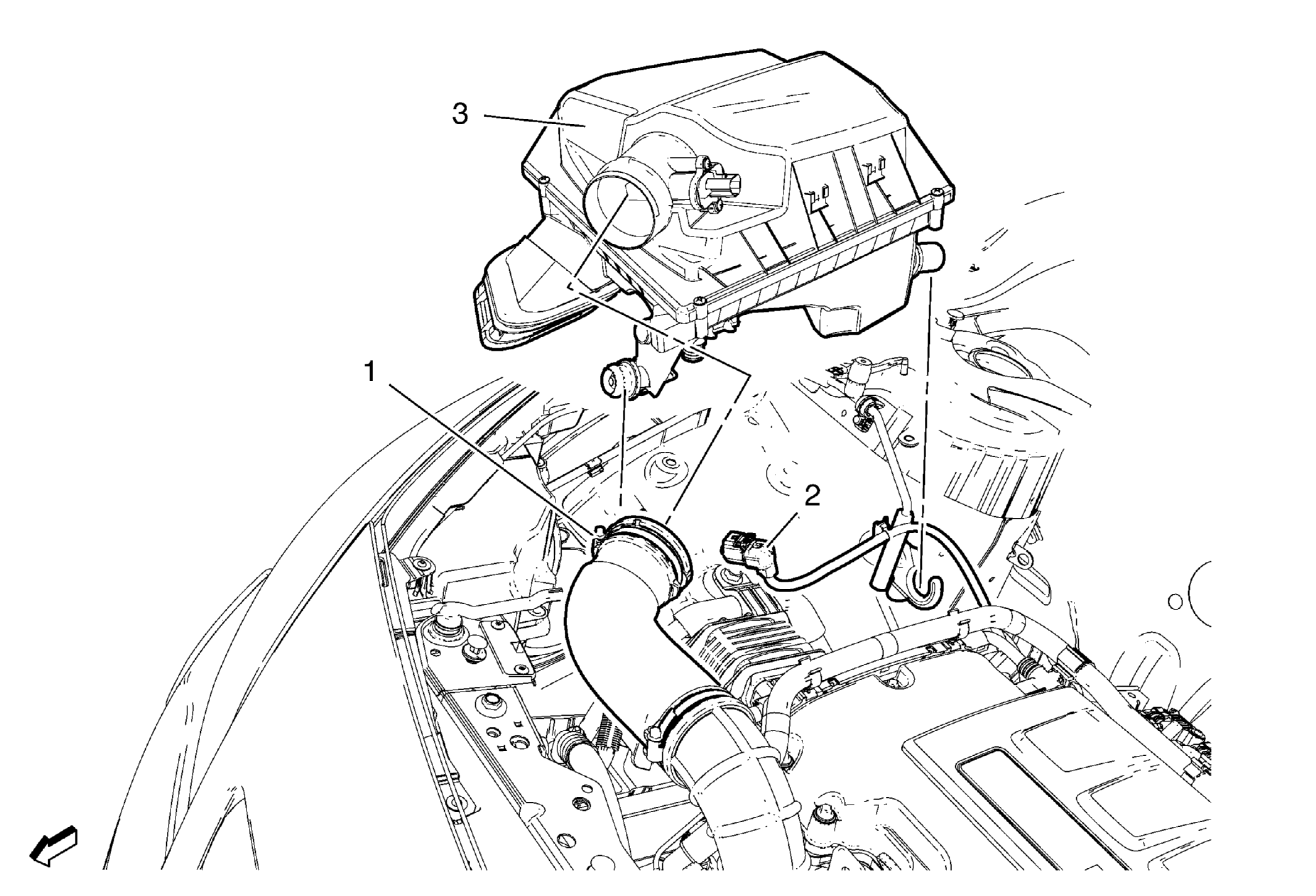

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct Clamp. Procedure Loosen clamp and remove air cleaner outlet duct from air cleaner assembly.
2	Mass Flow Sensor Procedure Disconnect mass air flow sensor wiring harness plug from mass air flow sensor and unclip from retainer clip.
3	Air Cleaner Assembly
