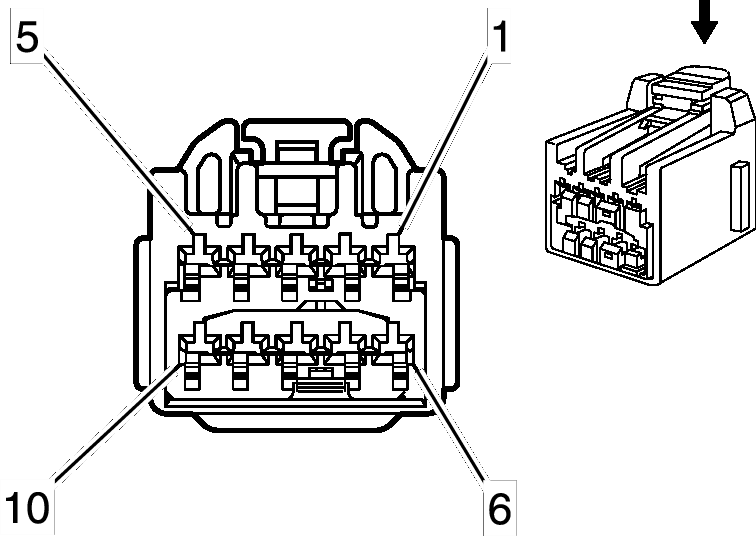

K61 Sunroof Control Module
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 7283-5533-40
- Service Connector: 22708788
- Description: 10-Way F YESC USCAR Class II Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578891 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13578892 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BK |
550 |
Ground |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
VT/BN |
641 |
Run Ignition 3 Voltage |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
GN/WH |
100 |
Sunroof Switch Open Signal |
I |
- |
| 6 |
1.5 |
RD/WH |
640 |
Battery Positive Voltage |
II |
- |
| 7 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
BU/WH |
110 |
Sunroof Switch Close Signal |
I |
- |
