Front Side Door Window Regulator Motor Replacement

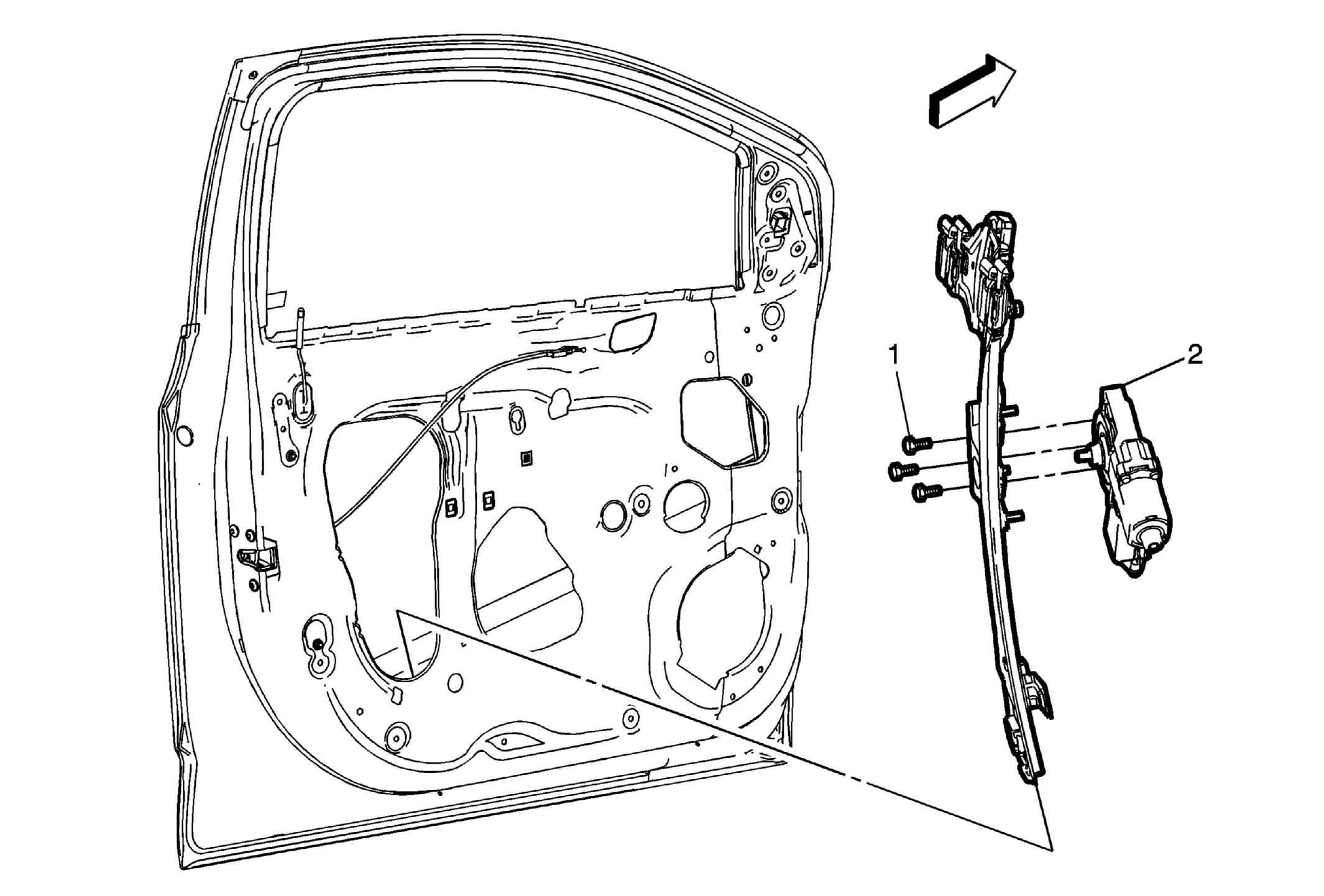

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door window regulator. Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Disconnect the electric connector from the regulator motor. Tighten 5 N.m (44 lb in)
2	Front Side Door Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Preliminary Procedure Remove the front side door window regulator. Front Side Door Window Regulator Replacement .

Front Side Door Window Regulator Motor Screw (Qty: 3)

CAUTION:

Procedure

Tighten
5 N.m (44 lb in)

Front Side Door Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim.
