Radio Replacement (With U58)

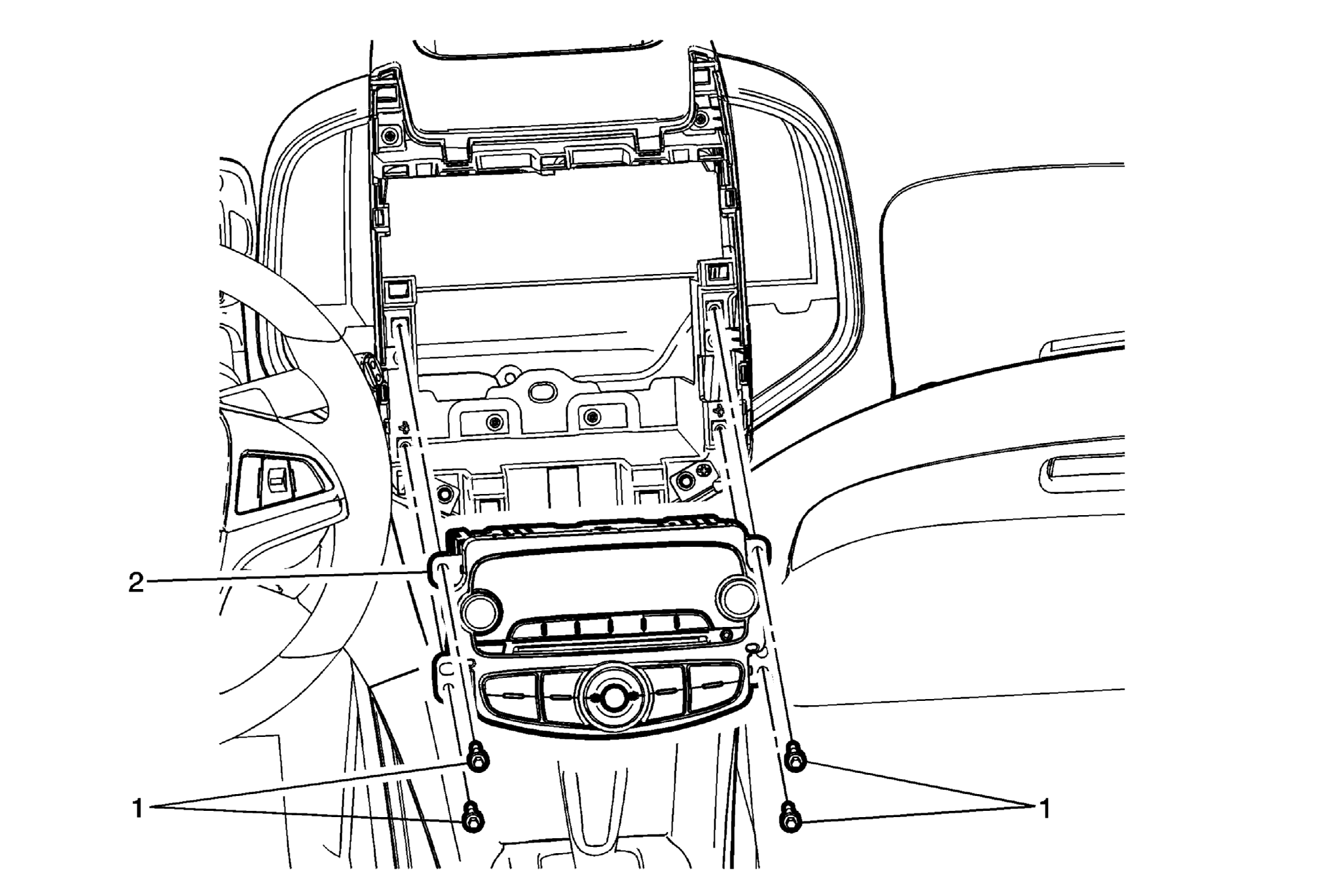

Fig 1: Radio & Bolts (With US8)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .
1	Radio Bolts (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .

Radio Bolts (Qty: 4)

CAUTION:

Radio Assembly

Procedure
