Secondary Air Injection Pump Replacement

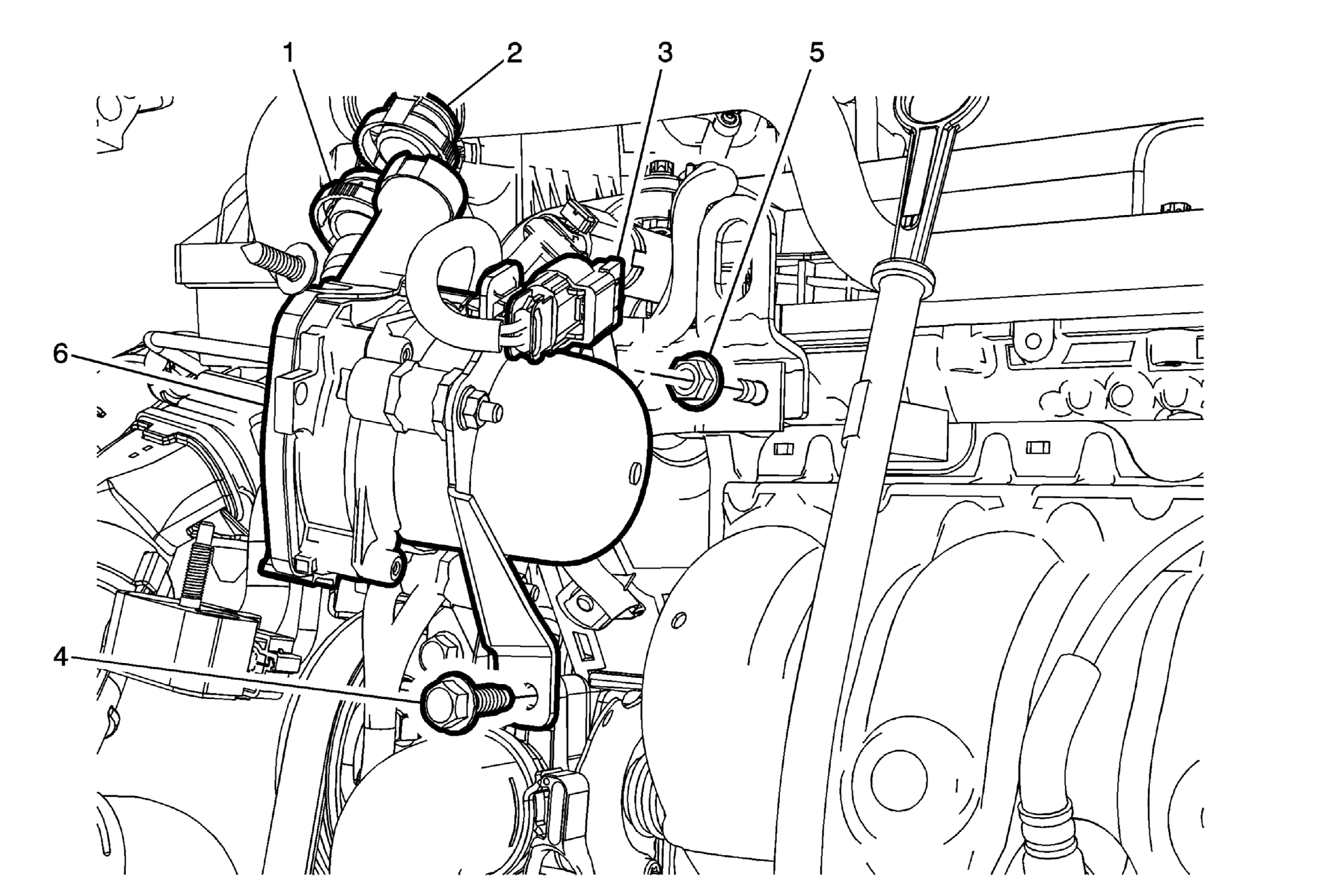

Fig 1: Secondary Air Injection Pump & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Air Injection Pump Inlet Pipe NOTE: Squeeze the retainer on opposite sides to release.
2	Secondary Air Injection Pump Outlet Pipe NOTE: Squeeze the retainer on opposite sides to release.
3	Secondary Air Injection Pump Electrical Connector
4	Secondary Air Injection Pump Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
5	Secondary Air Injection Pump Nut Tighten 22 N.m (16 lb ft)
6	Secondary Air Injection Pump
