Secondary Air Injection Check Valve Replacement

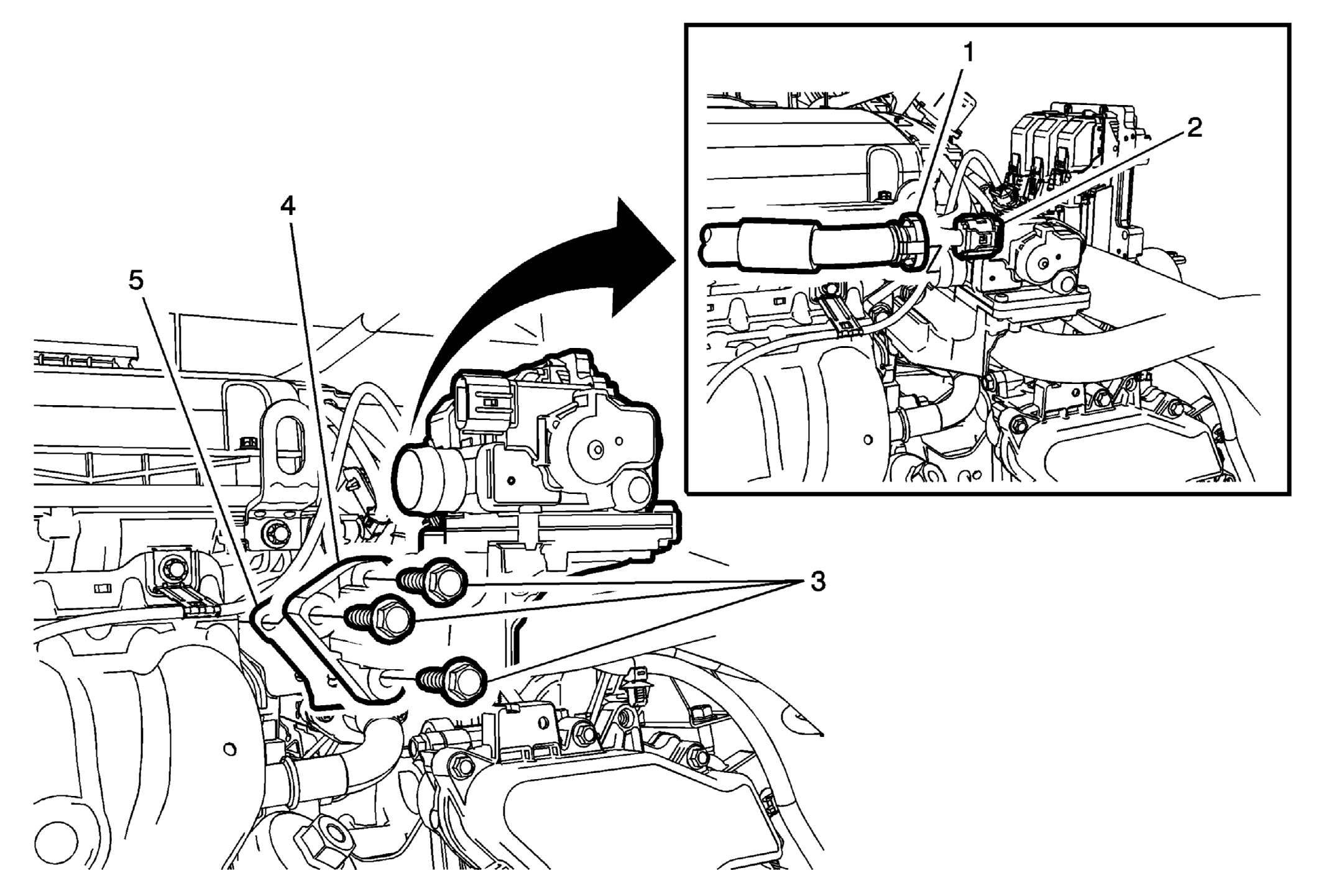

Fig 1: Secondary Air Injection Check Valve & Mounting Components
GM2830855Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Secondary Air Injection Outlet Pipe
NOTE:

Squeeze the retainer on opposite sides to release.
2 Secondary Air Injection Check Valve Electrical Connector
3 Secondary Air Injection Check Valve Bolts (Qty: 3).
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
4 Secondary Air Injection Check Valve
5 Secondary Air Injection Check Valve Gasket
