Installation Procedure

  1. Code the NEW ignition lock cylinder. Lock Cylinder Coding - Ignition

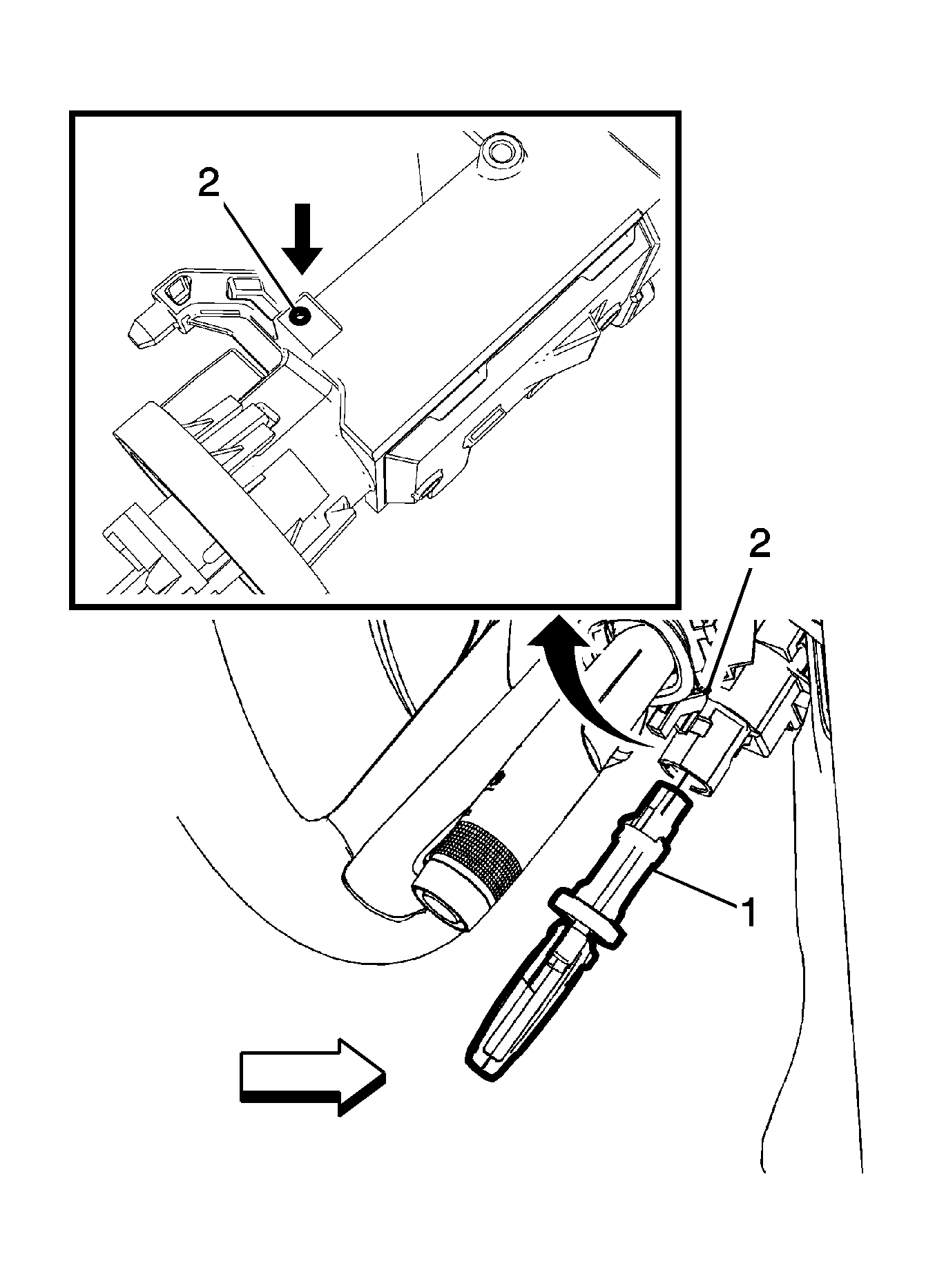

    2. Fig 1: Identifying Access Hole And Ignition Lock Cylinder
    GM3610628Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ignition key and ignition lock cylinder MUST be turned to the RUN position to push the cylinder into the ignition and start switch housing.

  2. Push the ignition lock cylinder (1) into the ignition and start switch housing.
  3. Turn the ignition key to the LOCK position.
  4. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement
  5. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
