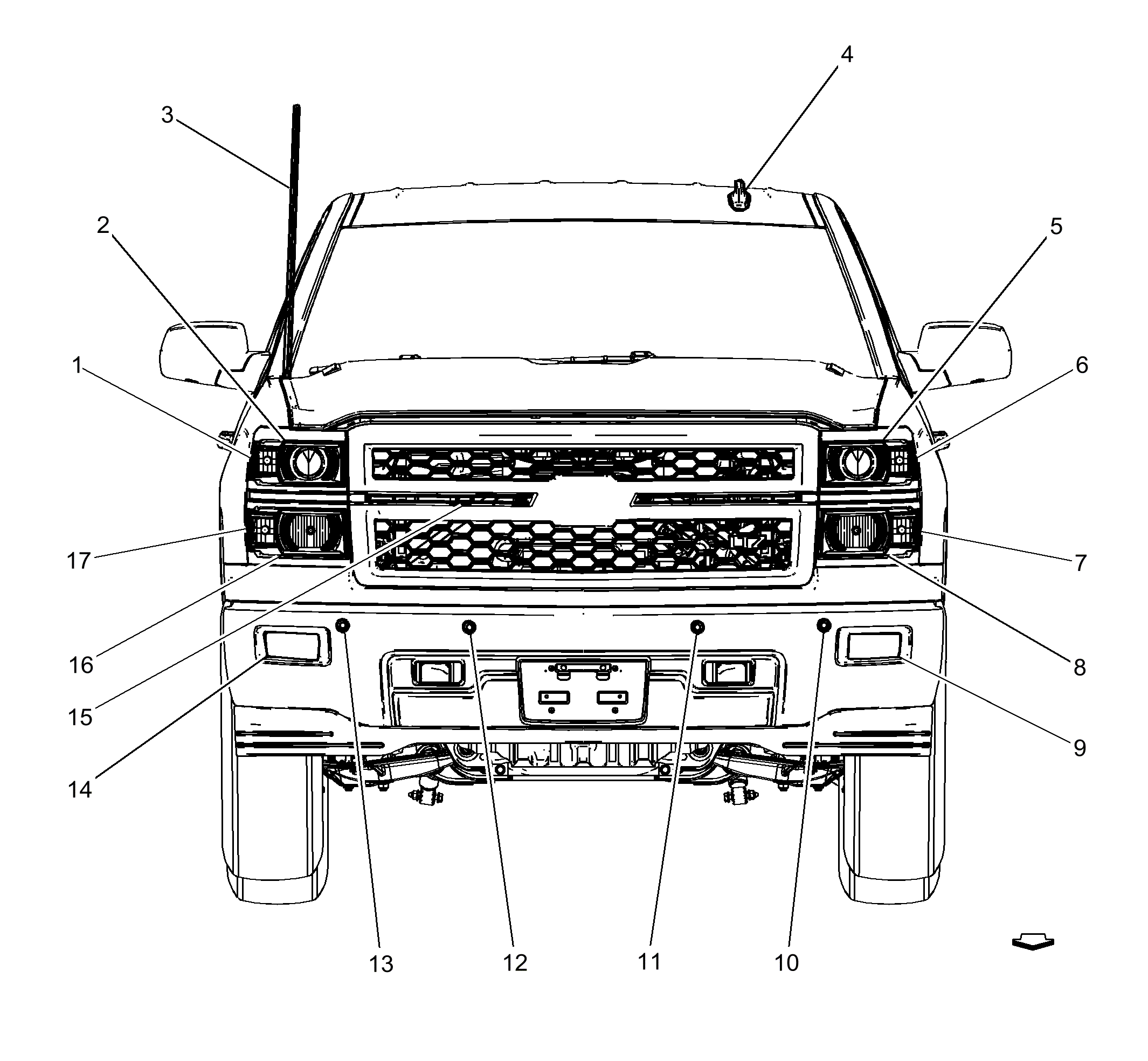

Front of Vehicle (Chevrolet) Components
Front of Vehicle (Chevrolet) Components
| Items |
|---|
| 1. E4T Park/Turn Signal Lamp - Right Upper (X88) |
| 2. E4H Headlamp - Right Low Beam |
| 3. T4M Radio Antenna |
| 4. T4G Cellular Phone, Navigation, and Digital Radio Antenna |
| 5. E4G Headlamp - Left Low Beam |
| 6. E4S Park/Turn Signal Lamp - Left Upper (X88) |
| 7. E4Q Park/Turn Signal Lamp - Left Lower (X88) |
| 8. E4E Headlamp - Left High Beam (X88) |
| 9. E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (-UD5)E29LF Fog Lamp - Left Front (UD5) |
| 10. B78A Front Object Sensor - Left Outer (UD5) |
| 11. B78C Front Object Sensor - Left Middle (UD5) |
| 12. B78D Front Object Sensor - Right Middle (UD5) |
| 13. B78B Front Object Sensor - Right Outer (UD5) |
| 14.E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (-UD5) |
| 15. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (1500)B9 Ambient Air Temperature Sensor (2500/3500) |
| 16. E4F Headlamp - Right High Beam (X88) |
| 17. E4R Park/Turn Signal Lamp - Right Lower (X88) |
