Wireless Charging System Module Replacement

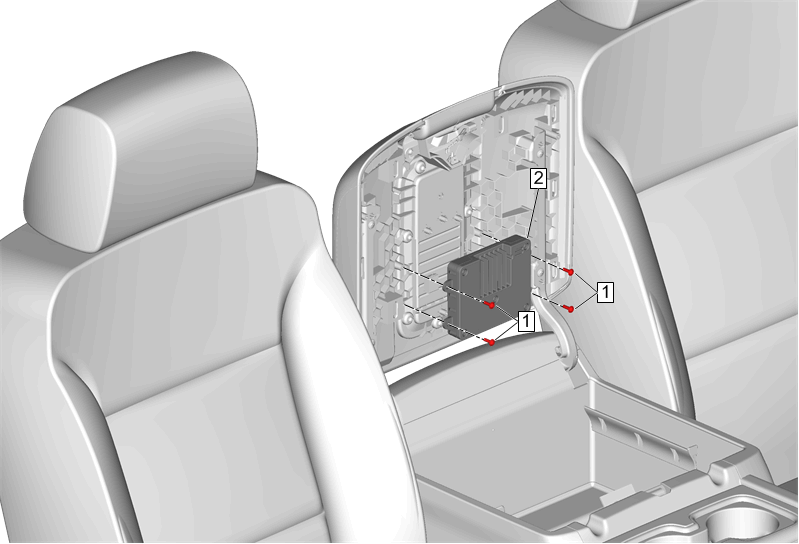

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Armrest Hinge Cover Replacement
1	Wireless Charging System Module Bolt CAUTION: Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Wireless Charging System Module Procedure  Disconnect the electrical connector.
