Front Side Door Window Regulator Handle Replacement
Front Side Door Window Regulator Handle Replacement

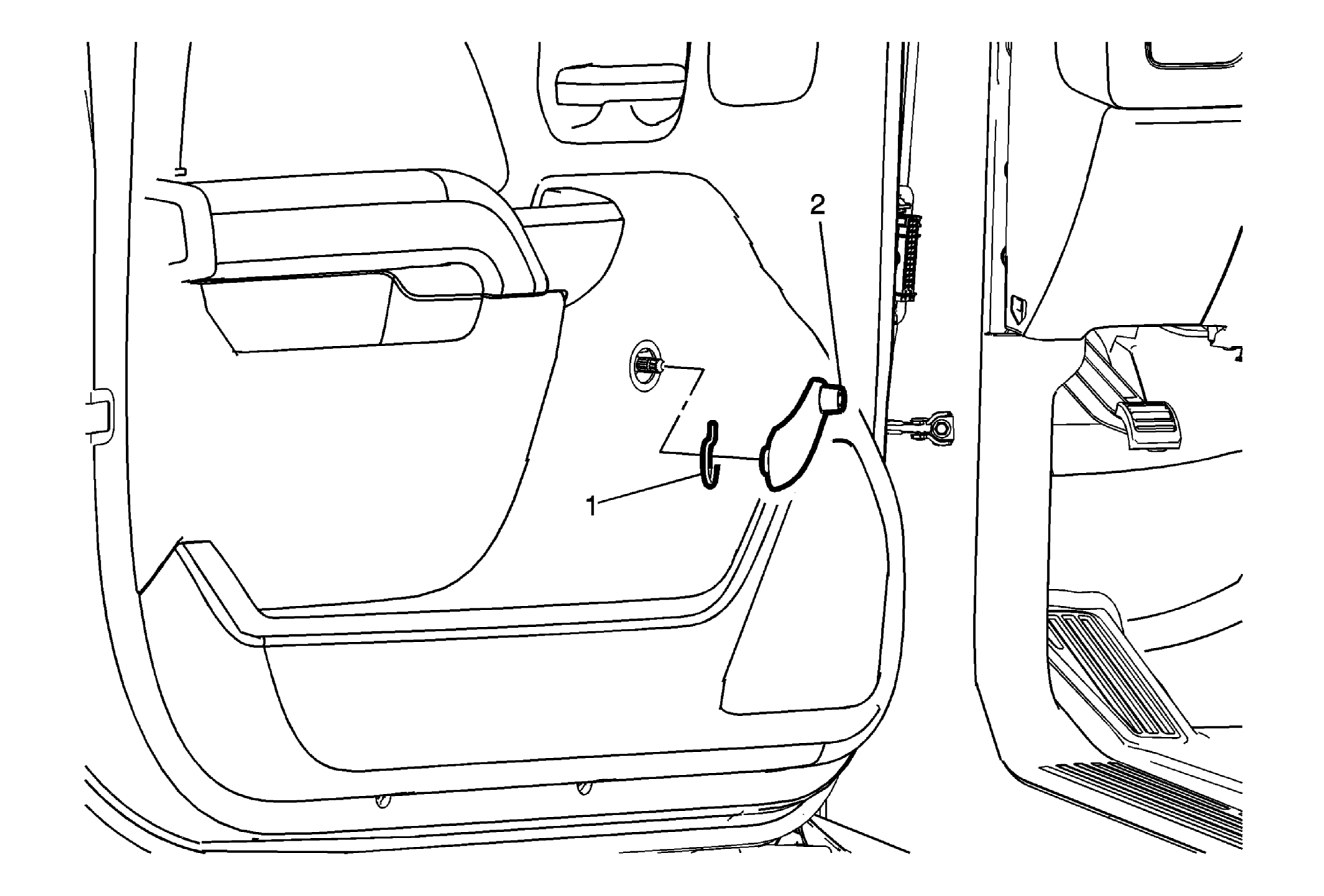

Fig 1: Front Side Door Window Regulator Handle
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Side Door Window Regulator Handle Retainer Clip
Procedure
Using a suitable tool, remove the front side door window regulator handle clip.
2
Front Side Door Window Regulator Handle
