Ignition Lock Cylinder Case Replacement

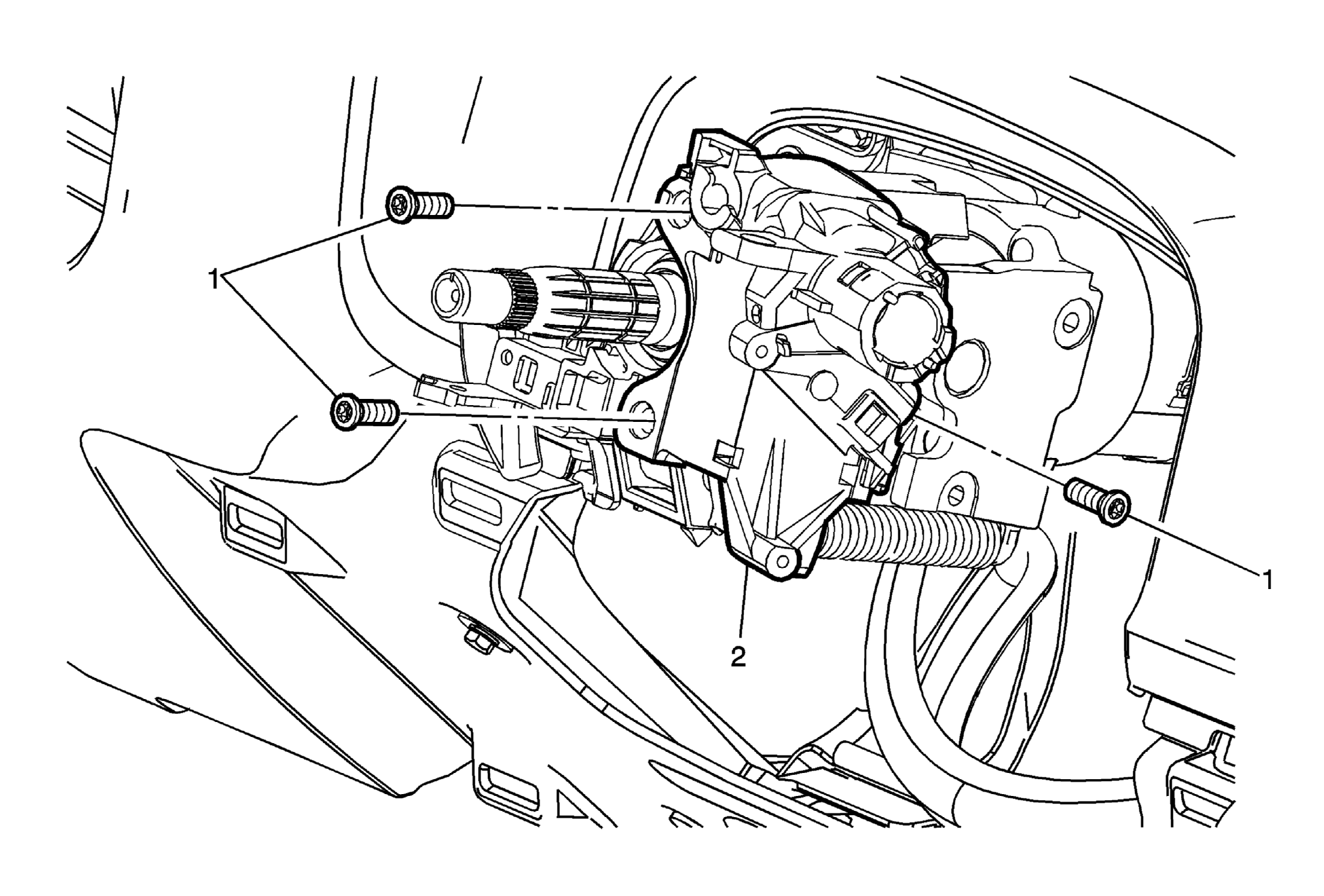

Fig 1: Ignition Lock Cylinder Case

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures If equipped, disconnect the park lock cable from the ignition lock cylinder case. Transmission Control Replacement Theft Deterrent Module Replacement Ignition and Start Switch Replacement Turn Signal Switch Cancel Cam Replacement Turn Signal Switch Replacement
1	Ignition Lock Cylinder Case Bolt <p01> CAUTION: Refer to Fastener Caution . Tighten 7 (62 lb in)
2	Ignition Lock Cylinder Case

Callout

Component Name

Preliminary Procedures

Ignition Lock Cylinder Case Bolt <p01>

CAUTION:

Tighten
7 (62 lb in)

Ignition Lock Cylinder Case
