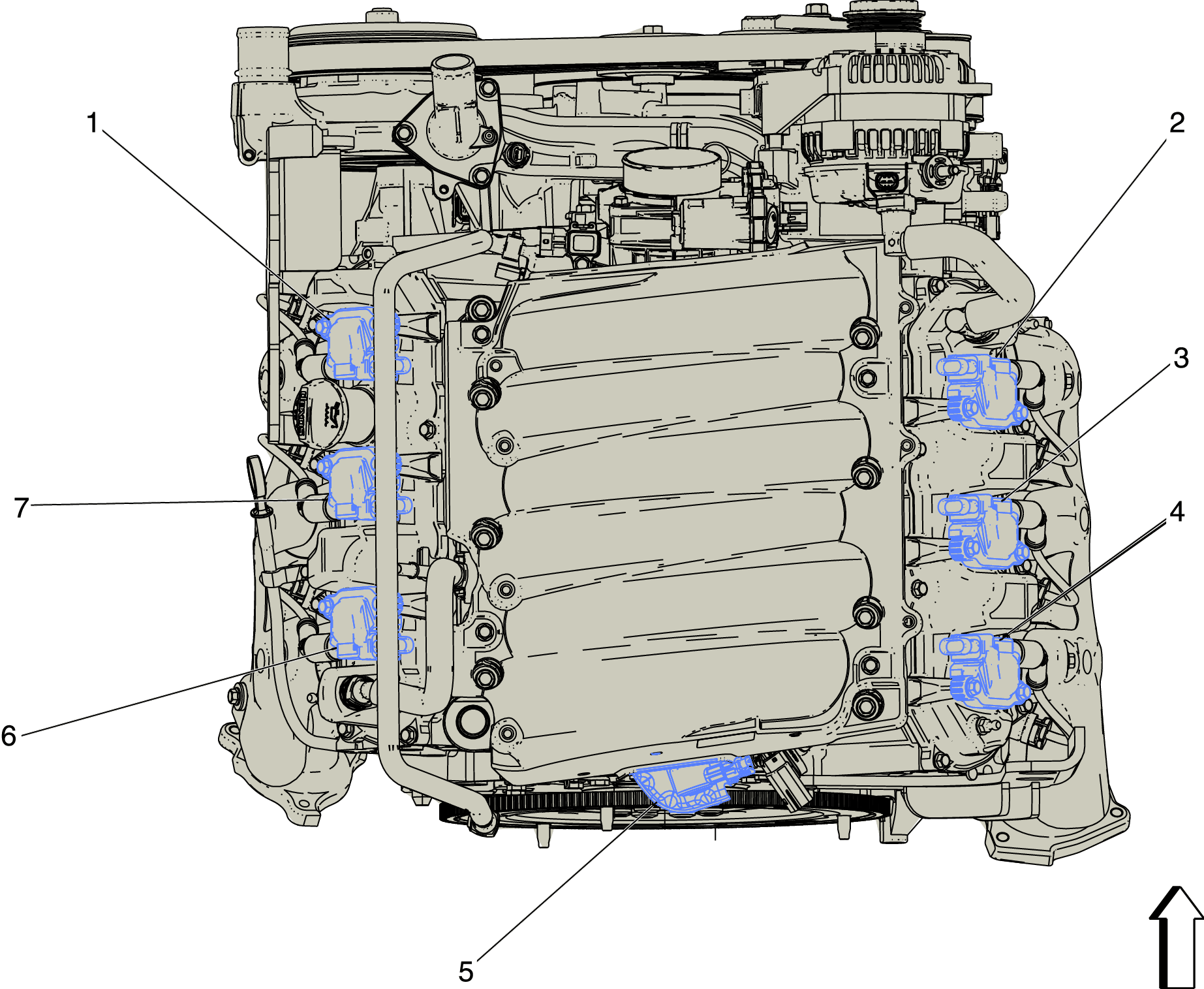

Top of Engine Components (LV3)
Top of Engine Components (LV3)
| Items |
| 1. T8A Ignition Coil 1 (except L5P) |
| 2. T8B Ignition Coil 2 (except L5P) |
| 3. T8D Ignition Coil 4 (except L5P) |
| 4. T8F Ignition Coil 6 (except L5P) |
| 5. G18 High Pressure Fuel Pump (1500) |
| 6. T8E Ignition Coil 5 (except L5P) |
| 7. T8C Ignition Coil 3 (except L5P) |
Courtesy of GENERAL MOTORS COMPANY
