Installation Procedure

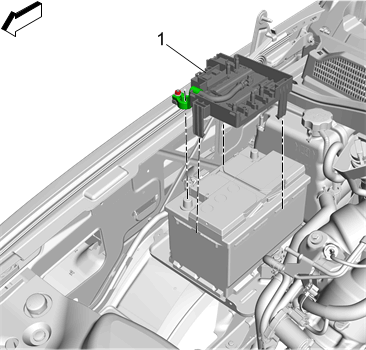

    Fig 1: Battery Distribution Engine Compartment Fuse Block
    GM4543371Courtesy of GENERAL MOTORS COMPANY
  1. Battery Distribution Engine Compartment Fuse Block<p01> - Install

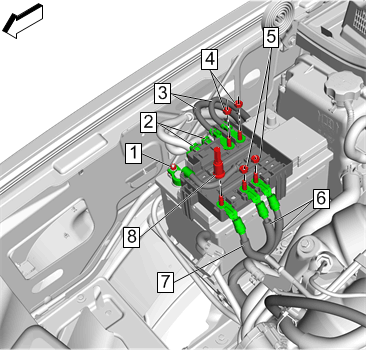

    2. Fig 2: Battery Distribution Engine Compartment Fuse Block Attaching Components
    GM4543369Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  2. Install the following to the battery distribution engine compartment fuse block:
    • Battery Positive Cable<p01><p01>
    • Battery Positive Junction Block Cable Nut<p01>Tighten <p01> 15 (11 lb ft)
    • Generator Battery Control Wiring Harness<p01><p01>
    • Battery Positive Junction Block Cable Nut<p01>Tighten <p01>15 (11 lb ft)
    • Starter Solenoid Cable<p01>
    • Battery Positive Junction Block Cable Barrel Nut <p01>Tighten 15 (11 lb ft)
    • { If equipped }Electrical Connector<p01><p01>
  3. Battery Positive Post Clamp Nut<p01> - Tighten 6 (53 lb in)

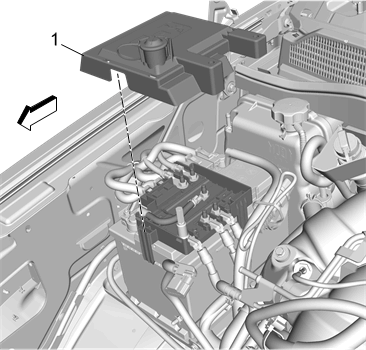

    4. Fig 3: Fuse Block Cover
    GM4542874Courtesy of GENERAL MOTORS COMPANY
  4. Fuse Block Cover<p01> - Install

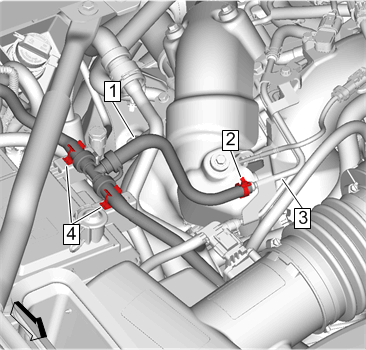

    5. Fig 4: Radiator Surge Tank Inlet Hose And Retainers
    GM4534548Courtesy of GENERAL MOTORS COMPANY
  5. Retainer<p01> - Engage <p01>
  6. Install the right hand front fender rear upper brace. Front Fender Rear Upper Brace Replacement (L5P)
  7. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (L5P)
