Installation Procedure

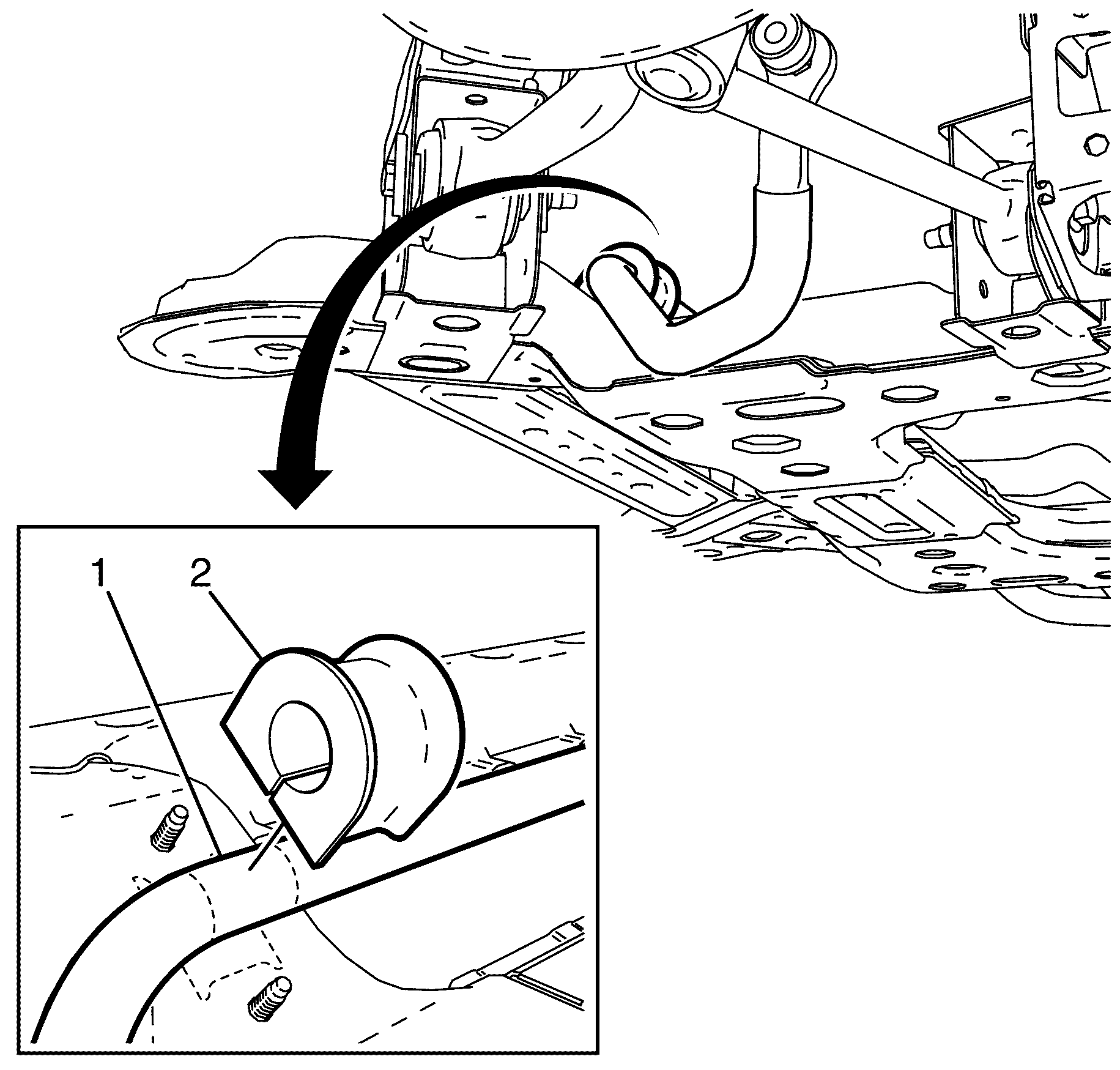

Fig 1: Stabilizer Bar & Insulator

Courtesy of GENERAL MOTORS COMPANY

Install the appropriate front stabilizer shaft insulator (2) on the front stabilizer shaft (1).

Fig 2: Stabilizer Bar Insulator Bracket To Subframe Retaining Nuts

Courtesy of GENERAL MOTORS COMPANY

Install the appropriate front stabilizer shaft insulator clamp (2) on the front suspension frame (1).

CAUTION:

Refer to Fastener Caution .

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Install the NEW front stabilizer shaft insulator clamp nuts (3) on both sides of the front stabilizer shaft and tighten to 37 N.m (27 lb ft).
