Installation Procedure
- Apply grease evenly and ensure complete coverage to the steering knuckle bearing pilot bore only. Adhesives, Fluids, Lubricants, and Sealers

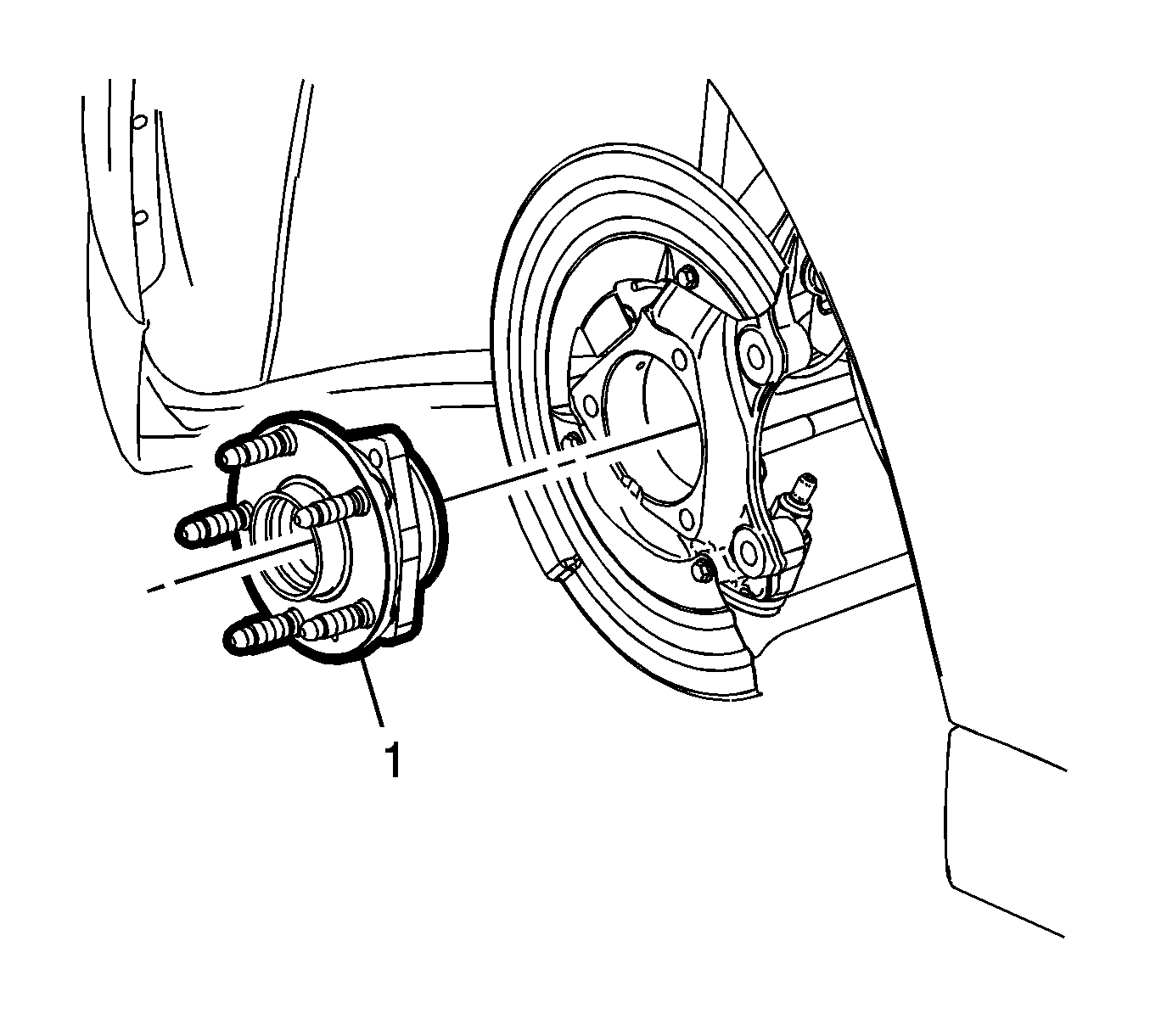

- Position the front wheel bearing and hub assembly (1) on the steering knuckle.

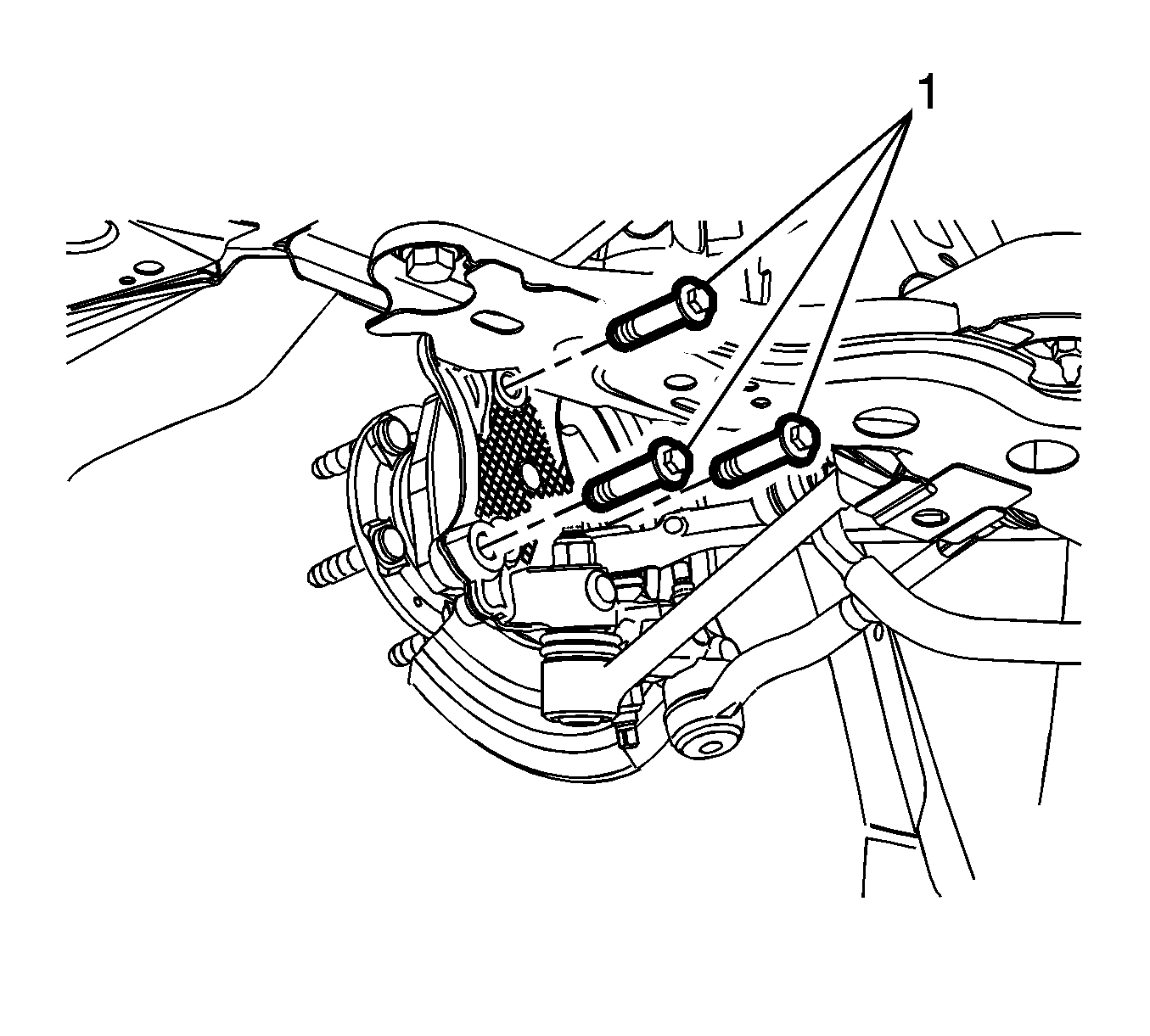

- Install the NEW front wheel bearing and hub assembly bolts (1) and tighten to:
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (20 - 35 degrees)
- Install Front Wheel Speed Sensor at Steering Knuckle - Front Wheel Speed Sensor Replacement
- Install Front Brake Rotor - Front Brake Rotor Replacement
NOTE:
Avoid applying grease to any other machined surfaces, holes, or threads. Ensure the drain channel at the bottom of the bore is not blocked with grease or debris.
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
