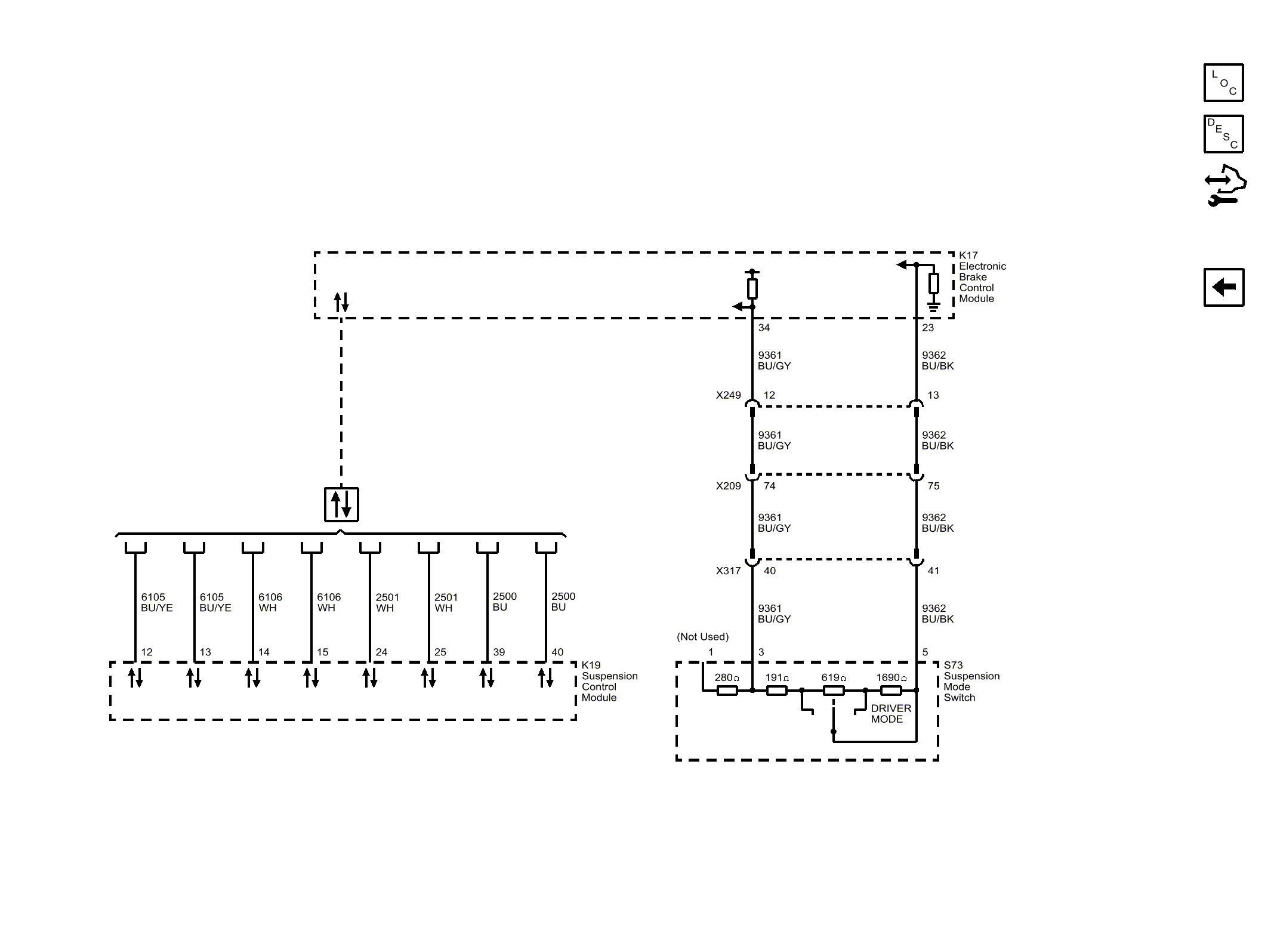

Home >> Chevrolet >> 2017 >> SS Standard Trans >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension Control System >> Schematic Wiring Diagrams >> Electronic Suspension Control Wiring Schematics >> Control Switch and Serial Data
