Engine Block Valley Cover Installation

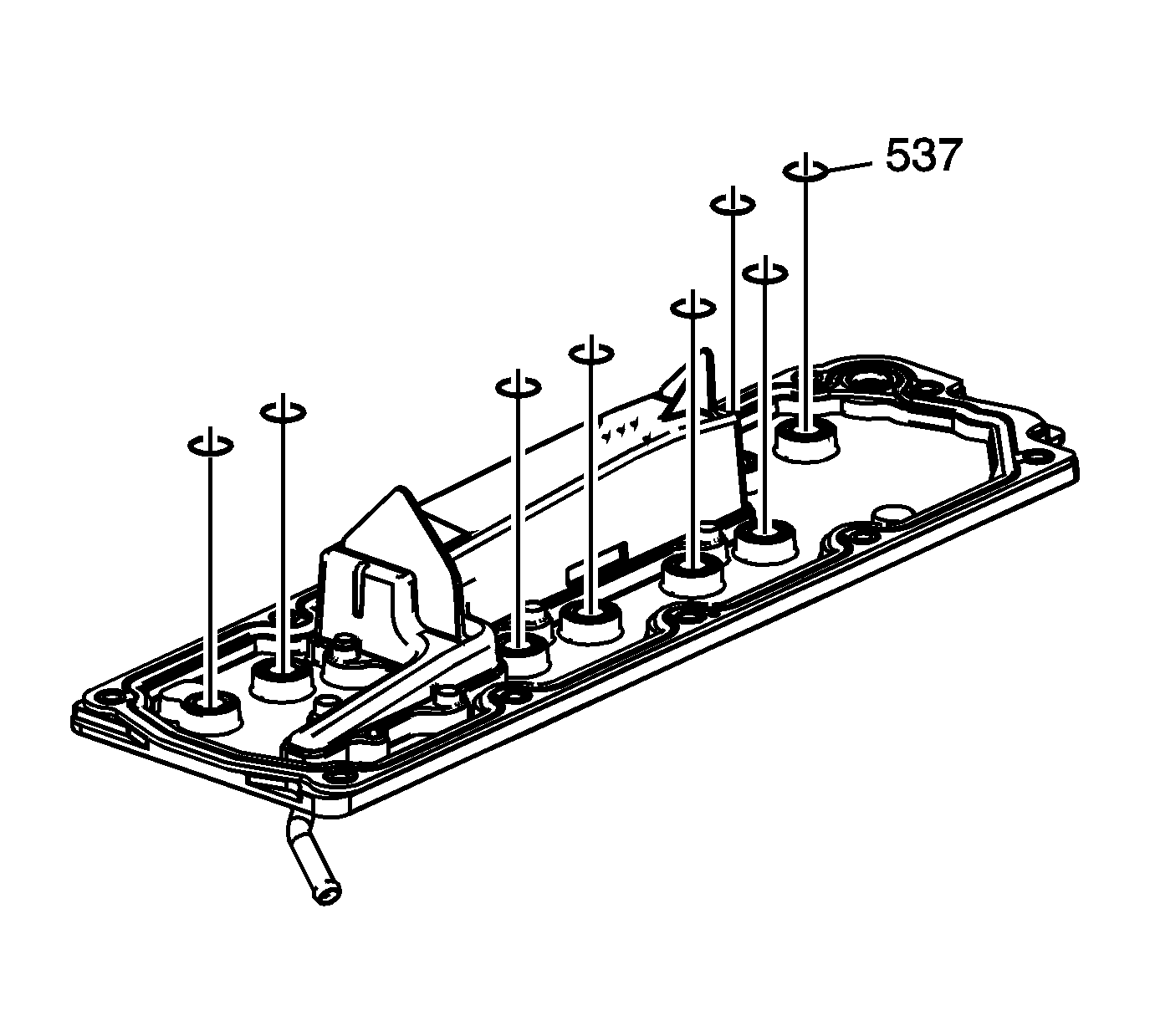

    Fig 1: Valley Cover Seals & Gasket
    GM1552536Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    All gasket surfaces should be free of oil or other foreign material during assembly.

  1. Lubricate the O-ring seals (537) with clean engine oil.
  2. Install the O-ring seals (537) to the cover.

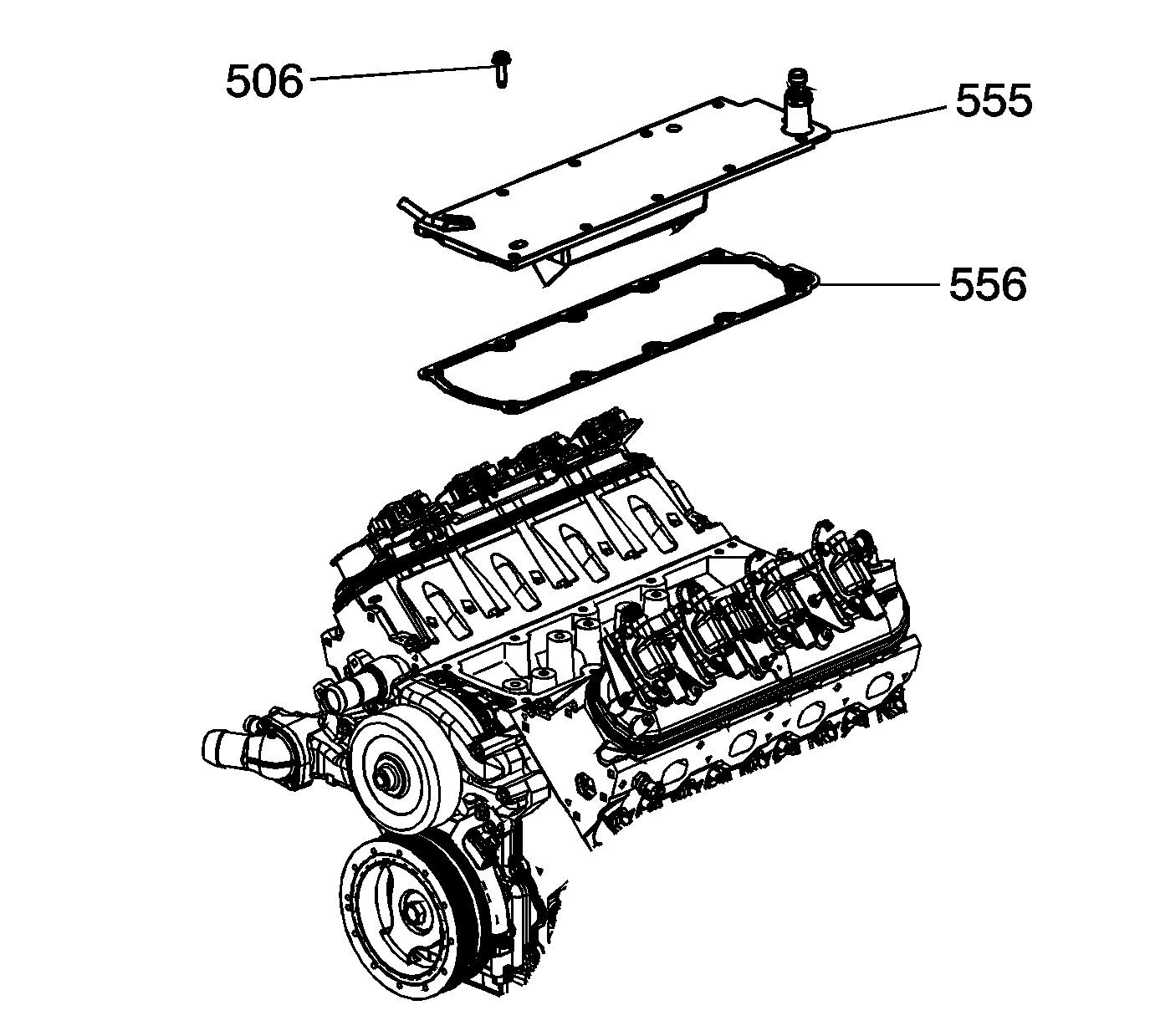

    3. Fig 2: Cover, Gasket, And Bolts
    GM1559897Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the cover (555), gasket (556), and bolts (506). Tighten the cover bolts to 25 N.m (18 lb ft).

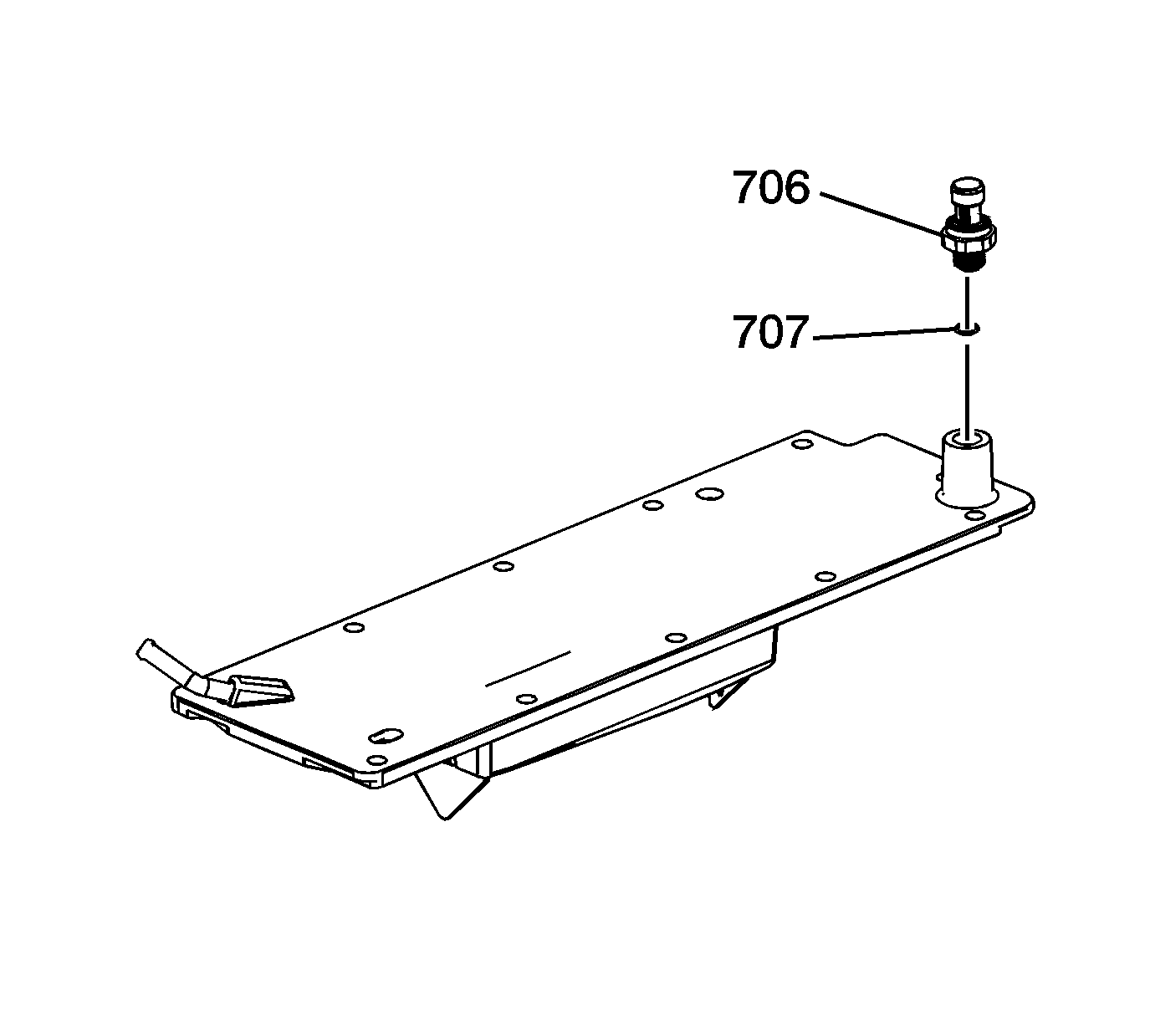

    4. Fig 3: Oil Pressure Sensor & Washer
    GM1408864Courtesy of GENERAL MOTORS COMPANY
  4. Apply sealant to the threads of the sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers  for recommended sealant.
  5. Install the oil pressure sensor (706) and sealing washer (707). Tighten the sensor to 35 N.m (26 lb ft).
