Removal Procedure

    WARNING:

    Refer to Safety Glasses Warning .

    WARNING:

    Refer to Radiator Cap Removal Warning .

  1. Ensure engine is below 50°C before removing the coolant pressure cap.
    2. Fig 1: Radiator Outlet Hose & Clamp
    GM3272427Courtesy of GENERAL MOTORS COMPANY
  2. Drain the cooling system. Cooling System Draining and Filling .
  3. Reposition the radiator outlet hose clamp (1) on the radiator outlet hose (2) using BO-38185  hose clamp pliers.
  4. Remove the radiator outlet hose (2) from the thermostat housing.
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  6. Remove the front bumper fascia extension. Front Bumper Fascia Extension Replacement .
    7. Fig 2: Radiator Outlet Hose & Clamp
    GM3272429Courtesy of GENERAL MOTORS COMPANY
  7. Reposition the radiator outlet hose clamp (1) on the radiator outlet hose (2) using BO-38185  hose clamp pliers.
  8. Remove the radiator outlet hose (2) from the radiator outlet pipe.

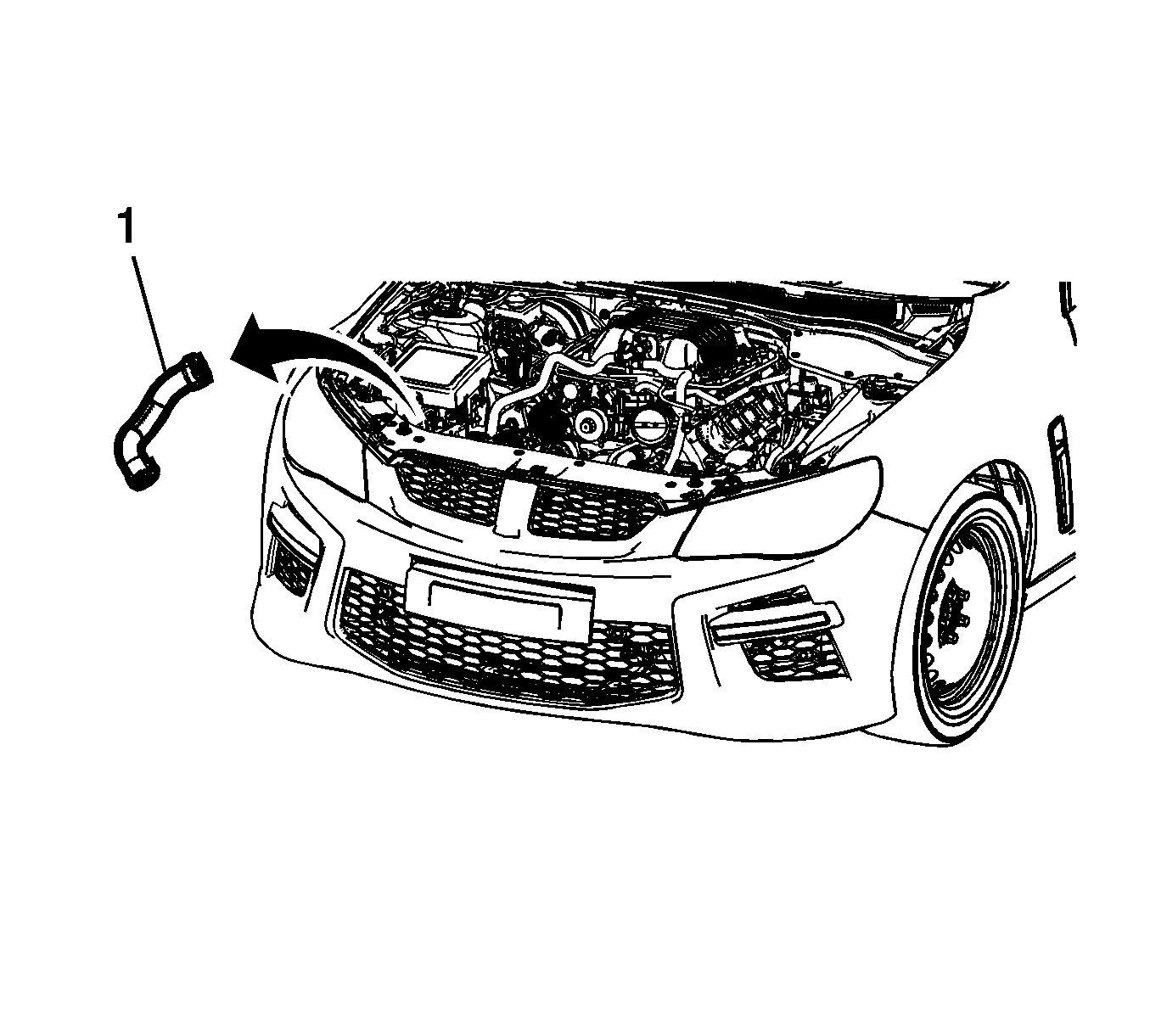

    9. Fig 3: Radiator Outlet Hose
    GM3272432Courtesy of GENERAL MOTORS COMPANY
  9. Remove the radiator outlet hose (1) from the vehicle.
