Installation Procedure

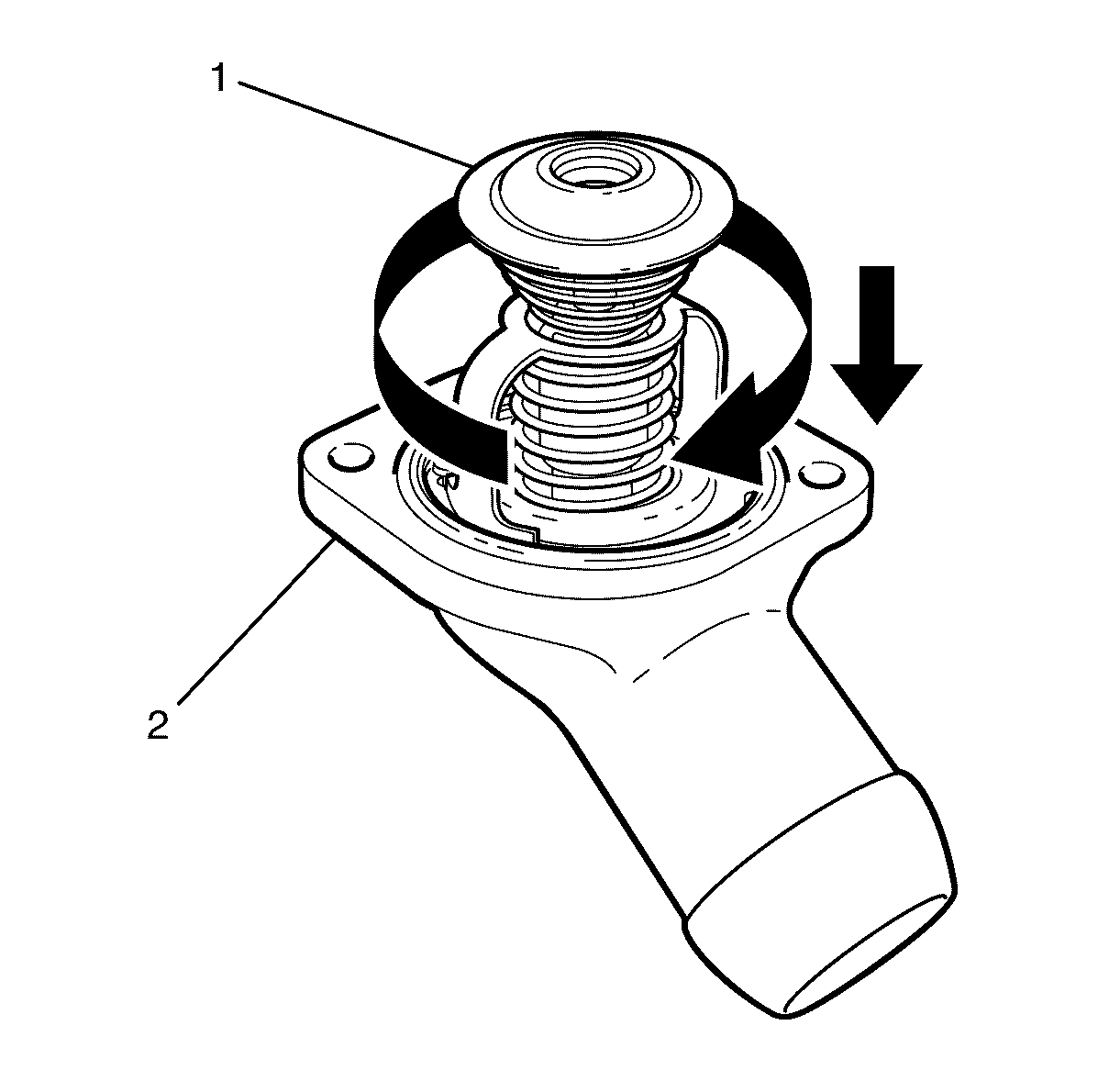

    Fig 1: Thermostat Housing & Assembly
    GM1949791Courtesy of GENERAL MOTORS COMPANY
  1. Make sure that the air bleed ball is not jammed by slightly shaking the assembly.
  2. Place the thermostat (1) assembly into the thermostat housing (2).
  3. Install the thermostat (1), by pressing and rotating clock wise until it locks into the thermostat housing (2).
