Engine Coolant Fan Motor Replacement

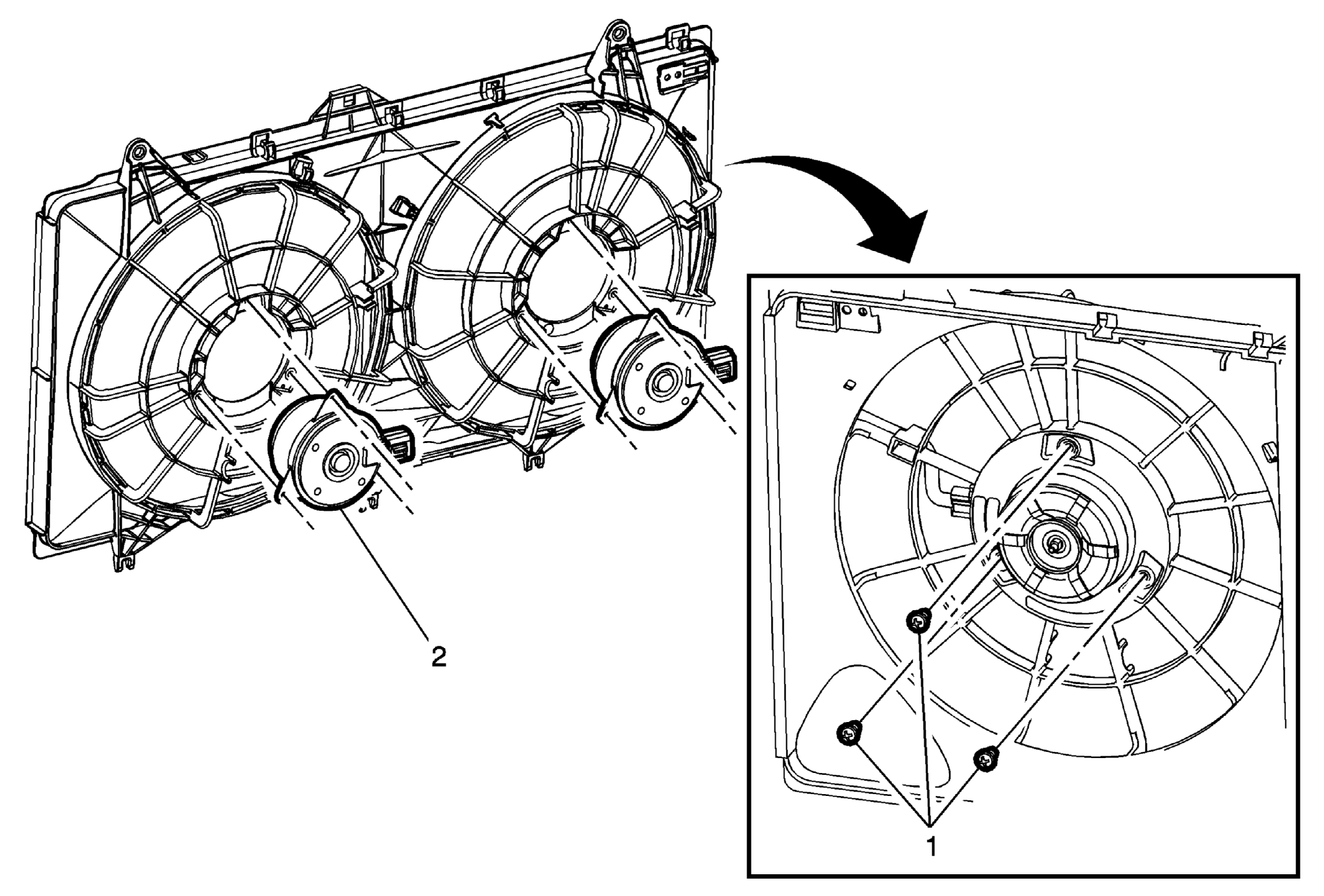

Fig 1: Engine Coolant Fan Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine coolant fan shroud from the vehicle. Refer to Engine Coolant Fan Shroud Replacement . Remove the fan blade. Refer to Fan Blade Replacement .
1	Engine Coolant Fan Motor Bolt (Qty: 3) Three Per Motor CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Engine Coolant Fan Motor (Qty: 2) Procedure Disconnect the engine coolant fan motor electrical harness from the engine coolant fan shroud. NOTE: The coolant fan motors are serviced separately.

Callout

Component Name

Preliminary Procedures

Remove the engine coolant fan shroud from the vehicle. Refer to Engine Coolant Fan Shroud Replacement .
Remove the fan blade. Refer to Fan Blade Replacement .

Engine Coolant Fan Motor Bolt (Qty: 3) Three Per Motor

CAUTION:

Tighten:
4 N.m (35 lb in)

Engine Coolant Fan Motor (Qty: 2)
Procedure
Disconnect the engine coolant fan motor electrical harness from the engine coolant fan shroud.

NOTE:

The coolant fan motors are serviced separately.
