Installation Procedure

    Fig 1: Bushing Cups
    GM4338996Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear sub frame bushing to the rear sub frame.

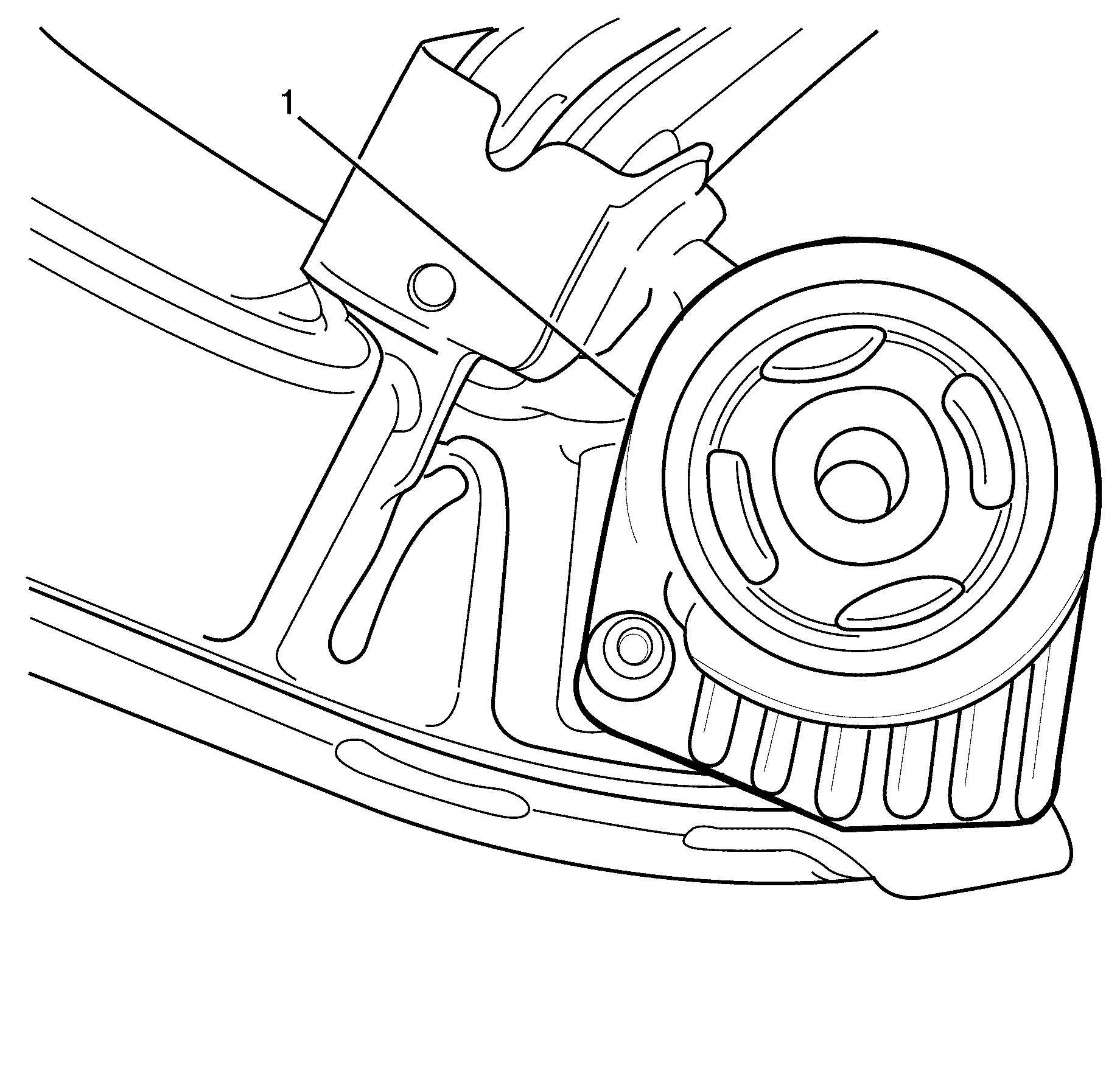

    2. Fig 2: Rear Sub Frame Insulator Rubber
    GM1943738Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear sub frame insulator rubber (1) to the rear sub frame.
  3. Install the rear suspension support. Rear Suspension Support Removal and Installation
