Installation Procedure

  1. Position the front wheelhouse liner to the vehicle.

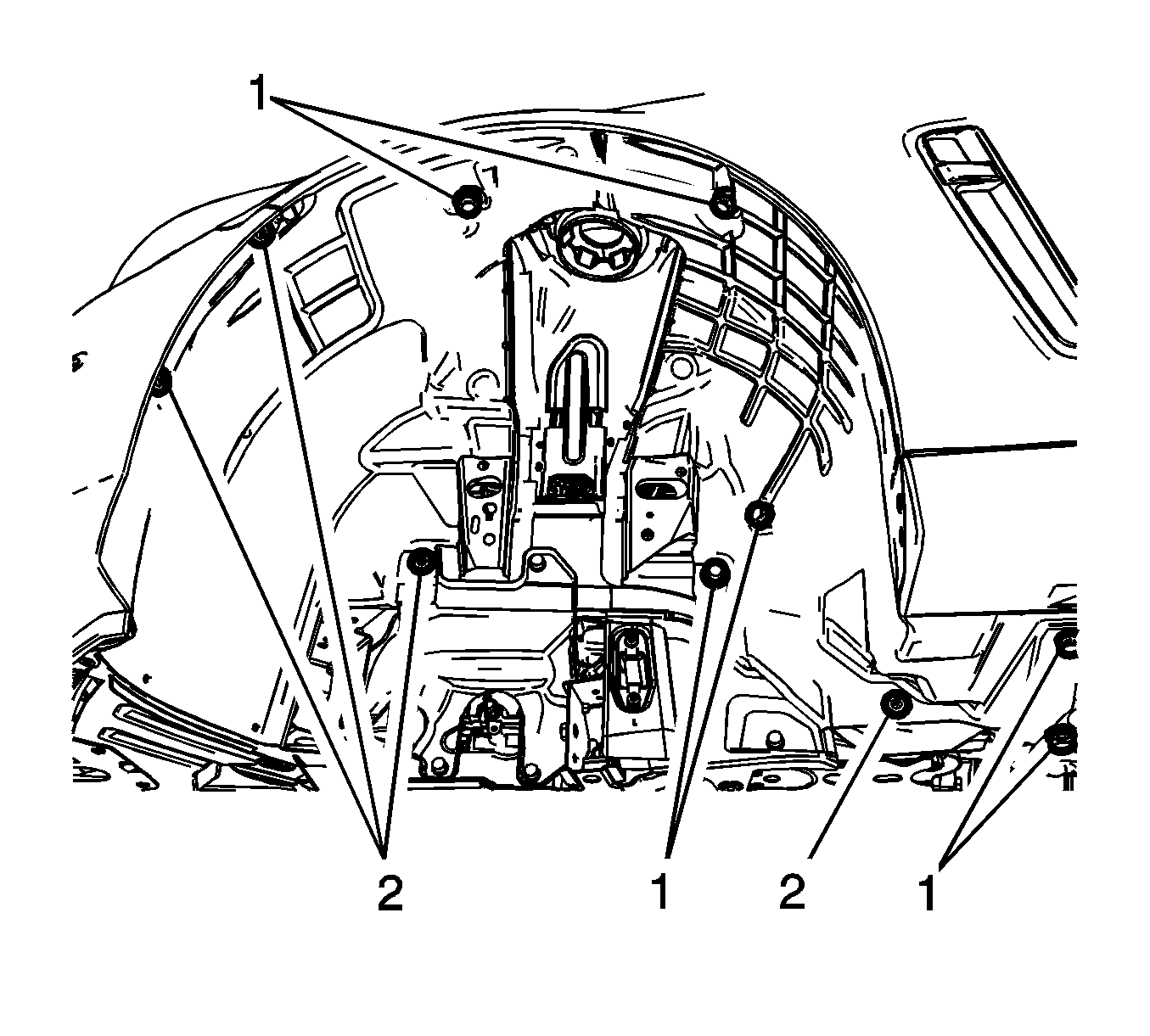

    2. Fig 1: Wheelhouse Retaining Screws & Scrivets
    GM2967318Courtesy of GENERAL MOTORS COMPANY
  2. Install the front wheelhouse liner to wheelhouse retaining scrivets (1).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the front wheelhouse liner to wheelhouse retaining screws (2) and tighten to 2 N.m (18 lb in).

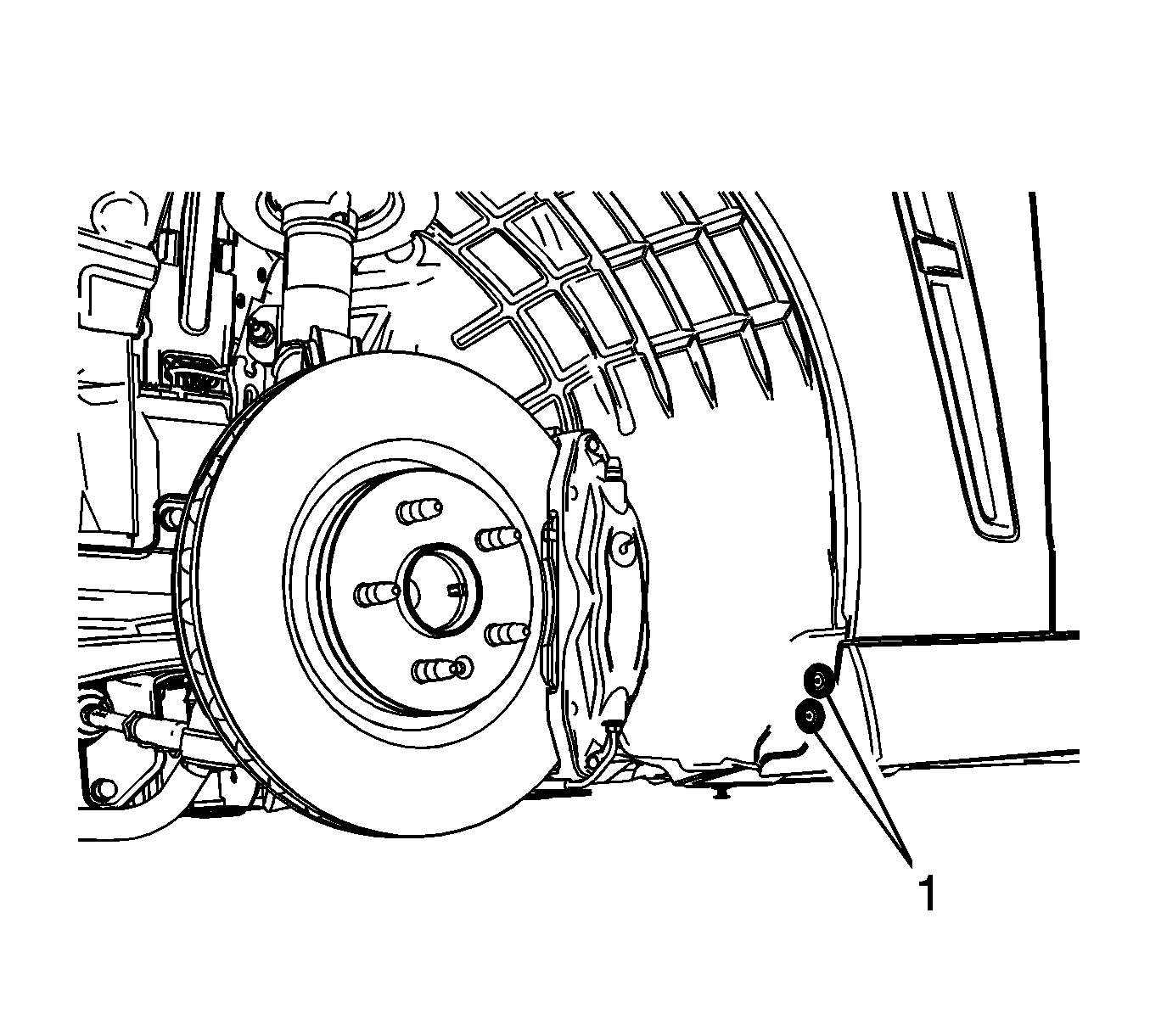

    4. Fig 2: Rocker Panel Retaining Screws
    GM2967315Courtesy of GENERAL MOTORS COMPANY
  4. Install the front wheelhouse liner to rocker panel retaining screws (1) and tighten to 2 N.m (18 lb in).

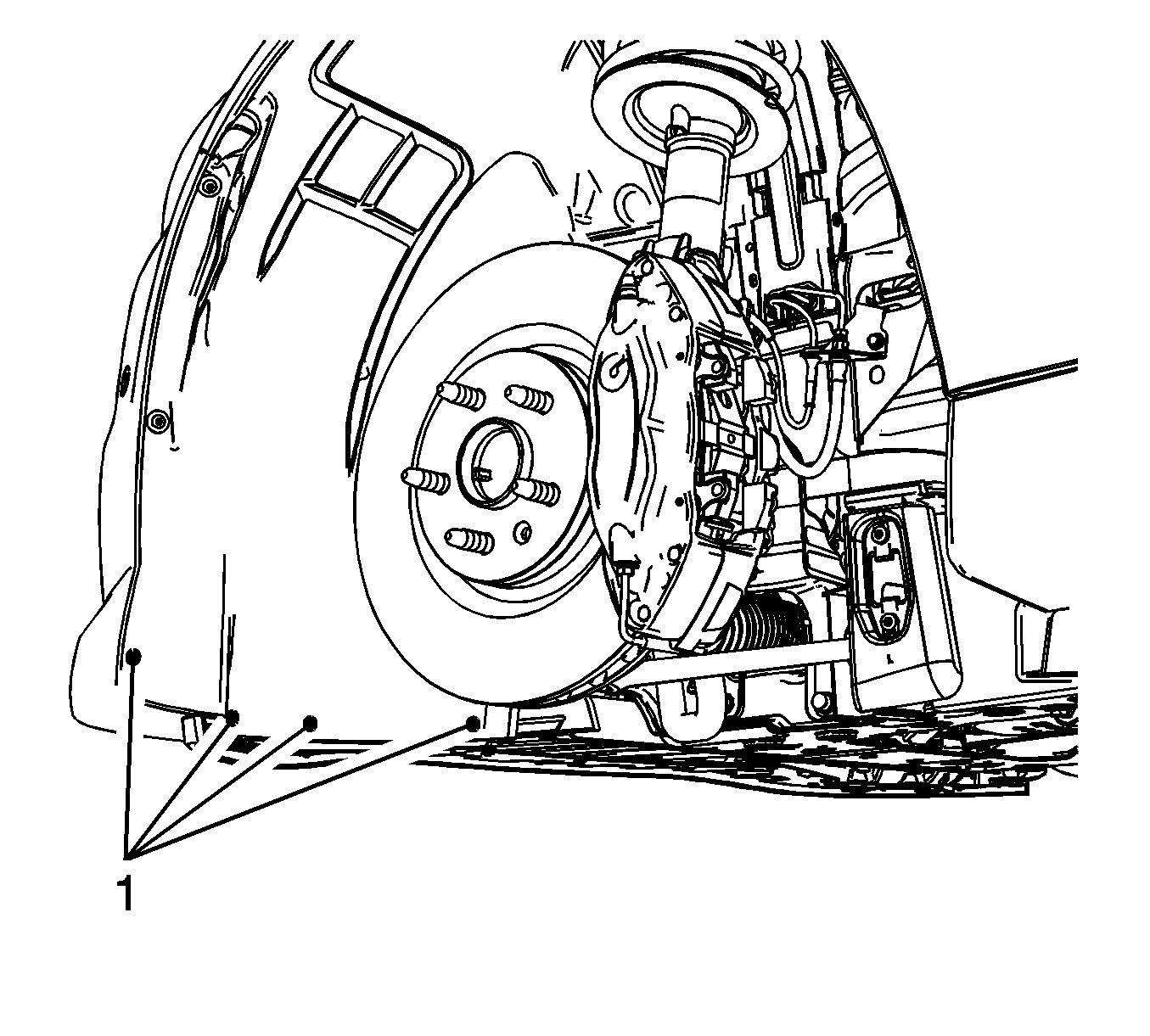

    5. Fig 3: Front Air Deflector Retaining Scrivets
    GM2967314Courtesy of GENERAL MOTORS COMPANY
  5. Install the front wheelhouse liner to the front air deflector retaining scrivets (1).
  6. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
