Instrument Panel Compartment Door Strut Replacement

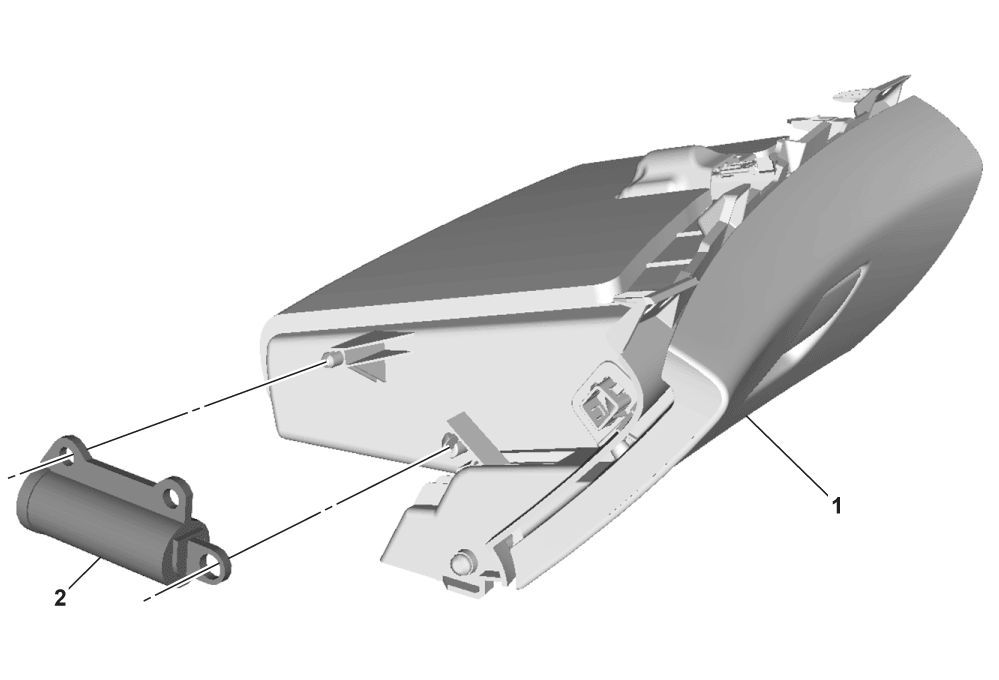

Fig 1: Instrument Panel Compartment Door Strut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Door Opening Frame. Refer to Instrument Panel Compartment Door Opening Frame Replacement .
2	Instrument Panel Compartment Door Strut Procedure  Use a suitable tool to release the pins securing the strut to the opening frame.
