Removal Procedure

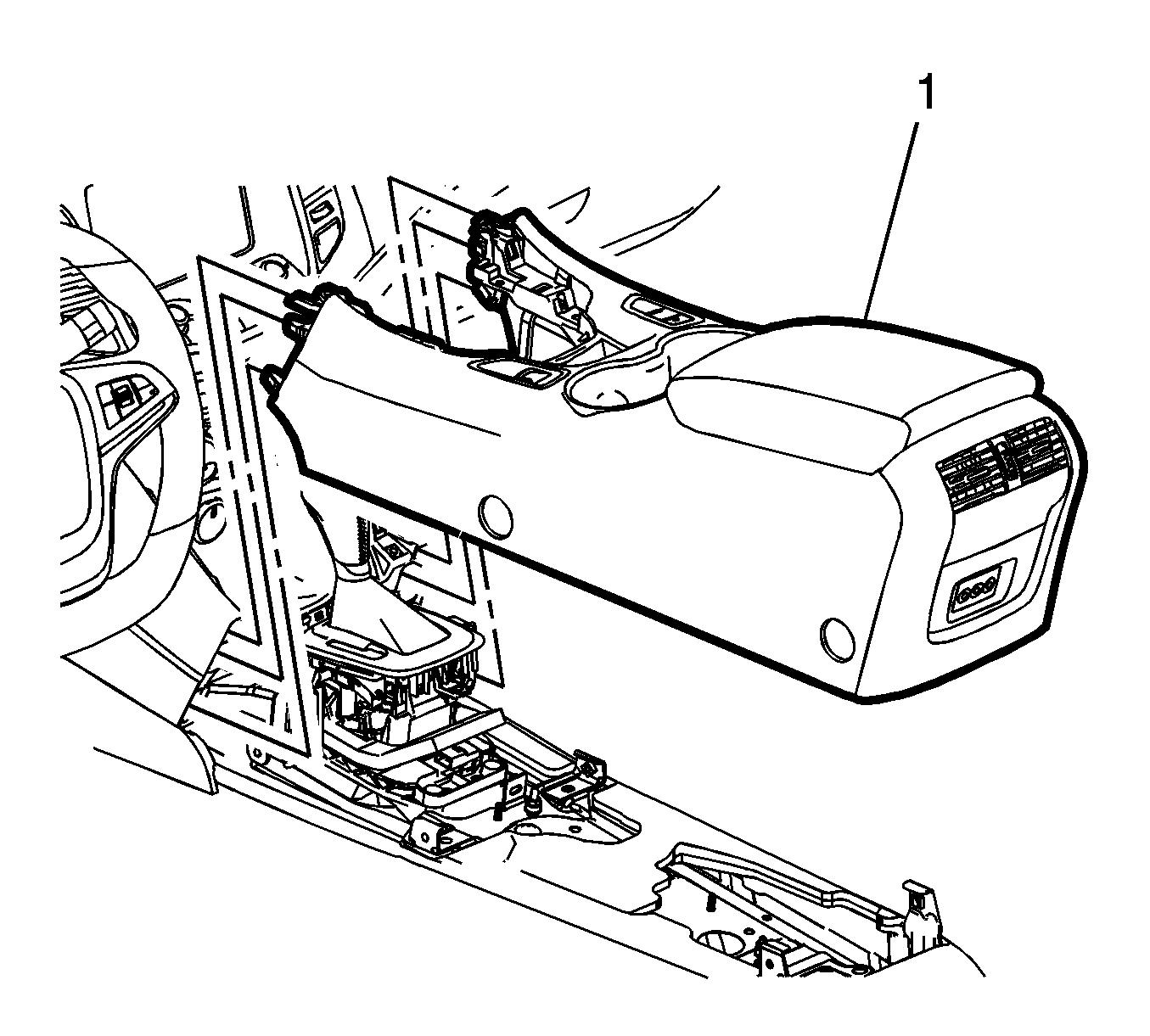

    Fig 1: Front Floor Console Assembly
    GM3533381Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Floor Console (1) - Front Floor Console Replacement (Automatic) Front Floor Console Replacement (Manual)

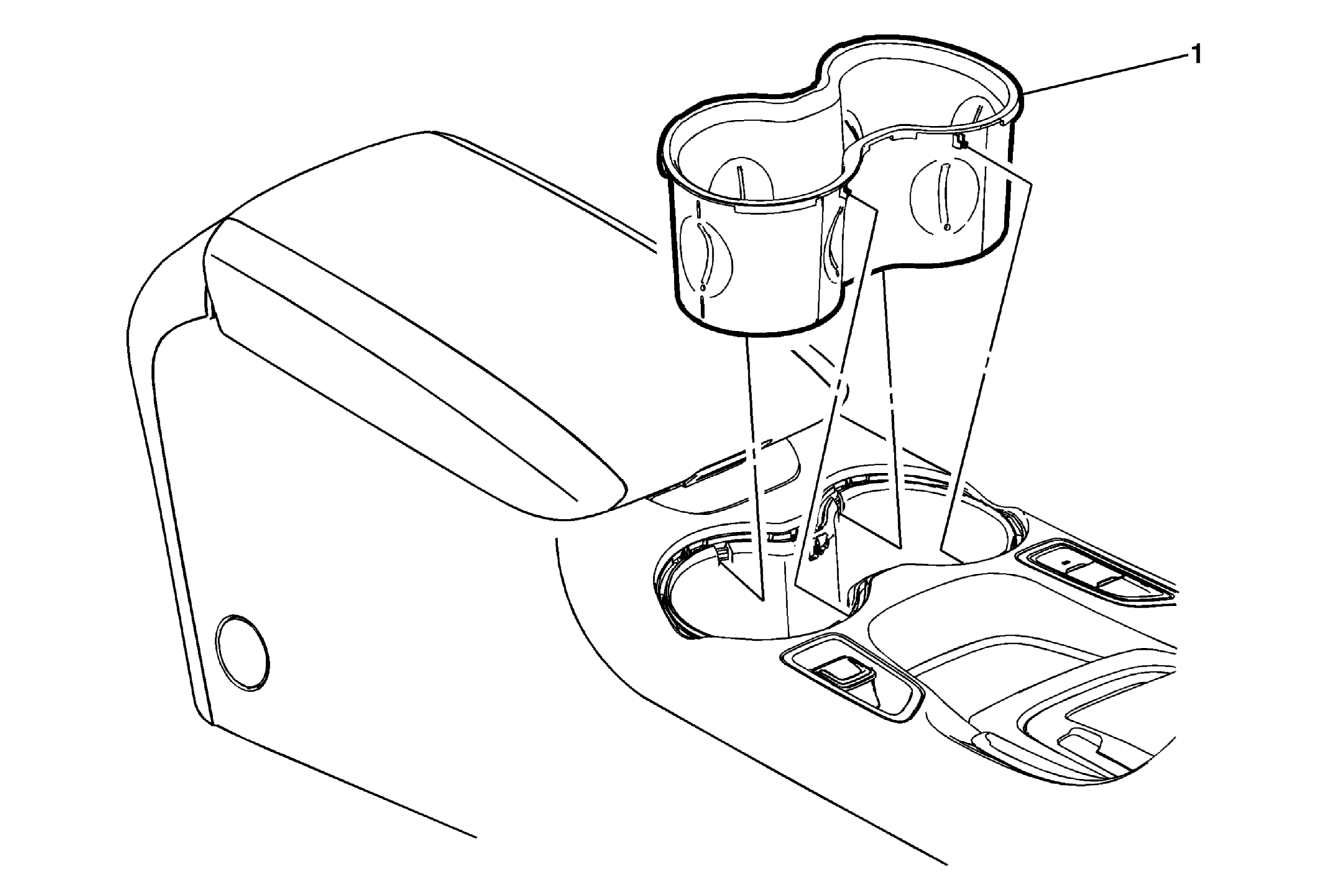

    2. Fig 2: Front Floor Console Cup Holder Liner
    GM3225556Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Floor Console Cup Holder Liner (1) - Front Floor Console Cup Holder Liner Replacement
    3. Fig 3: Front Floor Console Disc/Tape Storage Tray & Bolts
    GM3223195Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Floor Console Stowage Tray (1)
  4. Remove Front Floor Console Bolt at Duct and Cup holder (2) (Qty: 3)
    5. Fig 4: Front Floor Console Reinforcement Bolts
    GM3223202Courtesy of GENERAL MOTORS COMPANY
  5. Remove Front Floor Console Bolt at Duct (1) (Qty: 2)
  6. Remove Front Floor Lower Console (2)
