Windshield Wiper and Washer Switch Replacement

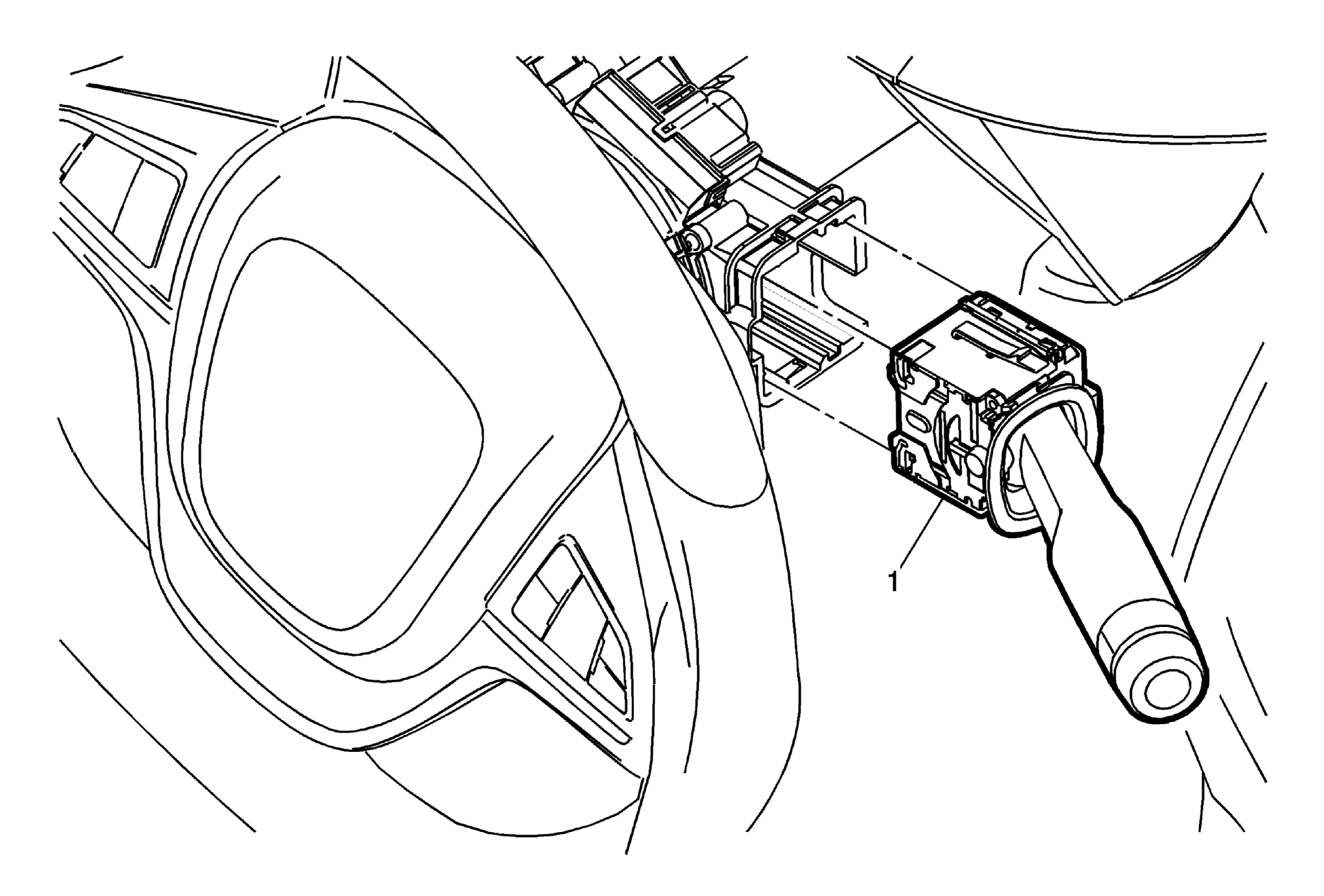

Fig 1: Windshield Wiper & Washer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Lower Trim Cover Replacement
1	Windshield Wiper and Washer Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.

Callout

Component Name

Windshield Wiper and Washer Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.
