Windshield Washer Nozzle Replacement

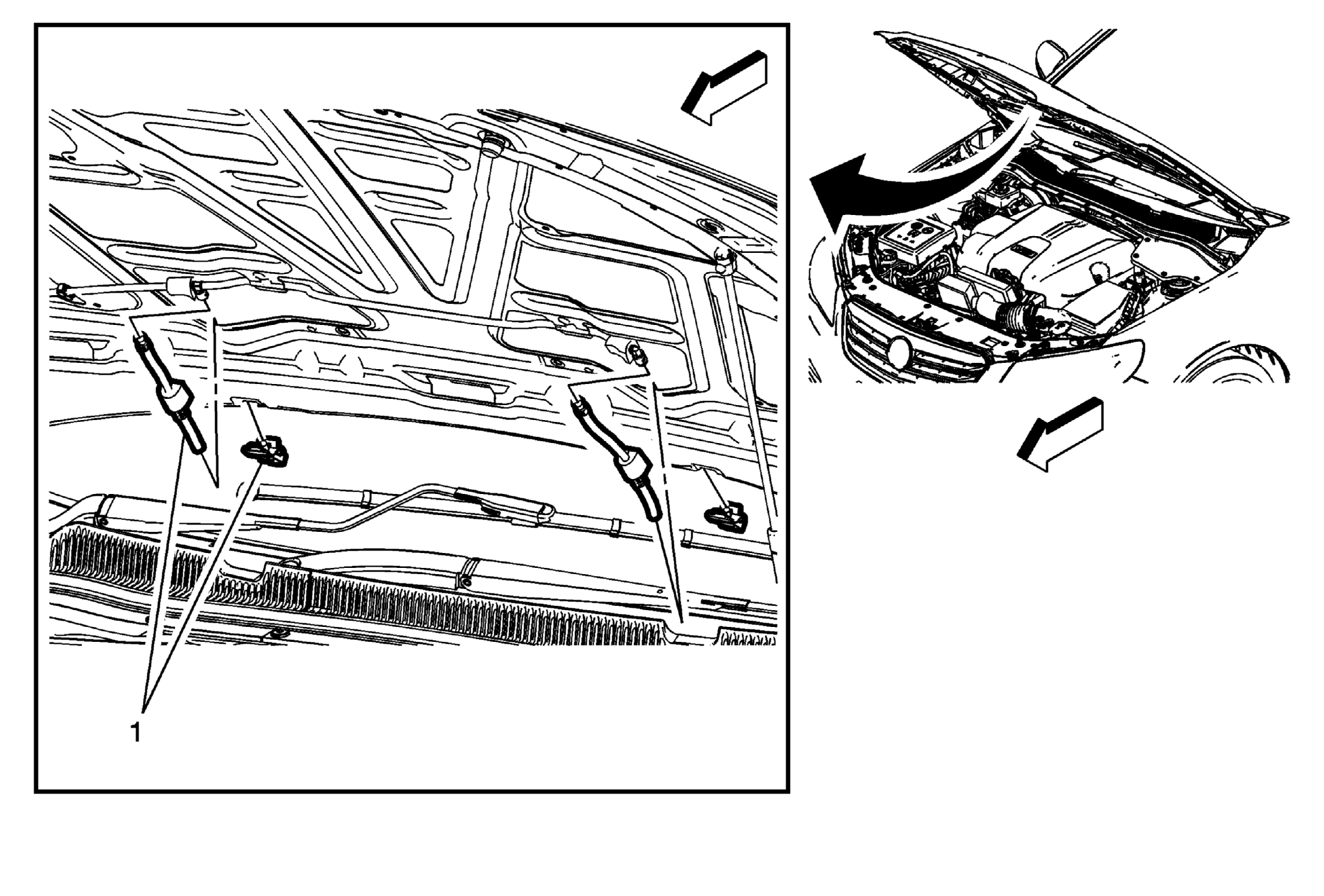

Fig 1: Windshield Washer Nozzle
GM3286350Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Open and support the hood assembly.
  2. Remove the hood insulator. Refer to. Hood Insulator Replacement
1 Windshield Washer Nozzle

Procedure

  1. Release the locking tab to disconnect the windshield washer nozzle at the windshield washer nozzle connector hose.
  2. Compress the locking tabs on the windshield washer nozzle by simultaneously pulling forward and then downward to remove the nozzle from the hood assembly.
  3. Disconnect the windshield washer hose at the windshield washer nozzle being serviced.
