Radio Front Speaker Grille Replacement

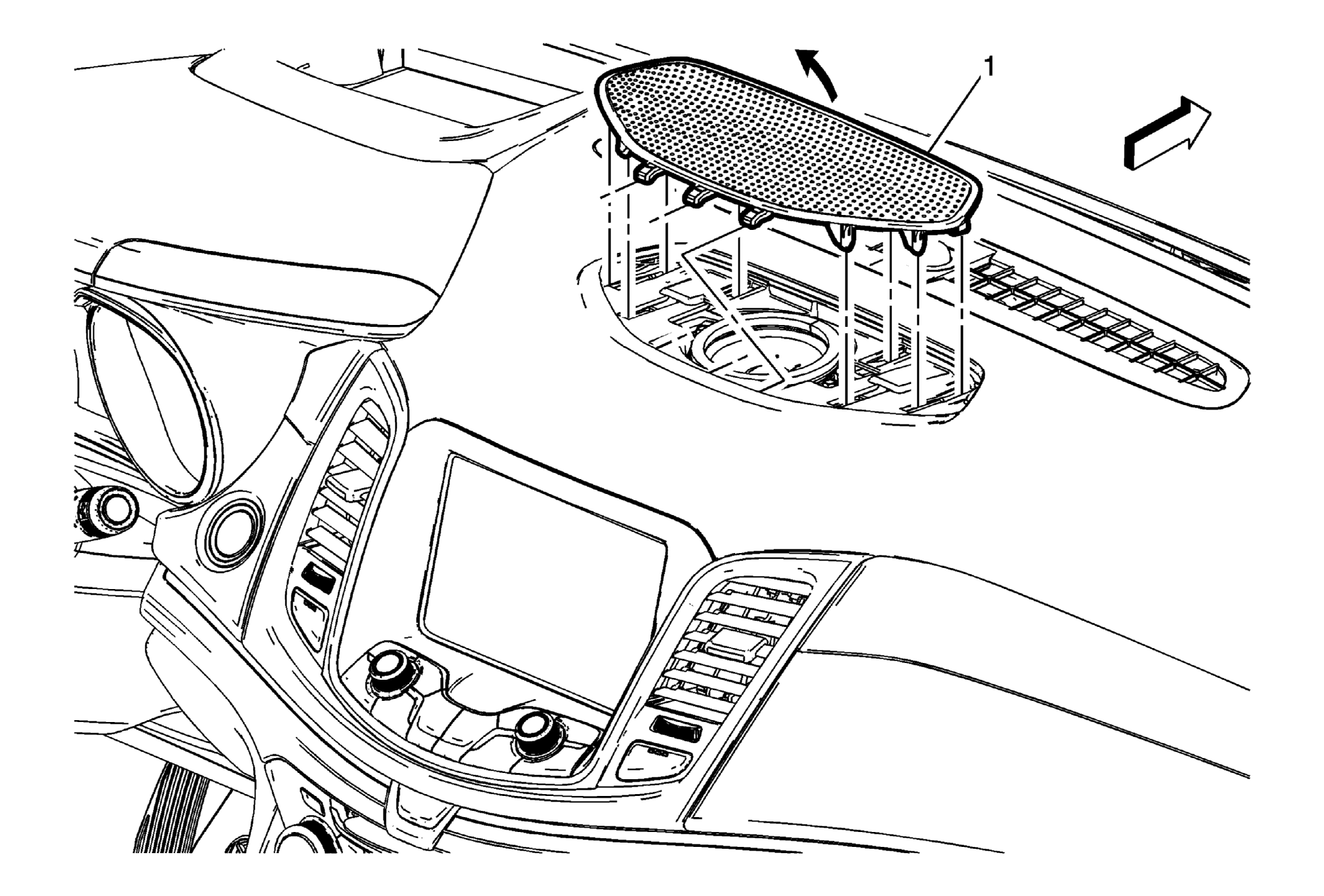

Fig 1: Radio Front Speaker Grille
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Radio Front Speaker Grille
Procedure
Use a plastic flat bladed tool to lever upwards at the windshield side. Tilt rearward to release the rear retainers and remove the grille assembly.
