Installation Procedure

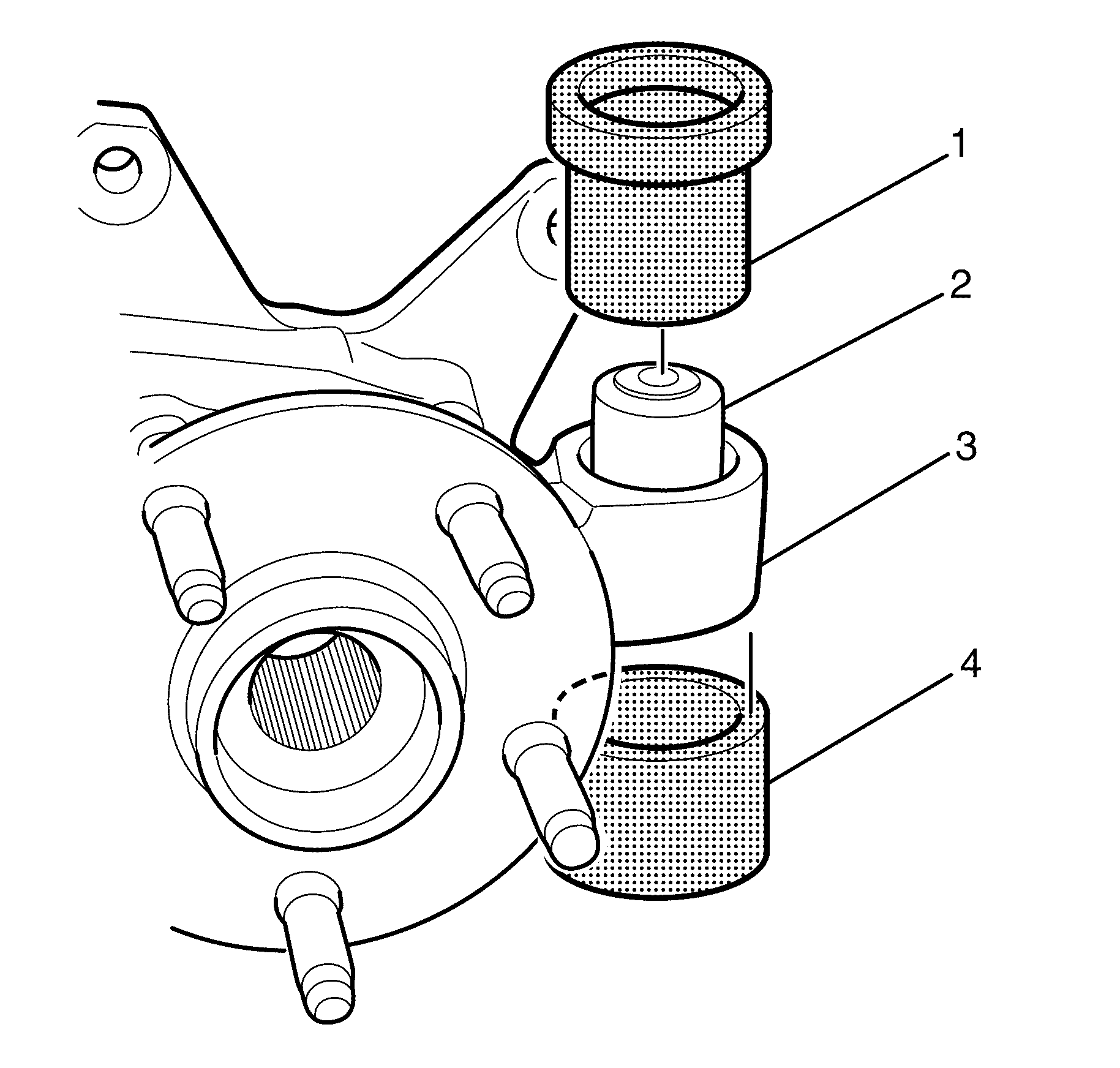

- Install the upper control arm to knuckle bushing (2) to the knuckle (3) using the KM-619 bushing remover/installer (1, 4).
- Connect the upper control arm to the knuckle.

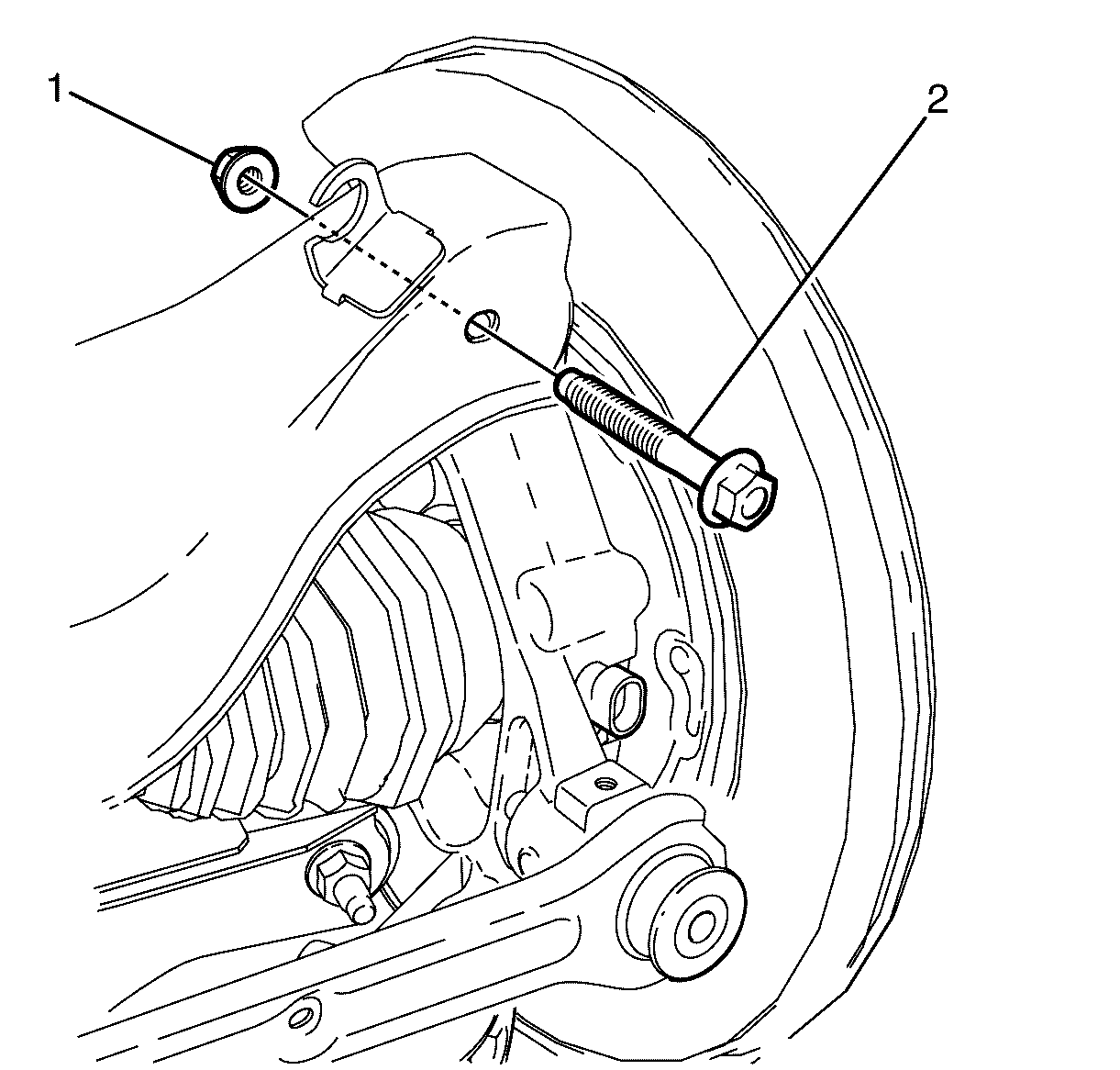

- Install the upper control arm to knuckle retaining bolt (2) and NEW nut (1).
Do not fully tighten at this stage.
- Remove the safety stands.
- Lower the vehicle to the ground.
- Bounce the vehicle several times to settle the suspension.

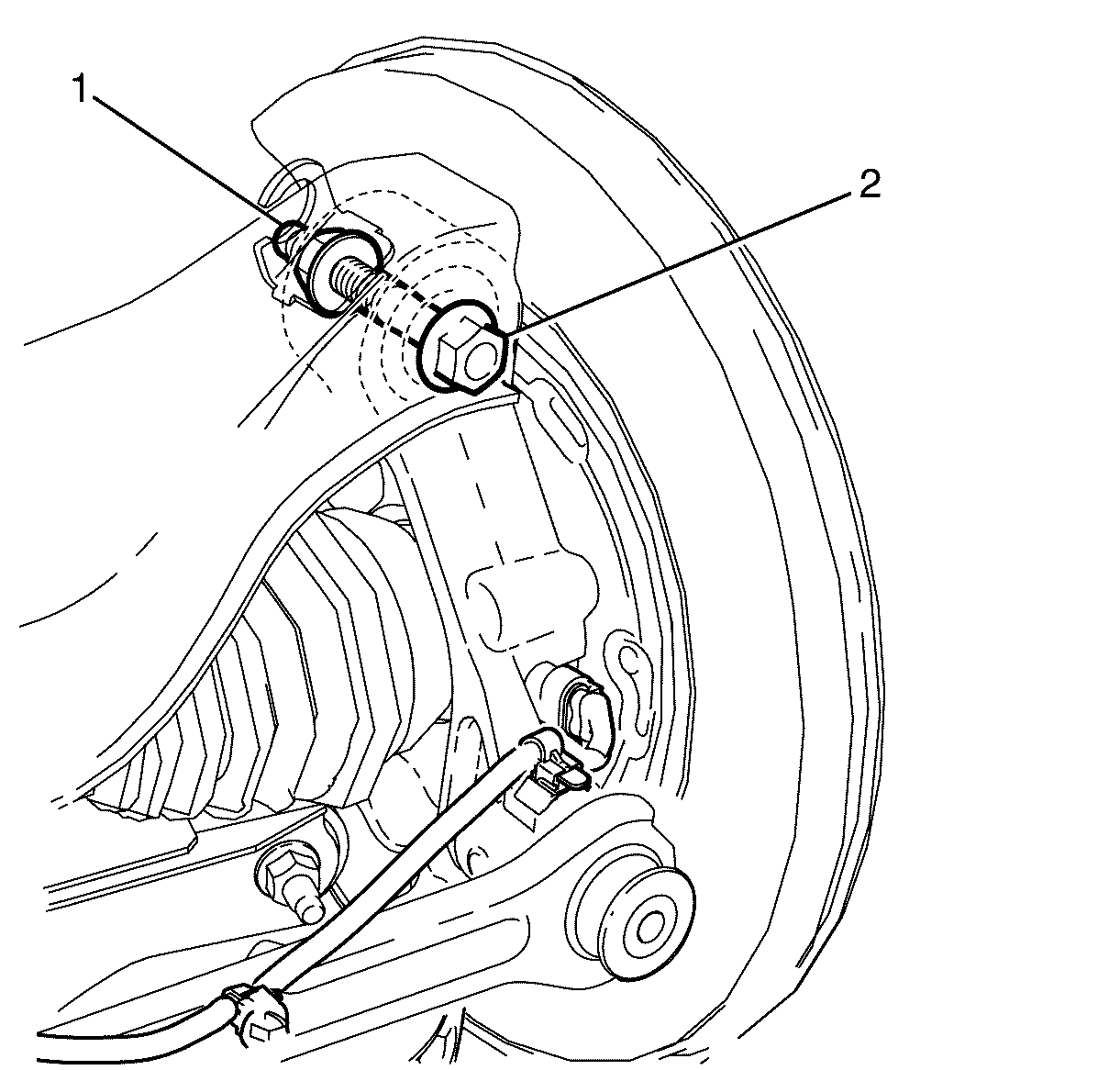

- Tighten the upper control arm to knuckle retaining bolt (2) and NEW nut (1).
Tighten
- Tighten the bolt and nut a first pass to 60 N.m (44 lb ft).
- Tighten the bolt and nut a final pass plus 120 Degrees.
- Check the vehicle rear wheel alignment and adjust if necessary. Refer to Wheel Alignment Specifications .
NOTE:
Before installing, the upper control arm to knuckle bushing (2) must be correctly aligned and orientated.
NOTE:
The upper control arm to knuckle retaining bolt and nut must not to be fully tightened at this stage.
CAUTION:
Refer to Fastener Caution .
NOTE:
Align the mark from bolt to upper control arm made prior to removal.
NOTE:
The weight of the vehicle must be on a level surface and on all four wheels before fully tightening the nuts and bolts.
