Installation Procedure

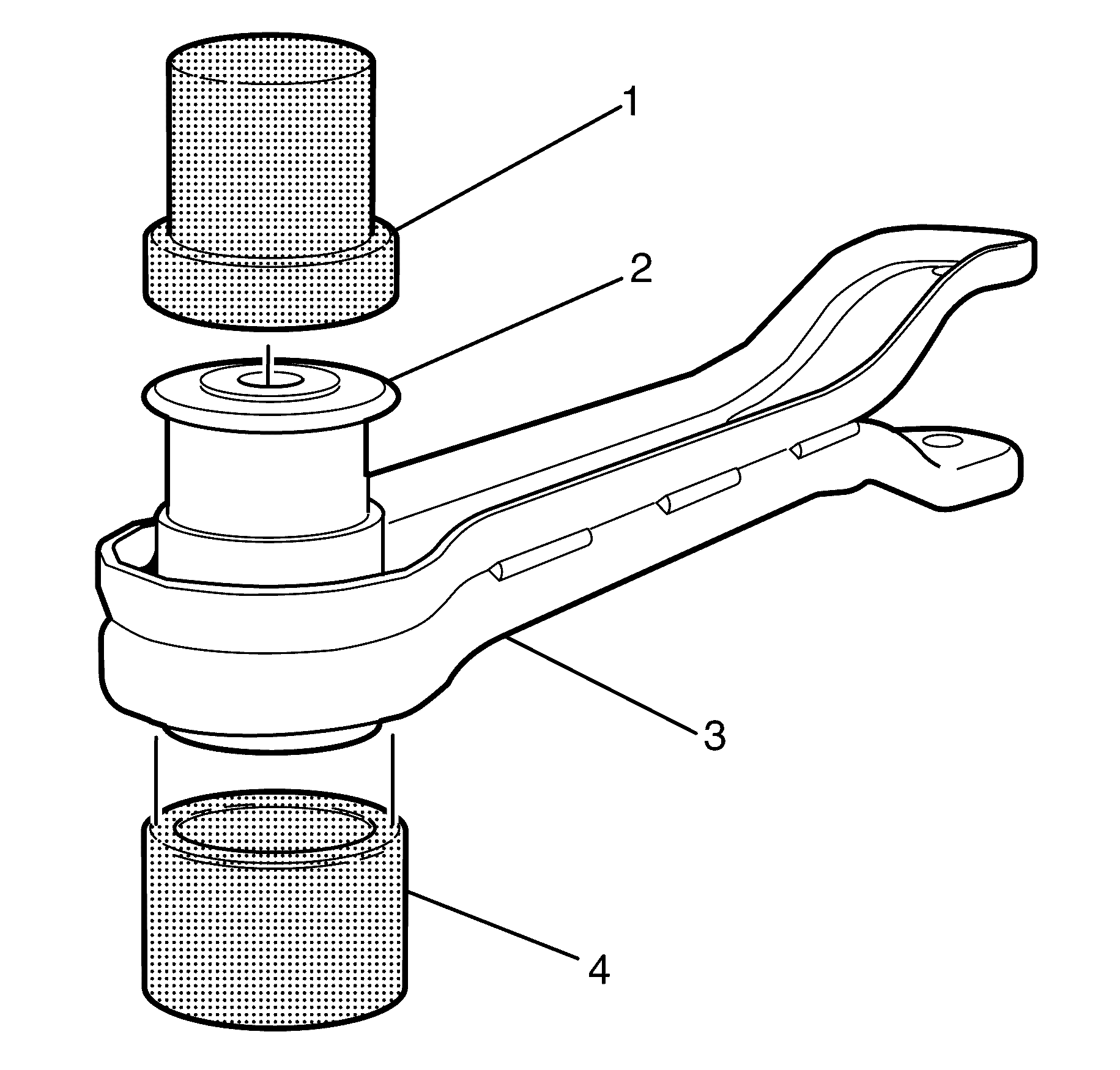

    Fig 1: Y-Link With Bushing & Special Tool
    GM1959026Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Before installing, the Y-Link bushing (2) must be correctly aligned and orientated.

  1. Install the Y-Link (2) bushing to the Y-Link (3) using the KM-906-C  bushing remover/installer kit 9 (1, 4).
  2. Install the Y-Link (3). Refer to Trailing Arm Replacement .
  3. Remove the safety stands.
  4. Lower the vehicle to the ground.
