Installation Procedure

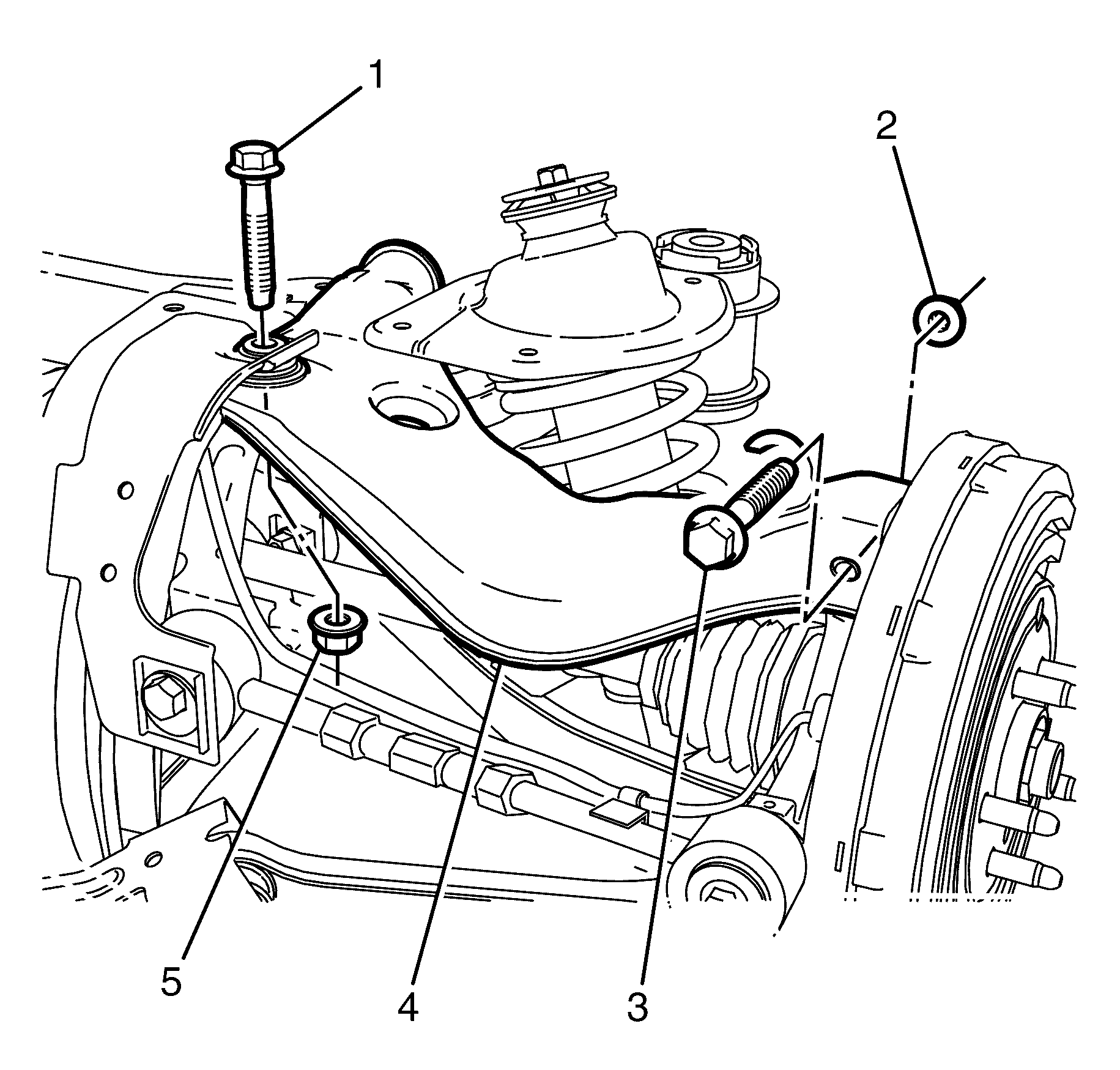

- Install the upper control arm (4) into the rear suspension support.
- Install the upper control arm ball joint bushing to rear suspension support retaining bolt (1) and NEW nut (5).
Tighten
Tighten the bolt and nut a first pass to 80 N.m (59 lb ft).
Tighten
Tighten the bolt and nut a final pass +120 Degrees.
- Install the upper control arm to knuckle retaining bolt (3) and NEW nut (2).
Tighten
Tighten the bolt and nut a first pass to 60 N.m (44 lb ft).
Tighten
Tighten the bolt and nut a final pass +120 Degrees.
- Install the rear suspension upper control arm bushing. Refer Rear Suspension Upper Control Arm Bushing Replacement .
- Install the rear frame. Refer to Rear Frame Replacement .
- Remove the safety stands.
- Lower the vehicle to the ground.
- Check the vehicle rear wheel alignment and adjust if necessary. Refer to Wheel Alignment Specifications .
CAUTION:
Refer to Fastener Caution .
