Installation Procedure

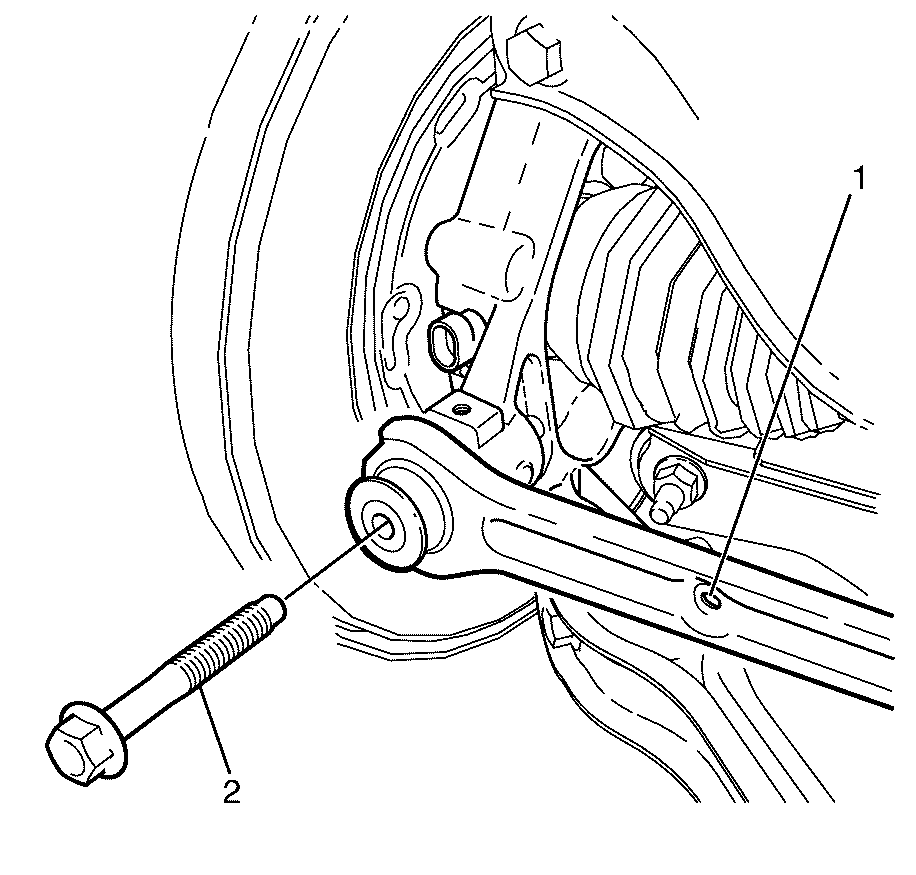

    Fig 1: I-Link To Knuckle Retaining Bolt
    GM2152666Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The I-Link to knuckle retaining bolt (2) is not to be fully tightened at this stage.

  1. Install the NEW I-Link (1)
  2. CAUTION:

    Refer to Fastener Caution .

  3. Install the NEW I-Link to knuckle retaining bolt (2) and tighten to 20 N.m (15 lb ft).
  4. Loosen the bolt by 90 degrees.

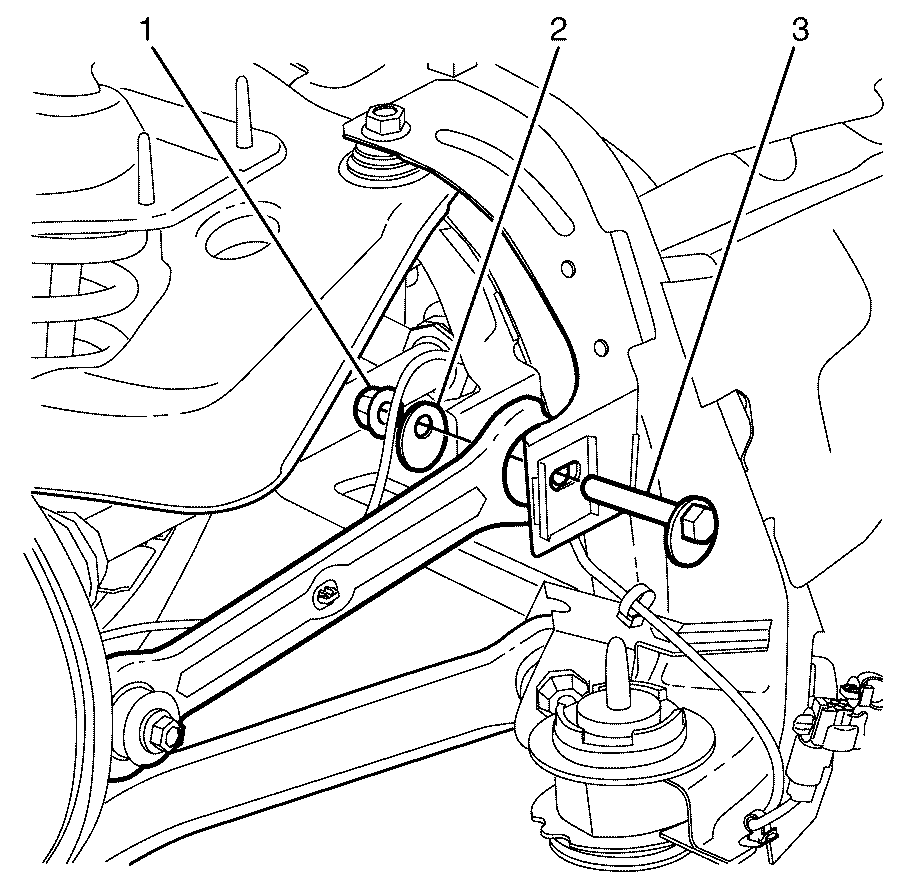

  5. Fig 2: I-Link To Subframe Retaining Bolt, Washer & Nut
    GM2152669Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The I-Link to subframe retaining bolt and nut must not to be fully tightened at this stage.

  6. Install the I-Link to subframe retaining bolt (3), washer (2) and NEW nut (1).
  7. Using a suitable tool, align the previously made aligning mark on the I-Link to subframe retaining bolt (3) to the corresponding rear subframe mark.
  8. Using a suitable tool, hold the I-Link to subframe retaining bolt (3) in the correct position and tighten the NEW nut (1) to 20 N.m (15 lb ft).
  9. Loosen the nut by 90 degrees.
  10. Install the rear wheel. Tire and Wheel Removal and Installation
  11. Lower the vehicle. Lifting and Jacking the Vehicle

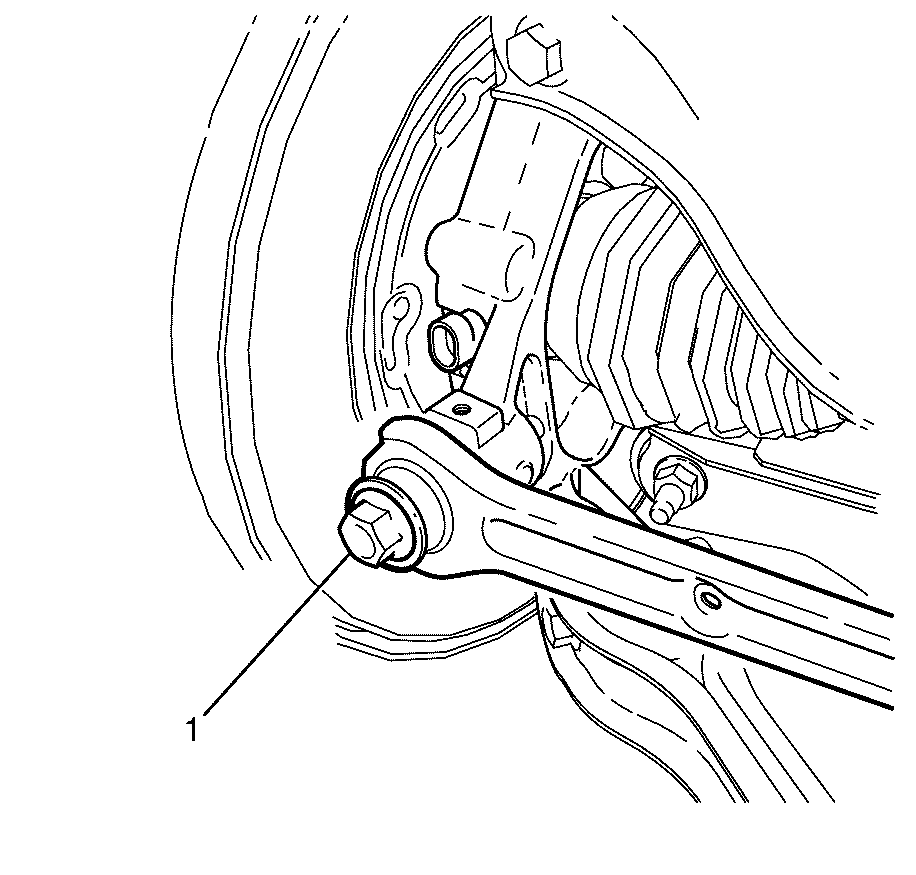

  12. Fig 3: I-Link To Knuckle Retaining Bolt
    GM2163647Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The weight of the vehicle must be on a level surface and on all four wheels before fully tightening the nut.

    NOTE:

    The suggested method to settle the rear suspension is with the wheels on the ground, open rear compartment lid and support the lid with a suitable brace. Using your hands press down hard on the rear compartment floor and release a number of times.

  13. Settle the suspension.
  14. Install the NEW I-Link to knuckle retaining bolt (1) and tighten to 140 N.m (103 lb ft).
  15. Fig 4: I-Link To Subframe Retaining Nut
    GM2152668Courtesy of GENERAL MOTORS COMPANY
  16. Using a suitable tool, align the previously made aligning marks on the I-Link to subframe retaining bolt (1) and hold in position.
  17. Install the I-Link to subframe retaining nut (2) and tighten to 175 N.m (129 lb ft).
  18. Fig 5: Wheel Speed Sensor Electrical Connector & Wiring Harness Retainers
    GM2152667Courtesy of GENERAL MOTORS COMPANY
  19. Connect the wheel speed sensor electrical connector (1).
  20. Attach the wheel speed sensor wiring harness retainers (2).
  21. Check the vehicle rear wheel alignment and adjust if necessary. Wheel Alignment Specifications
  22. Correct the wheel alignment of the vehicle, if necessary. Rear Camber Adjustment , and Rear Toe Adjustment
