Installation Procedure

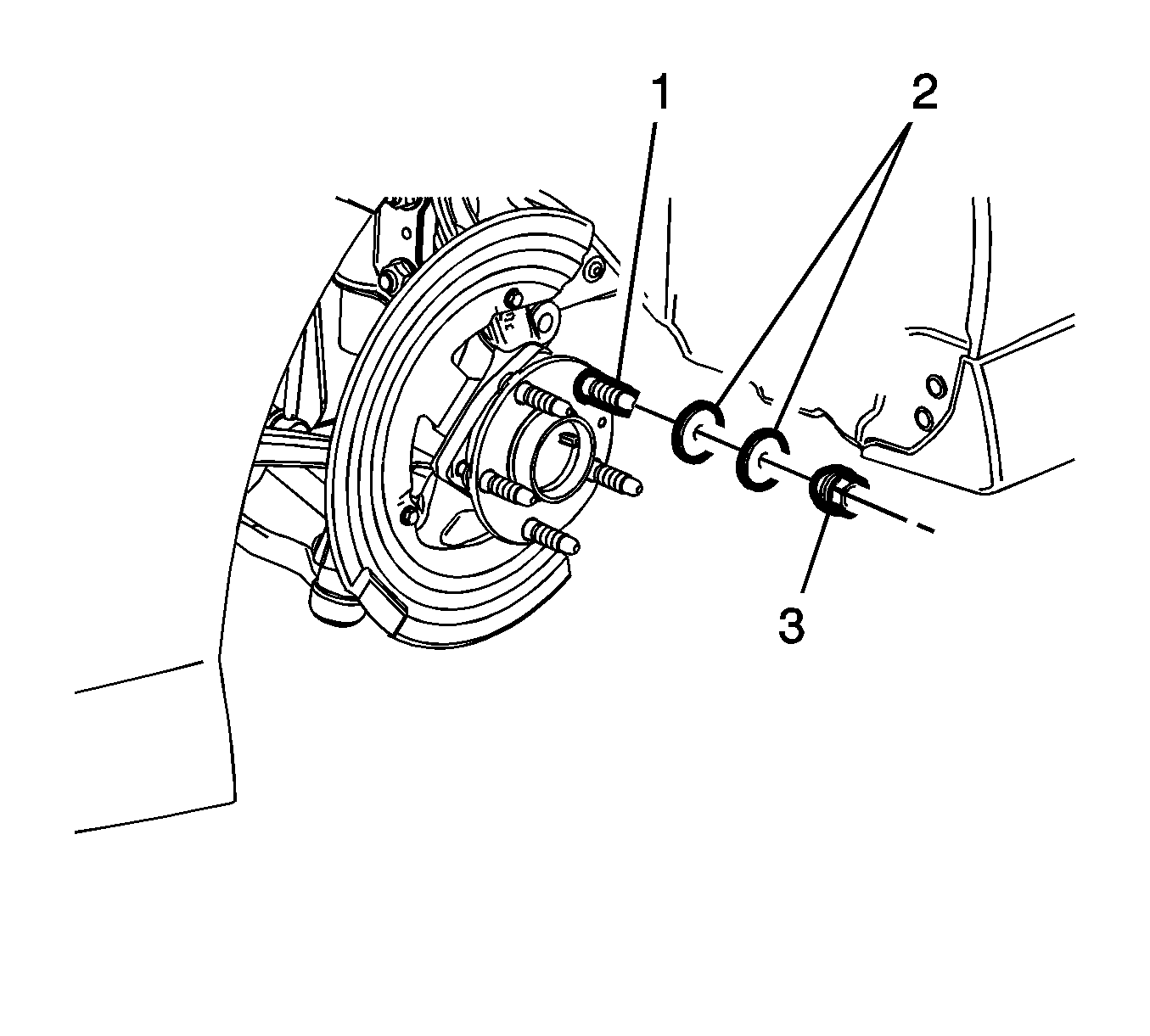

    Fig 1: New Wheel Stud, Washers & Nuts
    GM3512311Courtesy of GENERAL MOTORS COMPANY
  1. Position the NEW wheel stud (1) in the flange of the hub assembly.
  2. Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
  3. Use a suitable tool to prevent the flange on the hub assembly from rotating.
  4. Tighten the wheel nut until the wheel stud is firmly seated.
  5. Remove the wheel nut and flat washers.
  6. Install Front Brake Rotor - Front Brake Rotor Replacement
