Installation Procedure

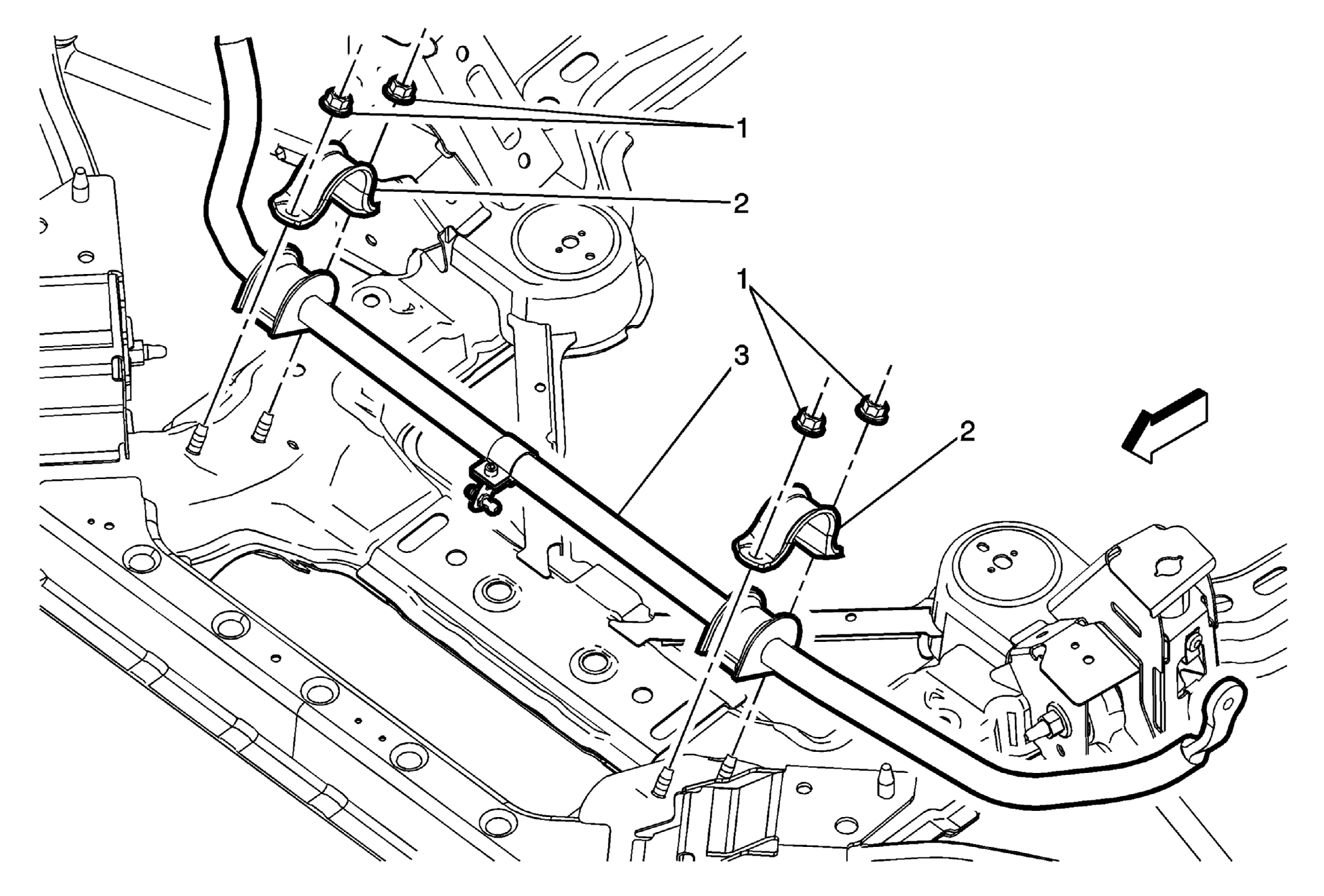

- Position the front stabilizer shaft (3) on the vehicle through the left side wheel area.
The right side of the front stabilizer shaft should pass under the crankshaft pulley.
- Install the front stabilizer shaft insulator clamps (2) and NEW front stabilizer shaft insulator clamp nuts (1) and tighten the nuts to 37 N.m (27 lb ft).

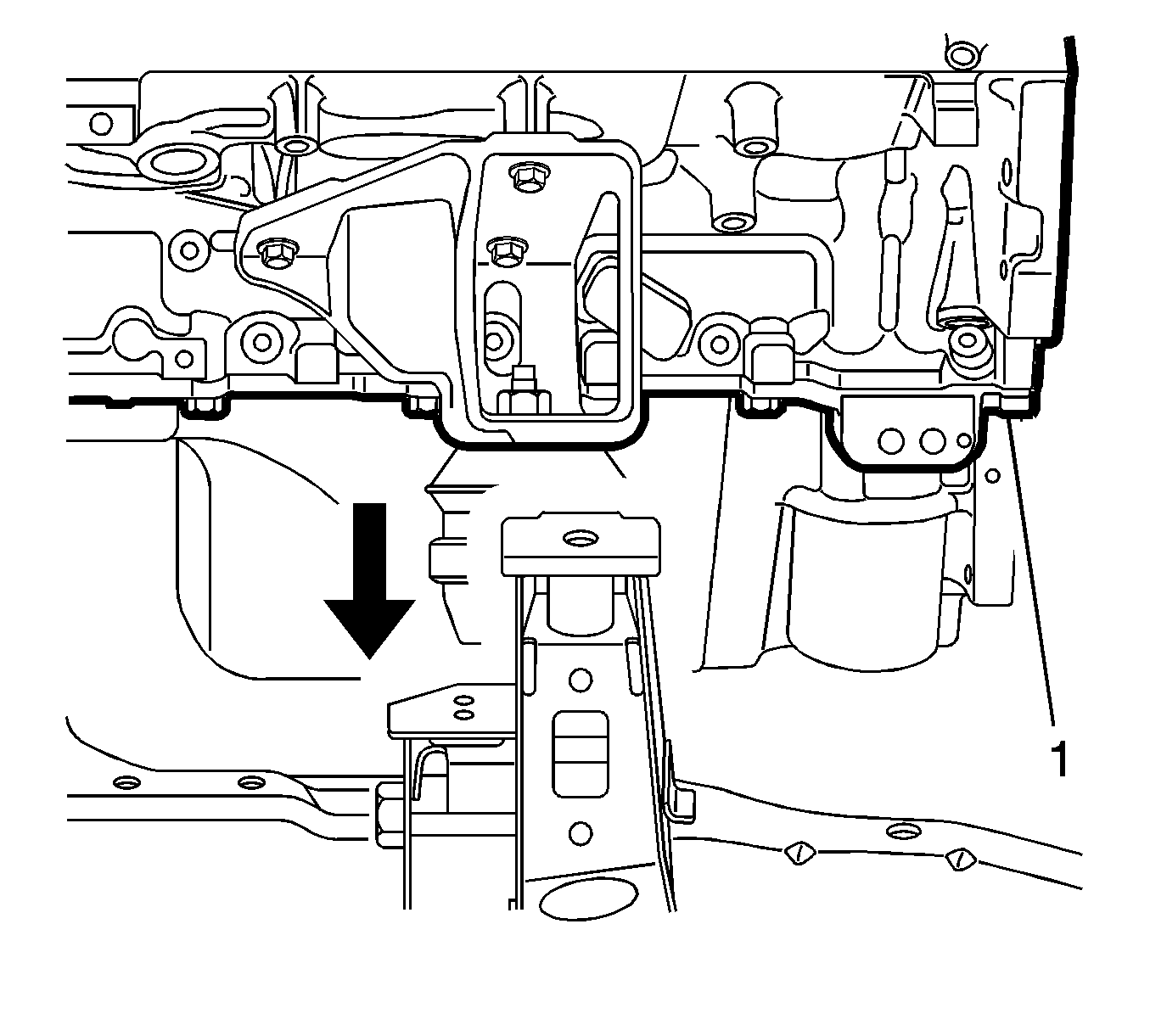

- Lower the engine (1) back onto the drivetrain and front suspension frame. Engine Mount Bracket Replacement - Left Side , and Engine Mount Bracket Replacement - Right Side

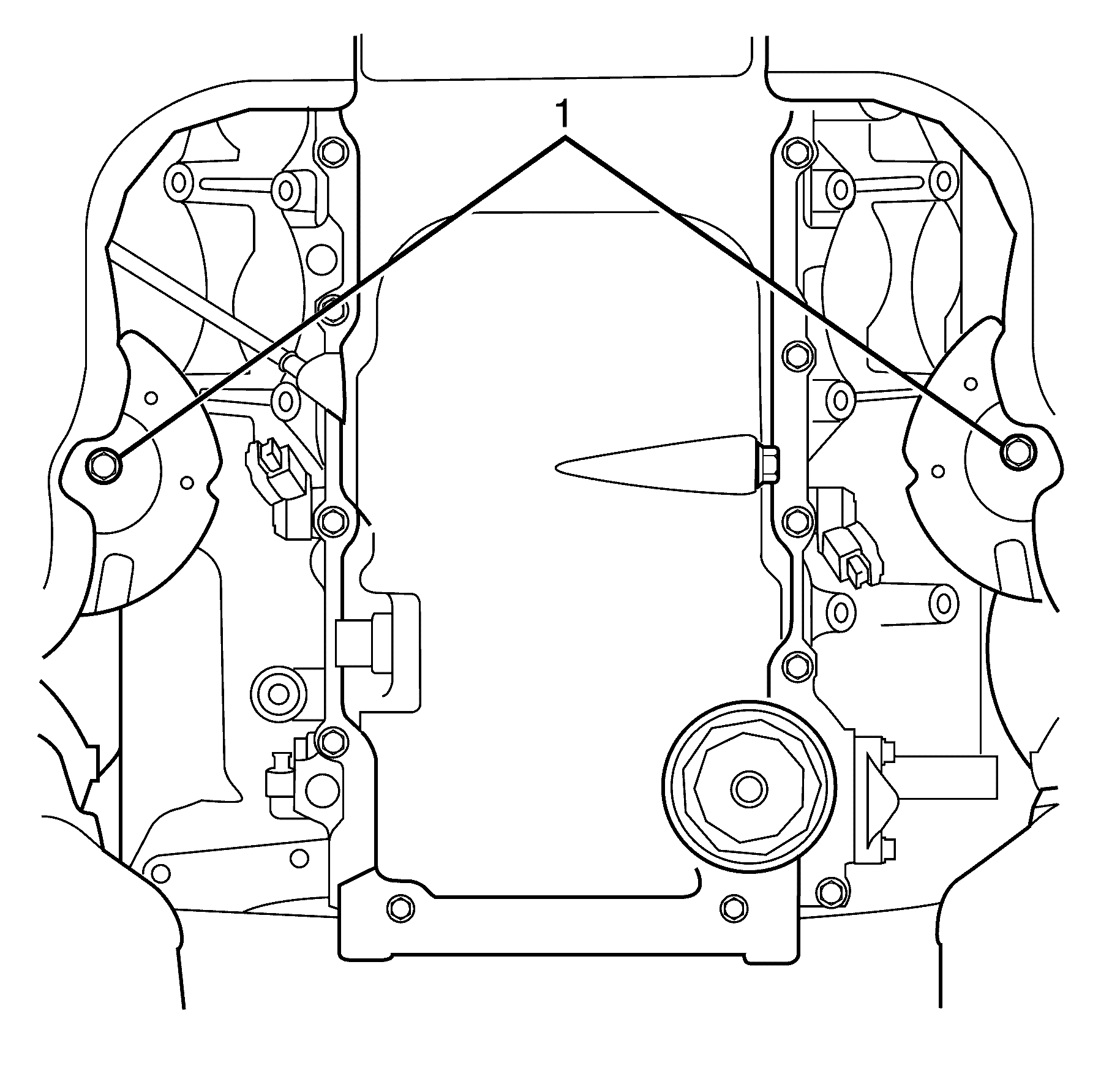

- Install the left and right lower engine mount to sub-frame retaining nuts (1). Engine Mount Replacement - Left Side , and Engine Mount Replacement - Right Side

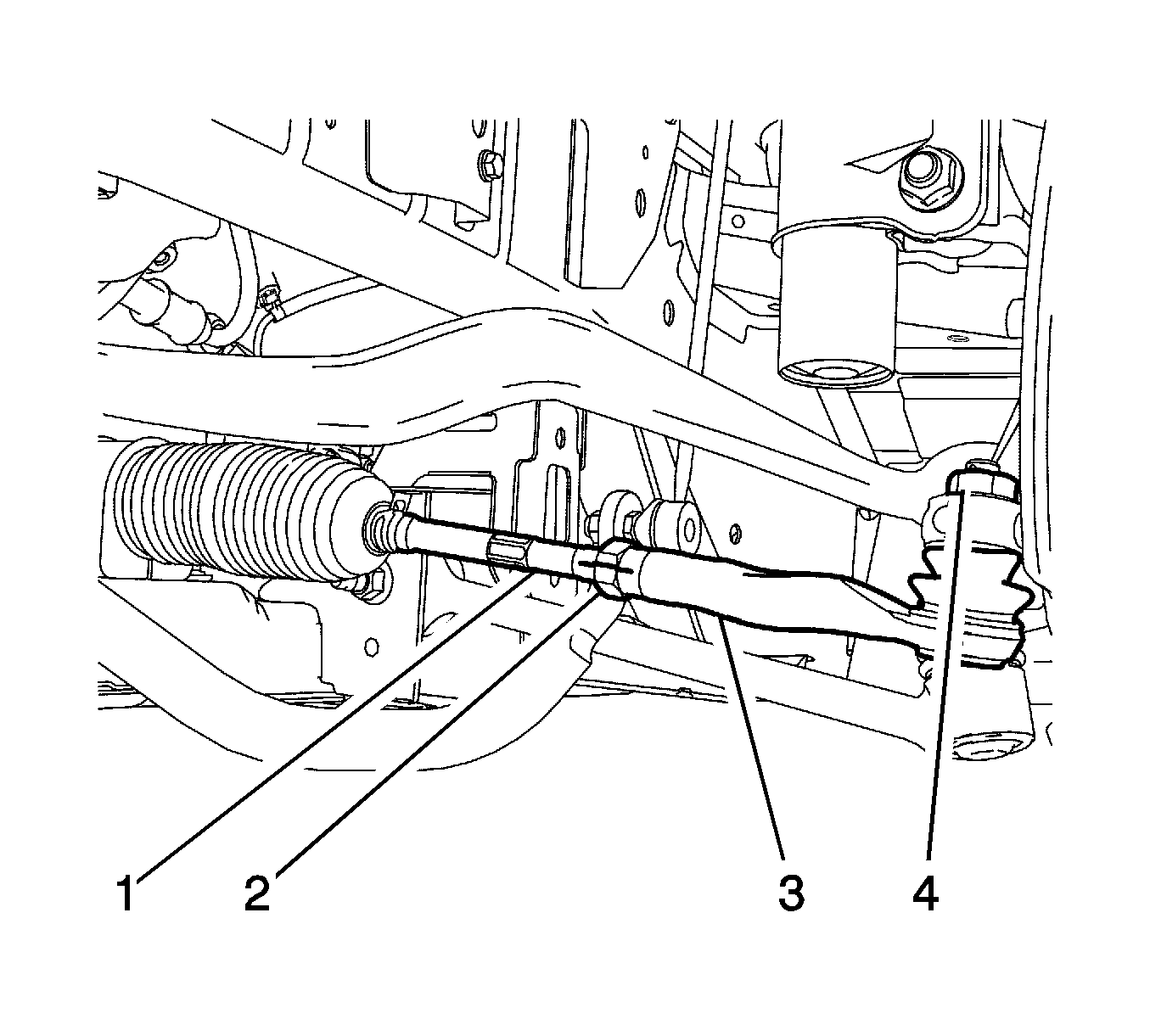

- Install Steering Linkage Outer Tie Rod (3) at Steering Knuckle (4) - Steering Linkage Outer Tie Rod Replacement

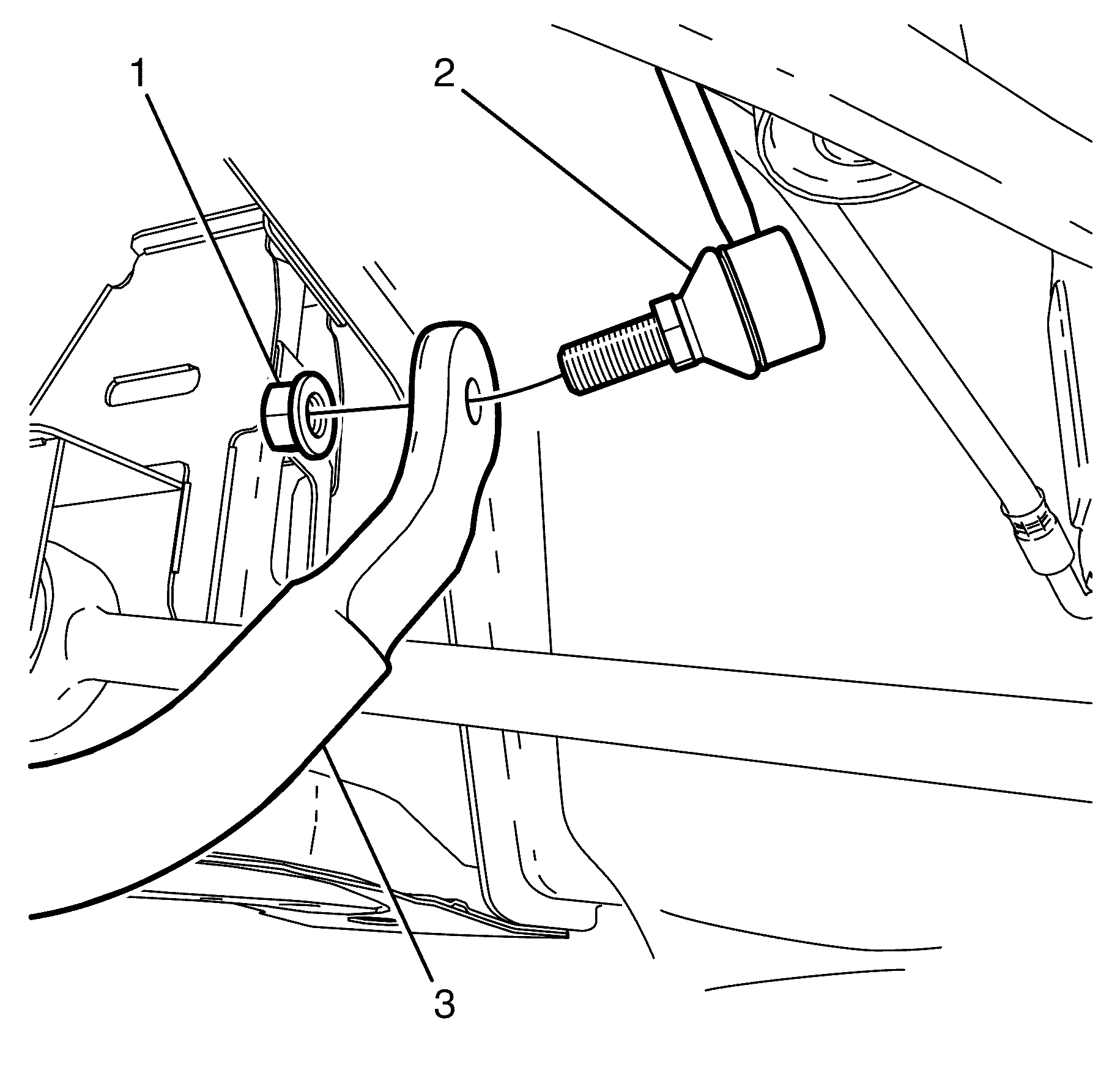

- Install Front Stabilizer Shaft Link (2) at Front Stabilizer Shaft (3) - Stabilizer Shaft Link Replacement
- Install Front Lower Control Front Link-Left Side (1) - Front Lower Control Front Link Replacement

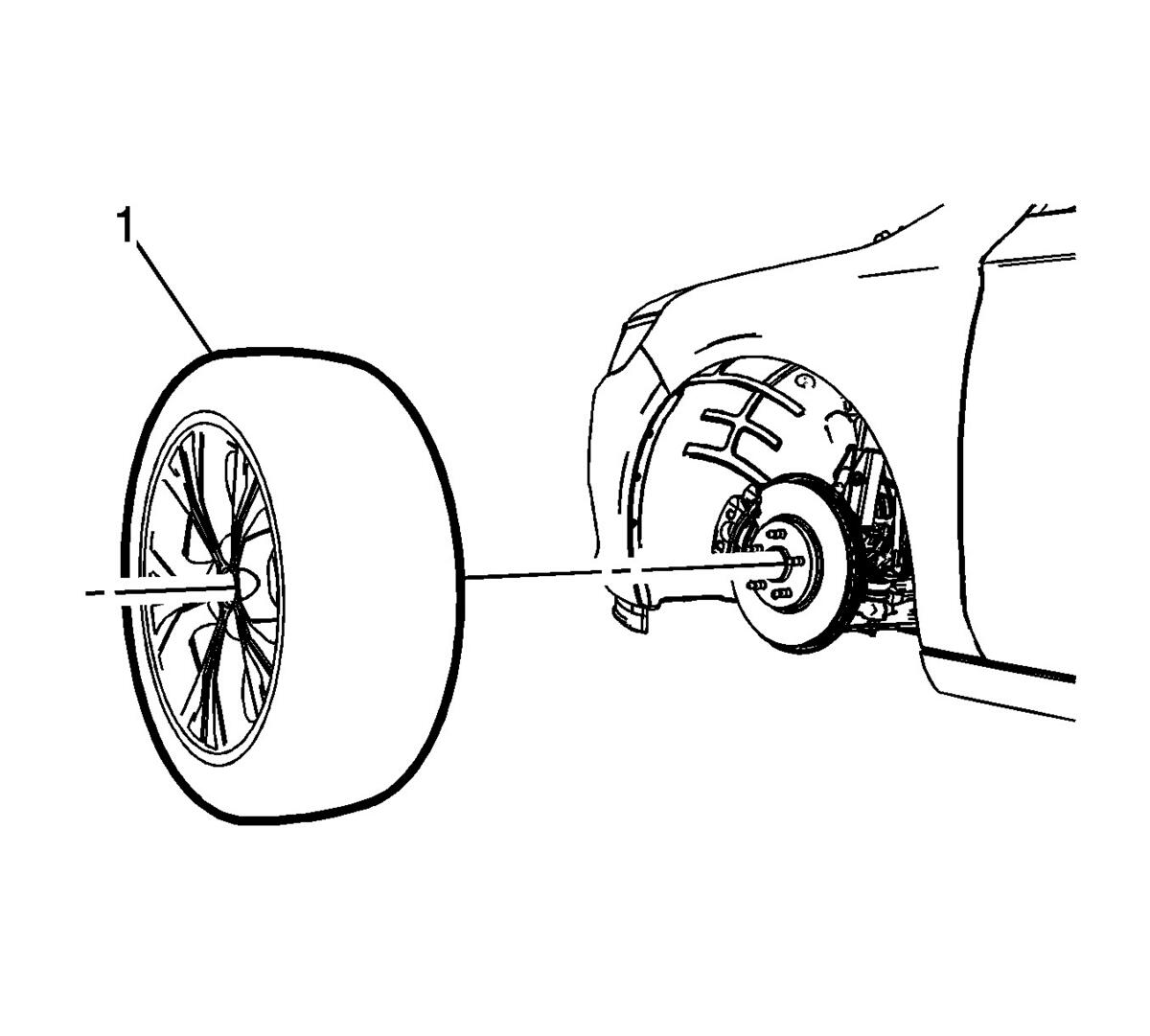

- Install the front tire and wheel assemblies (1). Tire and Wheel Removal and Installation
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
