Lin Bus Diagnostic Information (PIT5698E)

LIN BUS DIAGNOSTIC INFORMATION

TECHNICAL SERVICE BULLETIN

SERVICE INFORMATION

Brand:	Model:	Model Year:		VIN:		Engine:	Transmission:
		from	to	from	to
All	All	2013-2025		All	All	All	All

Involved Region or Country	North America
Condition	As more smart motors, switches, and sensors are being used there are more Local Interconnect Network (LIN) buses on vehicles. Because of this, some questions have been raised regarding diagnosis of a LIN bus circuit. This document is intended to help better understand LIN buses and provide some diagnostics tips. NOTE: As always, follow normal SI diagnostics.

CORRECTION

LIN Bus Information

• The LIN bus consists of a single wire and is used to exchange information between one master control module (example ECM, BCM, etc.) and one or more smart device(s) such as switches, sensors, motors, etc.
• The LIN bus is relatively simple and it exchanges data at a slower rate than other GMLAN buses.
• LIN buses are not wired to the DLC, thus the scan tool does not communicate directly on a LIN bus. The scan tool will communicate with the master controller of the LIN bus, which is wired to the DLC (High, Low, Chassis, etc), in order to command outputs or read parameters from the smart device(s).
• If serial data communication is lost between any of the LIN devices on the LIN bus network, the master control module will set a no communication code against the non-communicating LIN device.
• Each component on a LIN network (master and any smart devices) will send out their own reference voltage which is 1 volt less than system voltage (throughout this document we will refer to this as "approximately 12 volts") and then toggle that reference voltage low when communicating, as shown below. Knowing that each device sends out its own reference voltage can be very useful when performing diagnostics. In some cases, this reference voltage is even present after the ignition is off and the vehicle has completely powered down, this is because many smart devices are only powered by a hot at all times circuit.
• Because the LIN bus voltage ranges between approximately 12 to 1 volt it is very important we have proper battery voltage while performing diagnostics. It is recommended to install the GR8 or equivalent battery tender on the vehicle while diagnosing a LIN bus, or false reading may be read.
• When a LIN bus is at rest/not communicating it will read a steady voltage of approximately 12 volts.
• When monitoring a properly operating LIN bus with the Fluke 87 meter set to "peak" min/max (1 ms record), the reference voltage readings will be approximately 12 volts max and 1 volt min. If the meter is not set to the "peak" min/max setting, it will not capture the true min/max readings and typically read between 7 - 9 volts.
• In most cases, when the ignition is turned on, the master controller will wake up the smart device(s) via the LIN bus. If the smart device does not wake up, the master controller will set a DTC for that device and will continue to try and wake up the smart device. This can be seen by the toggling voltage on the LIN bus.
• In some cases the smart device will wake up the master controller, an example of this is the driver's door ajar switch. The door ajar switch is hard-wired to the driver's window motor. The driver's window motor has a LIN bus to the BCM. When the driver's door is opened, the ajar switch closes, thus signaling to the driver's window motor to send a LIN message to the BCM. This wakes up the BCM and it communicates to the vehicle that the driver's door is open and the BCM will turn on the dome lights and start waking up the other modules.

  Courtesy of GENERAL MOTORS COMPANY

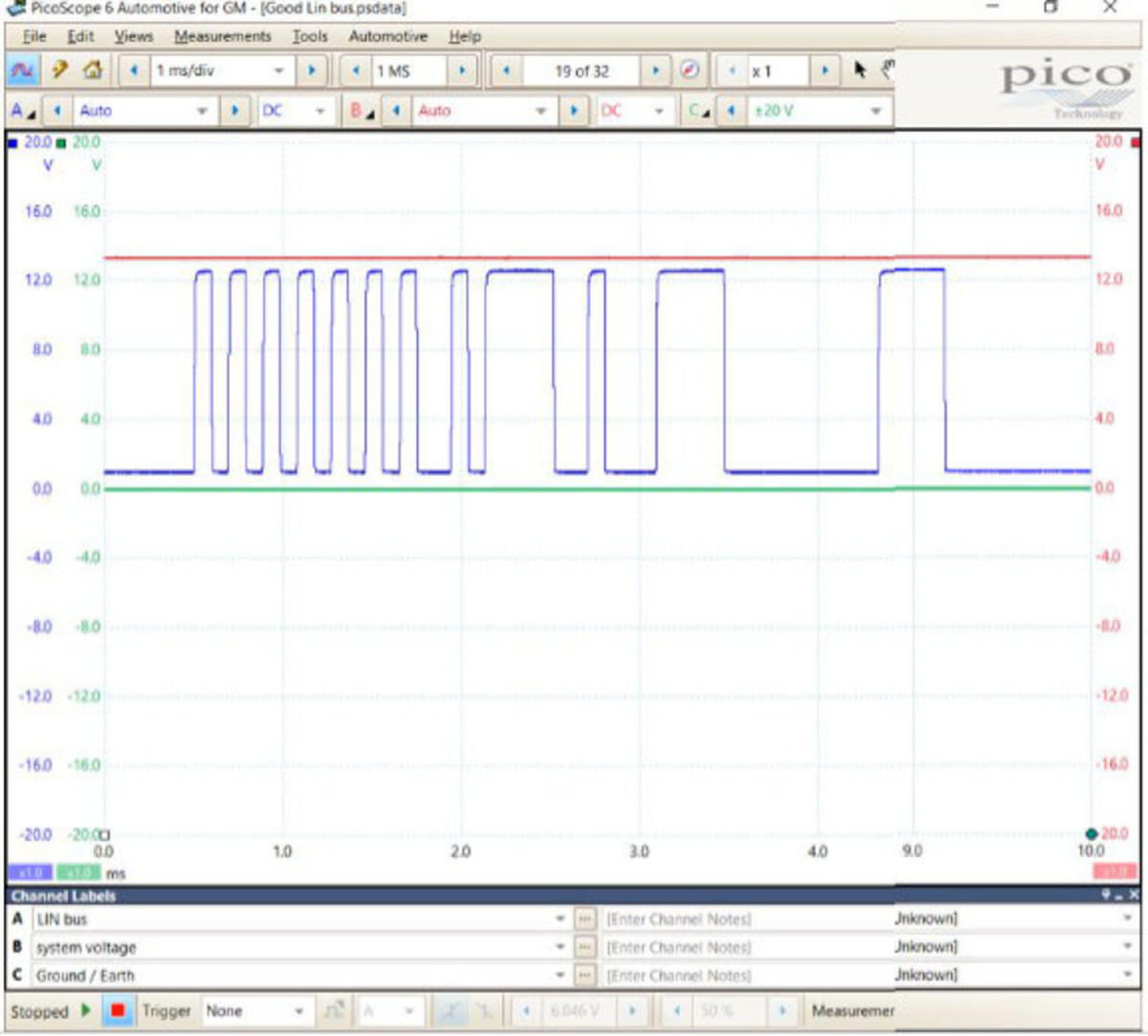

  For the example shown above three scope traces were used:

  Red - System voltage

  Blue - LIN Bus Voltage (properly operating LIN Bus)

  Green - Ground

  NOTE:

  The LIN Bus voltage never goes to fully system voltage or to ground. A properly operating LIN Bus voltage should be approximately 1 volt less than system voltage and 1 volt above ground, as shown.

Diagnostic Tip Information

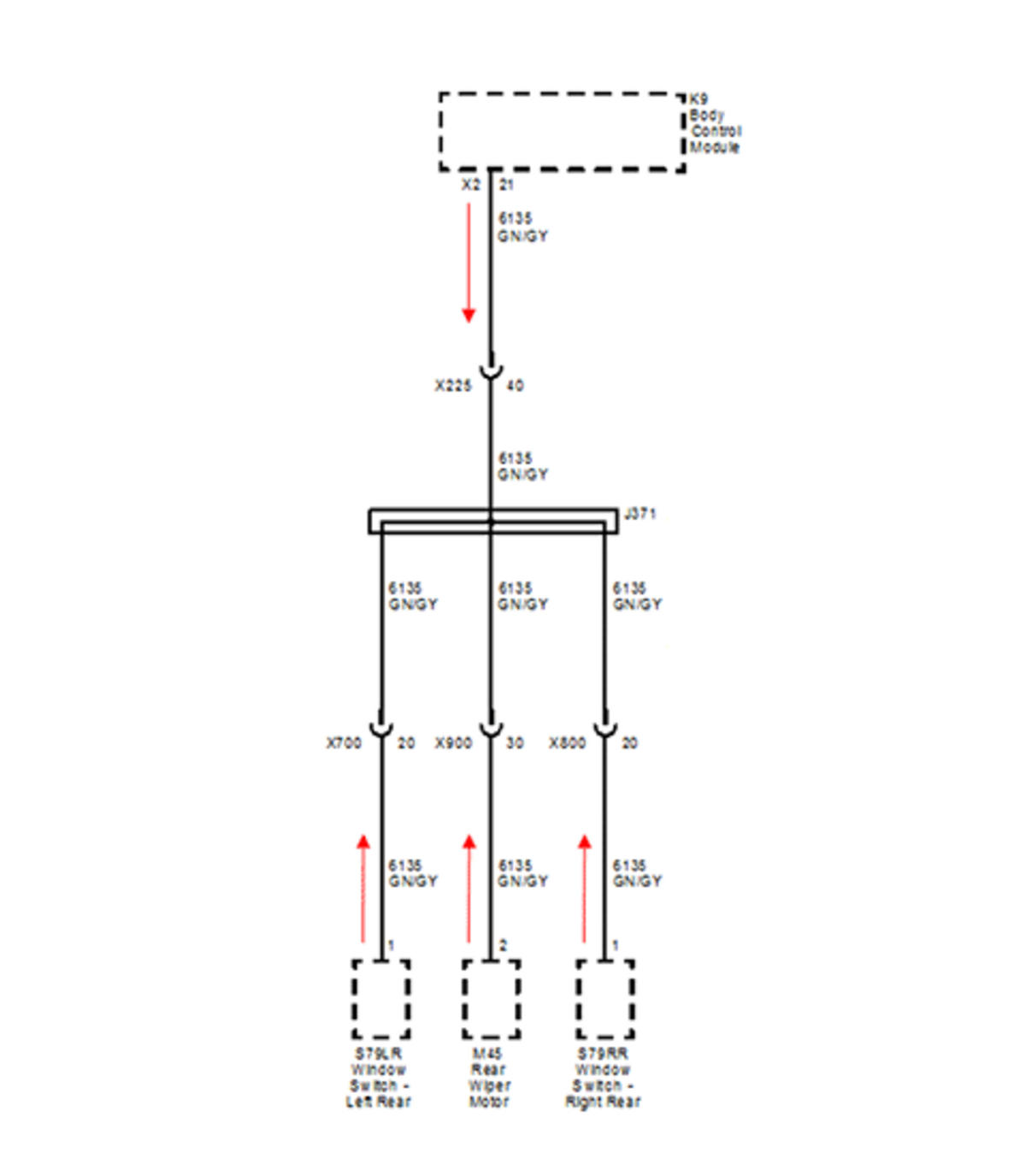

Below are some diagnostic tips for the LIN bus circuit, in addition, the LIN bus schematic seen below will be used as an example in some of the tips. The following is not a flow chart, and as always, follow normal SI diagnostics.

- It is recommended to install the GR8 or equivalent battery tender on the vehicle while diagnosing a LIN bus or false readings may be obtained. Unlike other GMLAN buses which work at much lower voltages (example 0 to 5 or 1.5/2.5/3.5 volts) the LIN bus operates in a range from 1 to 12 volts, and having proper battery voltage is critical to get proper readings.

- Inspect for any DTCs.

- If a LIN bus has more than one smart device, check to see if the other devices are working. Using the example below, if the customer's complaint was that the rear wiper was not operating, check to see if the rear power windows operate. This can help to start narrowing down the area of concern.

- The LIN bus is a single wire and many faults are basic failures, such as, opens, high resistance, shorts to ground/power, poor terminal drag, connectors not fully seated. Using the proper terminal test probes inspect for these type of failures.

- Testing/monitoring the reference voltage of the LIN bus can help determine what type of failure to inspect for.

- Inspect for the reference voltage coming from the master controller: With the master controller connected, disconnect the smart device(s) and turn on the ignition. At the smart device(s), inspect for the toggling reference voltage coming from the master module of the LIN bus. Remember, if using a Fluke 87 meter set to "peak" min/max (1 ms record), the voltages will be approximately 12 volts max and 1 volt min. If the voltage is fully system voltage and not toggling, it could indicate a short to power. If the voltage is not present, it could indicate an open or short to ground.

- Inspect for the reference voltage from the smart device(s): With the smart device in question plugged in, disconnect the master controller and all other smart device(s) on the same LIN bus. At the master controller, inspect for the reference voltage coming from the smart device, which will be a steady 12 volts (approximately). There are a few things to keep in mind when testing the reference voltage from the slave devices:

1. Most slave devices have a hot at all times feed and no switched ignition inputs. In these cases, the ignition does not need to be turned on to test for the reference voltage. Always check the wiring diagram for the smart device to determine if it has power at all times or if it has a switched ignition. If it has a switched ignition feed, when the master controller is unplugged the smart device may not be powered on. In these cases, the smart device will need to have power applied to the switched ignition input before testing.

2. When testing the LIN bus reference voltage from a smart device, which has a switched ignition, some devices will only output their steady 12 volts (approximately) for a few seconds and then it will drop to 0 volts. This is because the testing is done with the master controller disconnected and when the smart device does not establish communication from the master controller it will shut down its LIN bus reference voltage.

3. If there is more than one smart device, such as the example below, keep in mind that each smart device is sending out its own reference voltage. In these cases, the other smart devices will need to be disconnected along with the master controller before checking the reference voltage from that smart device in question.

If no voltage is found coming from the smart device, it could indicate poor terminal tension at the LIN bus terminal, the smart device was not powered on (missing power or ground), issue with the smart device itself, etc.

If the voltage is present check to make sure the correct part number smart device is installed. In many cases, the smart device part numbers change from year to year but they look similar.

Courtesy of GENERAL MOTORS COMPANY
