X53A Fuse Block - Rear Body Label

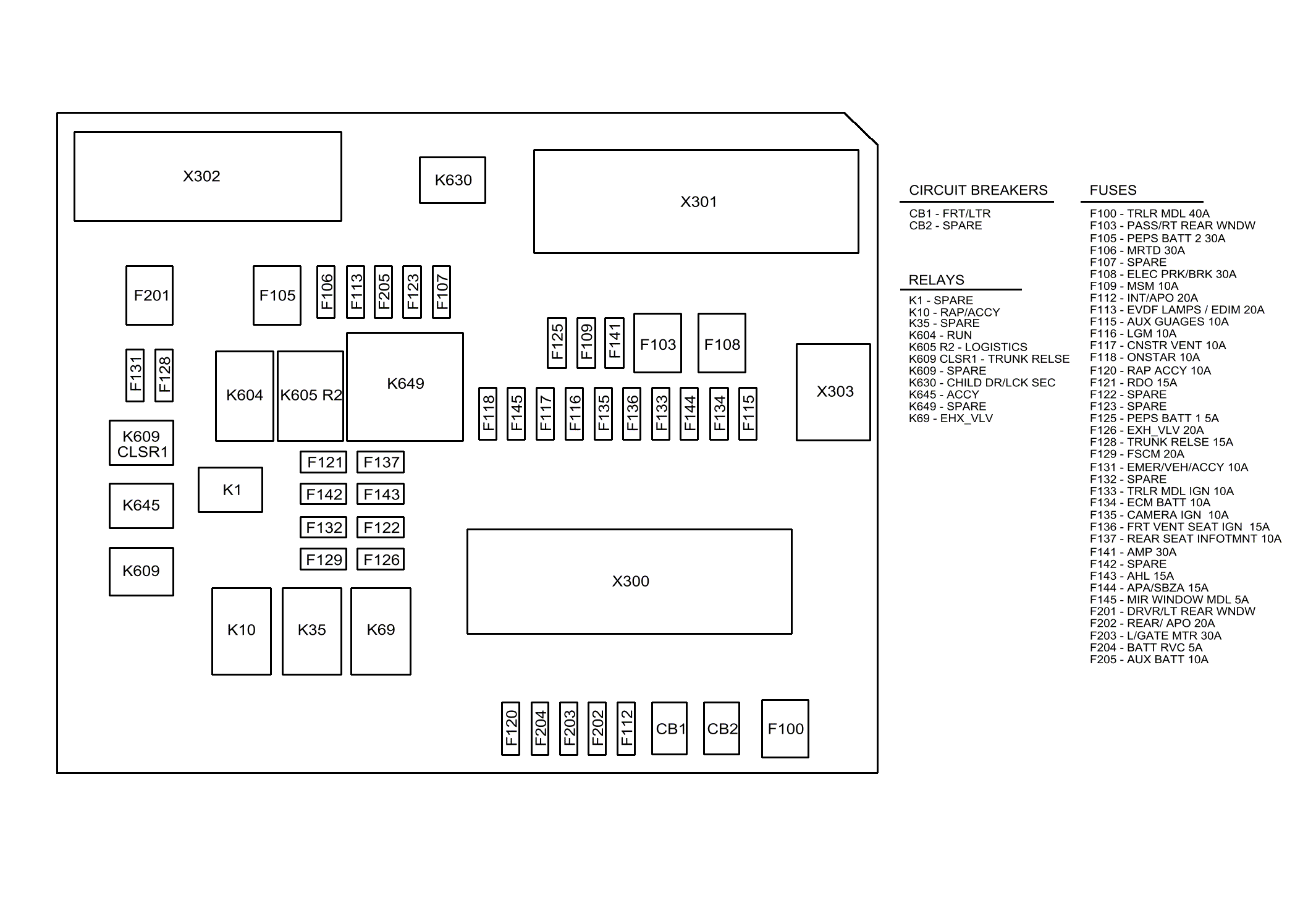

Fig 1: X53A Fuse Block - Rear Body Label

Courtesy of GENERAL MOTORS COMPANY

X53A FUSE BLOCK - REAR BODY FUSE AND RELAY IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F100	TRLR MDL	F1RA	40A	Not Used
F103	PASS/RT REAR WNDW	F2RA	30A	M74P Window Motor - Passenger S79RR Window Switch - Right Rear
F105	PEPS BATT 2	F3RA	30A	K84 Keyless Entry Control Module
F106	MRTD	F4RA	30A	K19 Suspension Control Module
F107	SPARE	F5RA	-	Not Used
F108	ELEC PRK/BRK	F6RA	30A	K83 Parking Brake Control Module (J77)
F109	MSM	F7RA	10A	K40 Seat Memory Control Module
F112	INT/APO	F8RA	20A	X80F Accessory Power Receptacle - Front X80H Accessory Power Receptacle - Center Console
F113	EVDF LAMPS/EDIM	F9RA	20A	Not Used
F115	AUX GAUGES	F10RA	10A	Not Used
F116	LGM	F11RA	10A	Not Used
F117	CNSTR VENT	F12RA	10A	Q13 Evaporative Emissions Vent Solenoid Valve
F118	ONSTAR	F13RA	10A	K73 Telematics Communication Interface Control Module
F120	RAP ACCY	F14RA	10A	Not Used
F121	RDO	F15RA	15A	A11 Radio
F122	SPARE	F16RA	-	Not Used
F123	SPARE	F17RA	-	Not Used
F125	PEPS BATT 1	F18RA	5A	K84 Keyless Entry Control Module
F126	EXH_VLV	F19RA	20A	Q15L Exhaust Flow Control Valve - Left Q15R Exhaust Flow Control Valve - Right
F128	TRUNK RELSE	F20RA	15A	KRR95B Rear Compartment Lid Unlatch Relay
F129	FSCM	F21RA	20A	K38 Chassis Control Module
F131	EMER/VEH/ACCY	F22RA	10A	Not Used
F132	SPARE	F23RA	-	Not Used
F133	TRLR MDL IGN	F24RA	10A	Not Used
F134	ECM BATT	F25RA	10A	K20 Engine Control Module
F135	CAMERA IGN	F26RA	10A	B87 Rearview Camera
F136	FRT VENT SEAT IGN	F27RA	15A	k55D Seat Blower Assembly - Driver Cushion K55P Seat Blower Assembly - Passenger Cushion
F137	REAR SEAT INFOTMNT	F28RA	10A	Not Used
F141	AMP	F29RA	30A	T3 Audio Amplifier
F142	SPARE	F30RA	-	Not Used
F143	AHL	F31RA	15A	Not Used
F144	APA/SBZA	F32RA	15A	B174 Frontview Camera B218L Side Object Sensor Module - Left B218R Side Object Sensor Module - Right K41 Front and Rear Parking Assist Control Module
F145	MIR WNDW MDL	F33RA	5A	K96 Mirror Control Module S52 Outside Rearview Mirror Switch
F201	DRVR/LT REAR WNDW	F34RA	30A	M74D Window Motor - Driver S79LR Window Switch - Left Rear
F202	REAR/APO	F35RA	20A	Not Used
F203	L/GATE MTR	F36RA	30A	Not Used
F204	BATT RVC	F37RA	5A	K9 Body Control Module
F205	AUX BATT	F38RA	10A	Not Used
Relays
K1	SPARE	-	-	Not Used
K10	RAP/ACCY	KR76 Retained Accessory Power Relay	-	F8RA F14RA
K35	SPARE	-	-	Not Used
K604	RUN	KR74 Ignition Run Relay	-	F38RA
K605	R2 - LOGISTICS	KR104B Battery Saver Relay 2	-	F13RA F15RA F32RA
K609	CLSR1 - TRUNK RELSE	KR95B Rear Compartment Lid Unlatch Relay	-	M40 Rear Compartment Lid Latch
K609	SPARE	-	-	Not Used
K630	CHILD DR/LCK SEC	KR113 Child Security Lock Disable Relay	-	Not Used
K645	ACCY	KR80 Accessory Relay	-	Not Used
K649	SPARE	-	-	Not Used
K69	EXH_VLV	KR146 Exhaust Flow Control Valve Relay	-	F19RA
