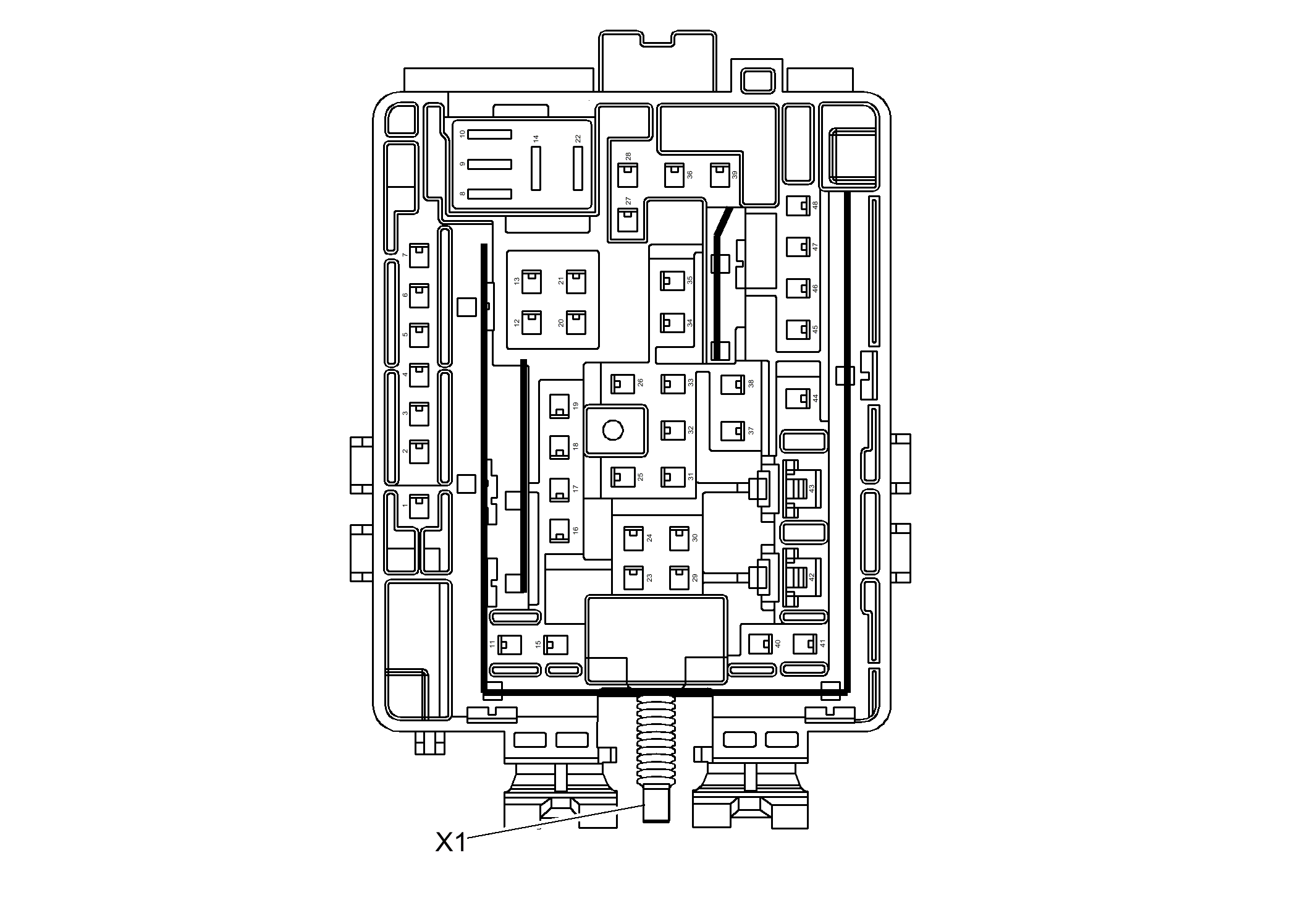

X51A Fuse Block - Instrument Panel Wire Entry

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575713	J-35616-40 (BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
II	13575721	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available
III	13575726	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available
IV	19300657	J-35616-42 (RD)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
V	19300659	J-35616-43 (RD)	J-38125-553	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
4	0.75	RD/BN	2240	Battery Positive Voltage	II	DA
6	0.35	RD/GN	40	Battery Positive Voltage	II	DA
7	0.75	RD/WH	2740	Battery Positive Voltage	II	DA
8	0.35	GY/VT	3264	Logistic Mode Relay Close Control	I	DA
9	0.35	BK	1350	Ground	I	-
10	0.35	VT/BU	3263	Logistic Mode Relay Open Control	I	DA
11	0.35	RD/VT	1440	Battery Positive Voltage	II	-
14	1.5	RD/GY	1740	Battery Positive Voltage	IV	DA
15	0.75	RD/GY	2140	Battery Positive Voltage	II	DA
16	0.5	RD/VT	3340	Battery Positive Voltage	II	DA
17	0.5	RD/BU	3240	Battery Positive Voltage	II	DA
18	0.35	RD/GN	4440	Battery Positive Voltage	II	-
19	1.5	RD/BU	1240	Battery Positive Voltage	III	DA
22	1.5	RD/BU	1240	Battery Positive Voltage	IV	DA
37	0.35	YE	6817	LED Backlight Dimming Control	II	DA
38	0.35	BN	6136	Control	II	DA
40	0.75	RD/WH	1340	Battery Positive Voltage	II	-EF7-Z49/EF7/Z49-9C1-9C3
41	0.5	RD/GN	5140	Battery Positive Voltage	II	DA
42	4	RD/GN	242	Battery Positive Voltage	V	DA
43	2.5	RD/WH	4042	Battery Positive Voltage	V	DA
45	0.35	RD/WH	3440	Battery Positive Voltage	II	DA
46	0.75	RD/BN	2940	Battery Positive Voltage	II	DA
47	0.75	RD/BU	2540	Battery Positive Voltage	II	DA
48	1.5	RD/GY	1740	Battery Positive Voltage	III	DA
