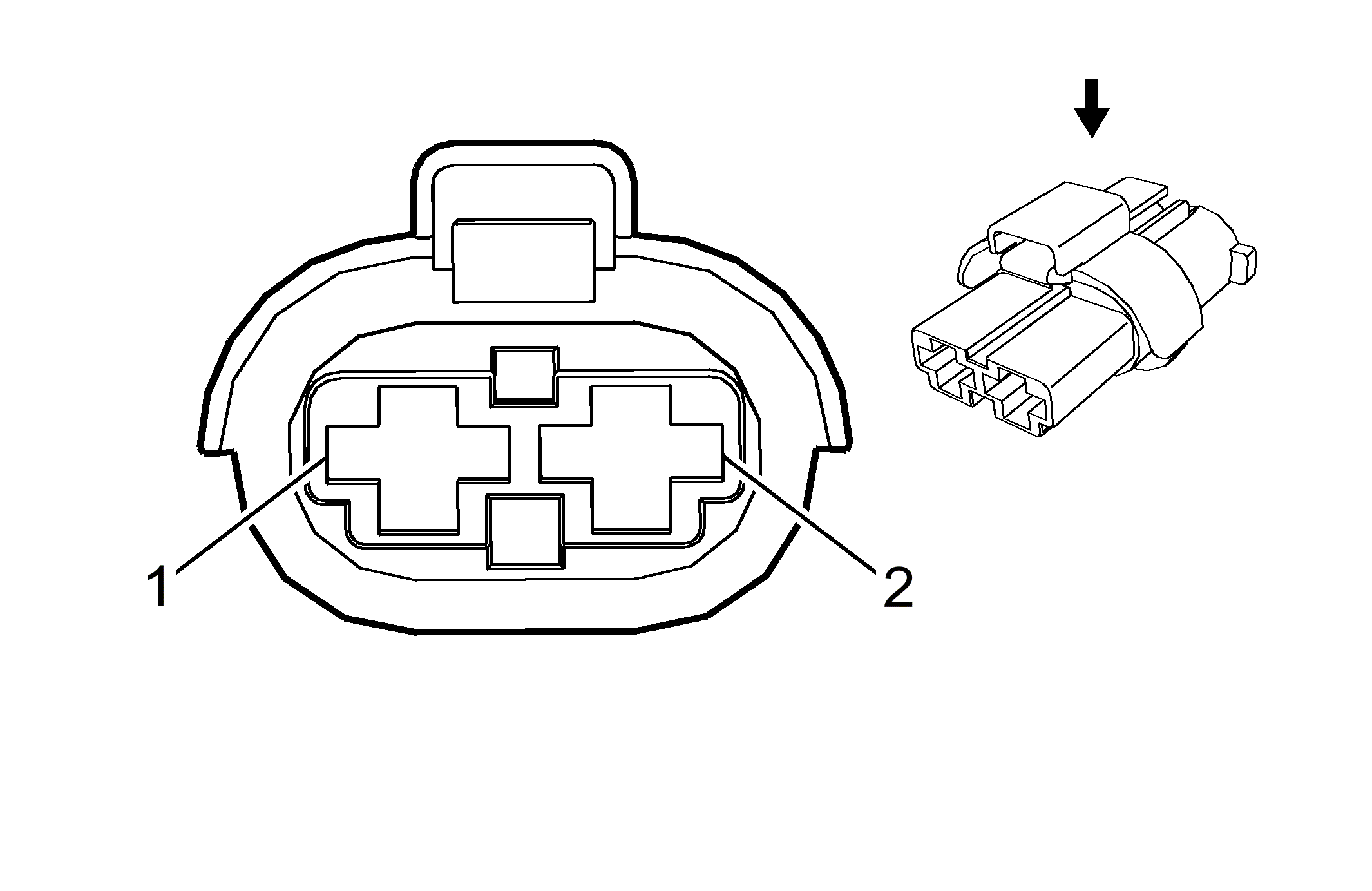

X50D Fuse Block - Battery X3
|
|
Connector Part Information
- Harness Type: Battery
- OEM Connector: 6-1544361-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 8.0 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
6 |
RD/BU |
42 |
Battery Positive Voltage |
I |
- |
| 2 |
6 |
RD/GY |
142 |
Battery Positive Voltage |
I |
- |
