Installation Procedure

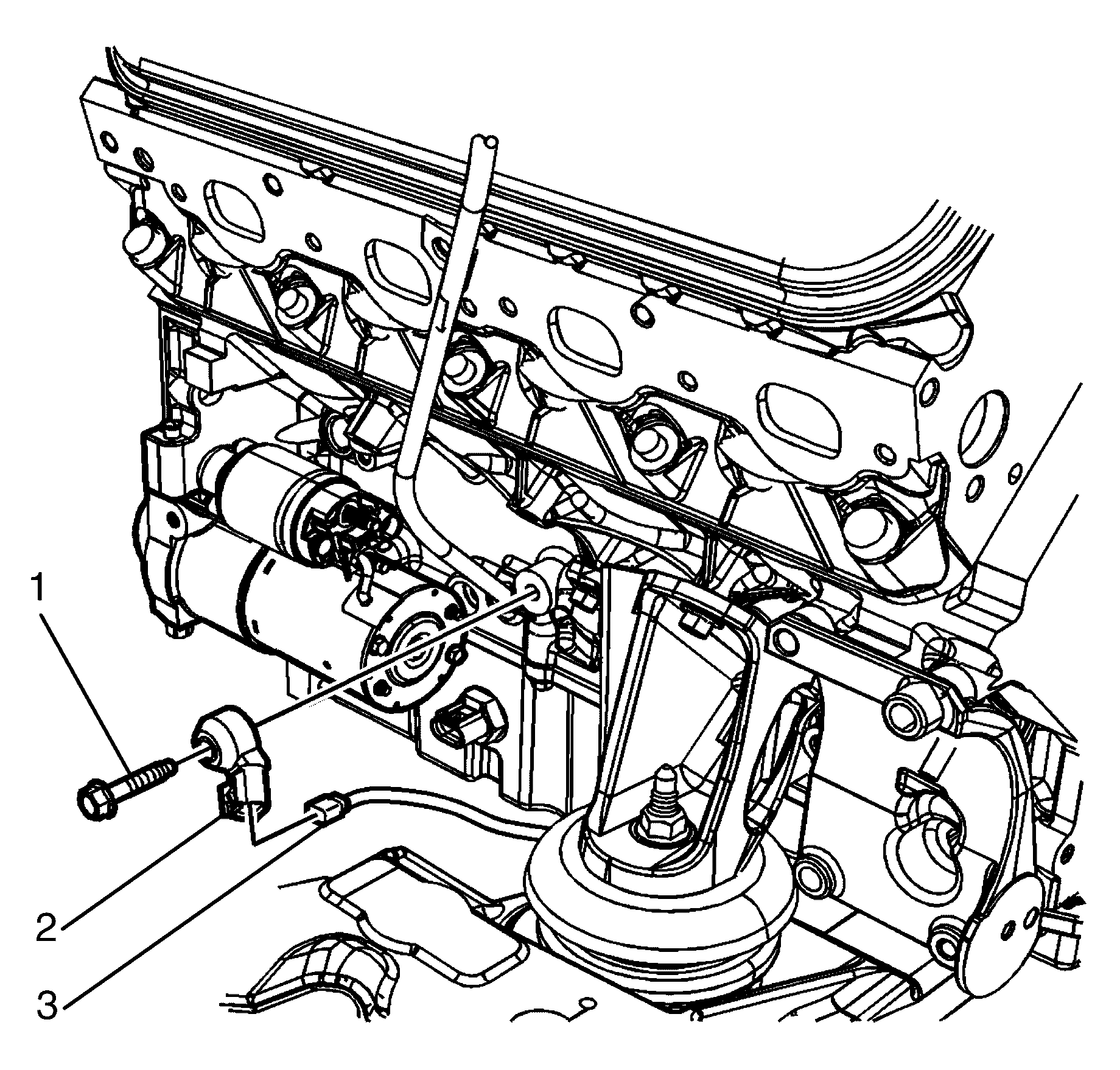

    Fig 1: Knock Sensor To Engine Block Retaining Bolt
    GM1950774Courtesy of GENERAL MOTORS COMPANY
  1. Connect the engine wiring harness (3) to the knock sensor (2).
  2. Position the knock sensor (2) on the engine block.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the knock sensor to engine block retaining bolt (1) and tighten to 25 N.m (18 lb ft).
  4. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection .
