Fuel Feed Hose Replacement (Flex Sensor to Pipe)

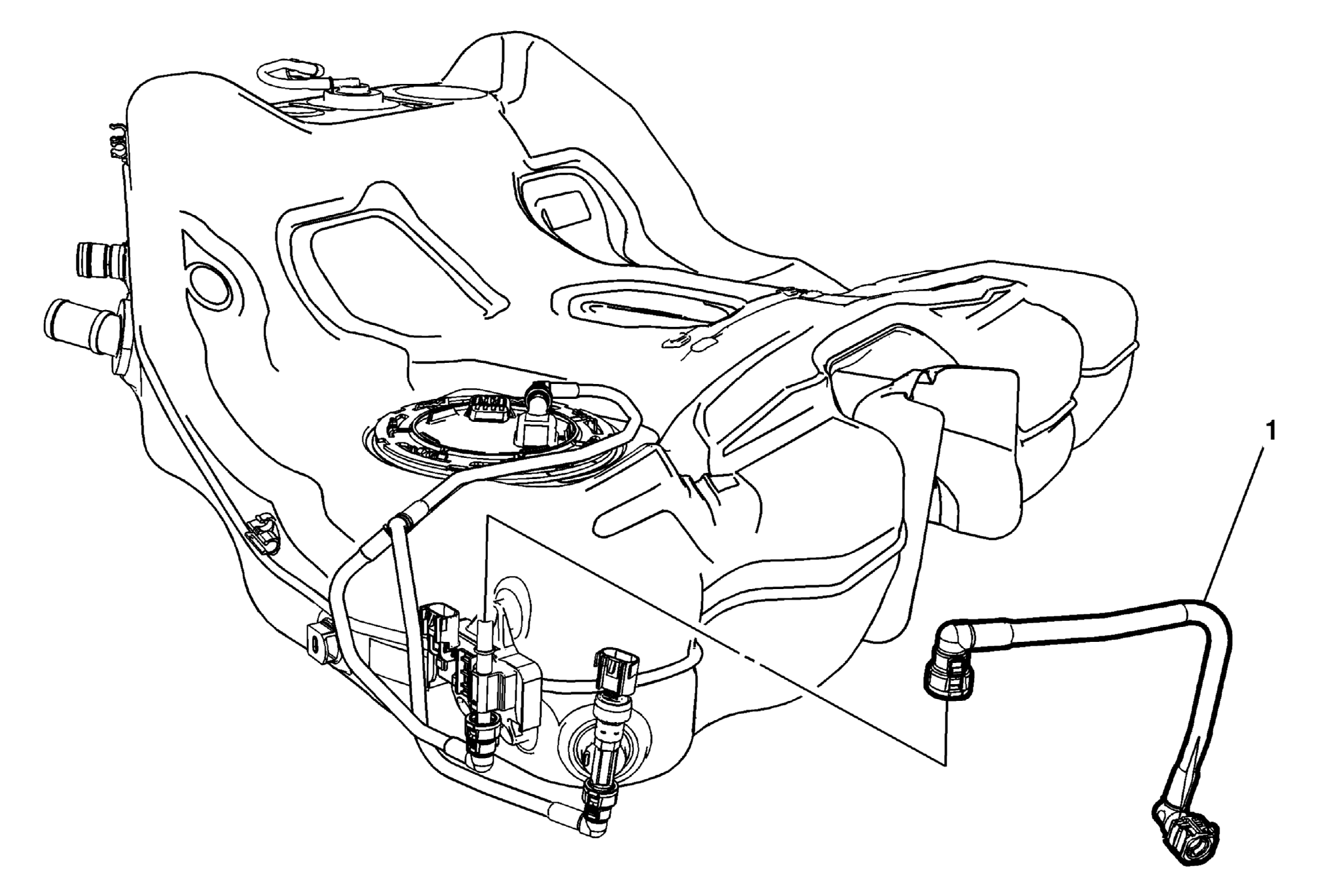

Fig 1: Fuel Feed Hose (Flex Sensor to Pipe)
GM3238854Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Feed Hose
Procedure
Disconnect the quick connect fitting. Refer to Plastic Collar Quick Connect Fitting Service .
