Fuel Feed Hose Replacement (Flex Sensor to Module to Fuel Pressure Sensor)

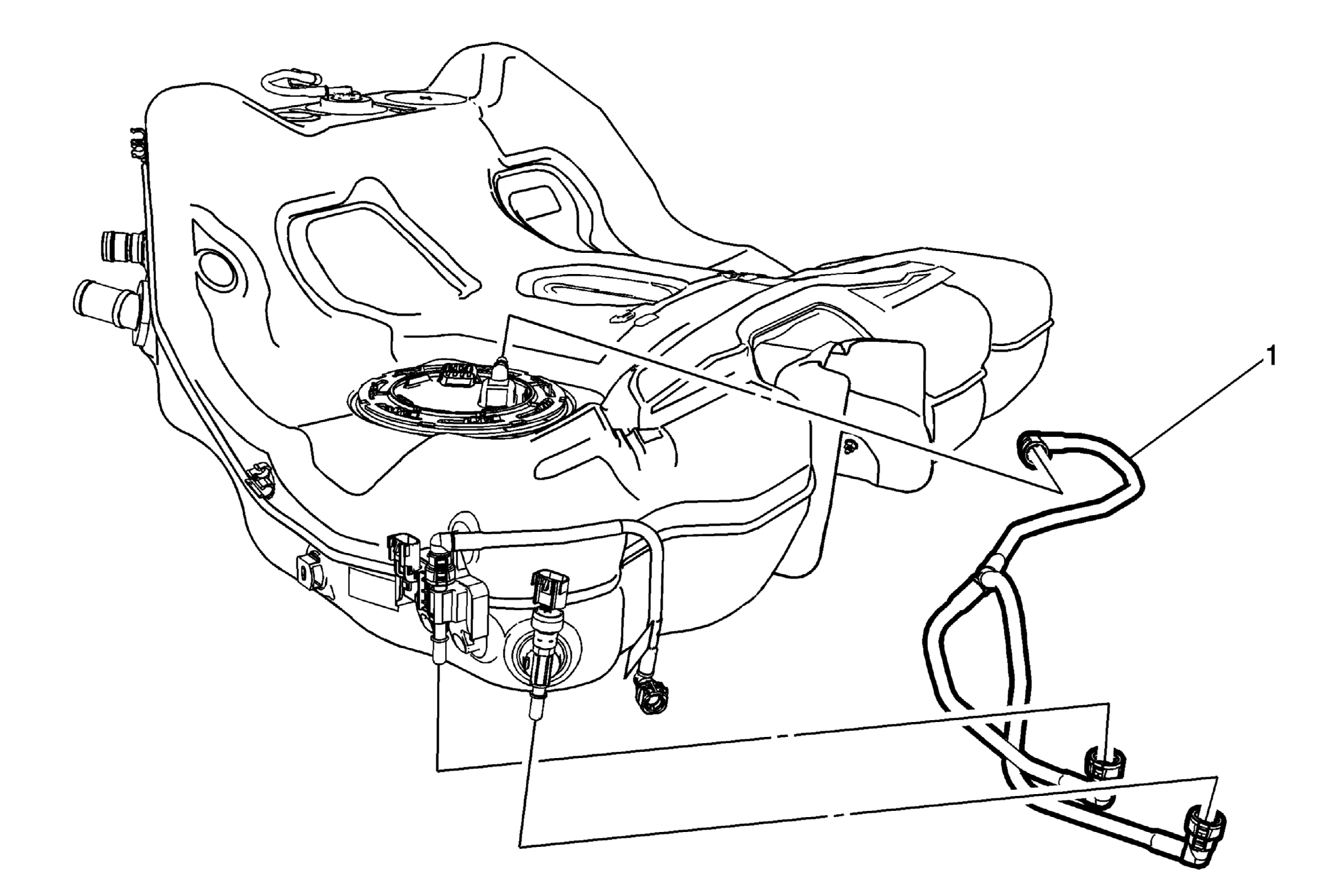

Fig 1: Fuel Feed Hose (Flex Sensor to Module to Fuel Pressure Sensor)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Feed Hose Procedure  Disconnect the quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
