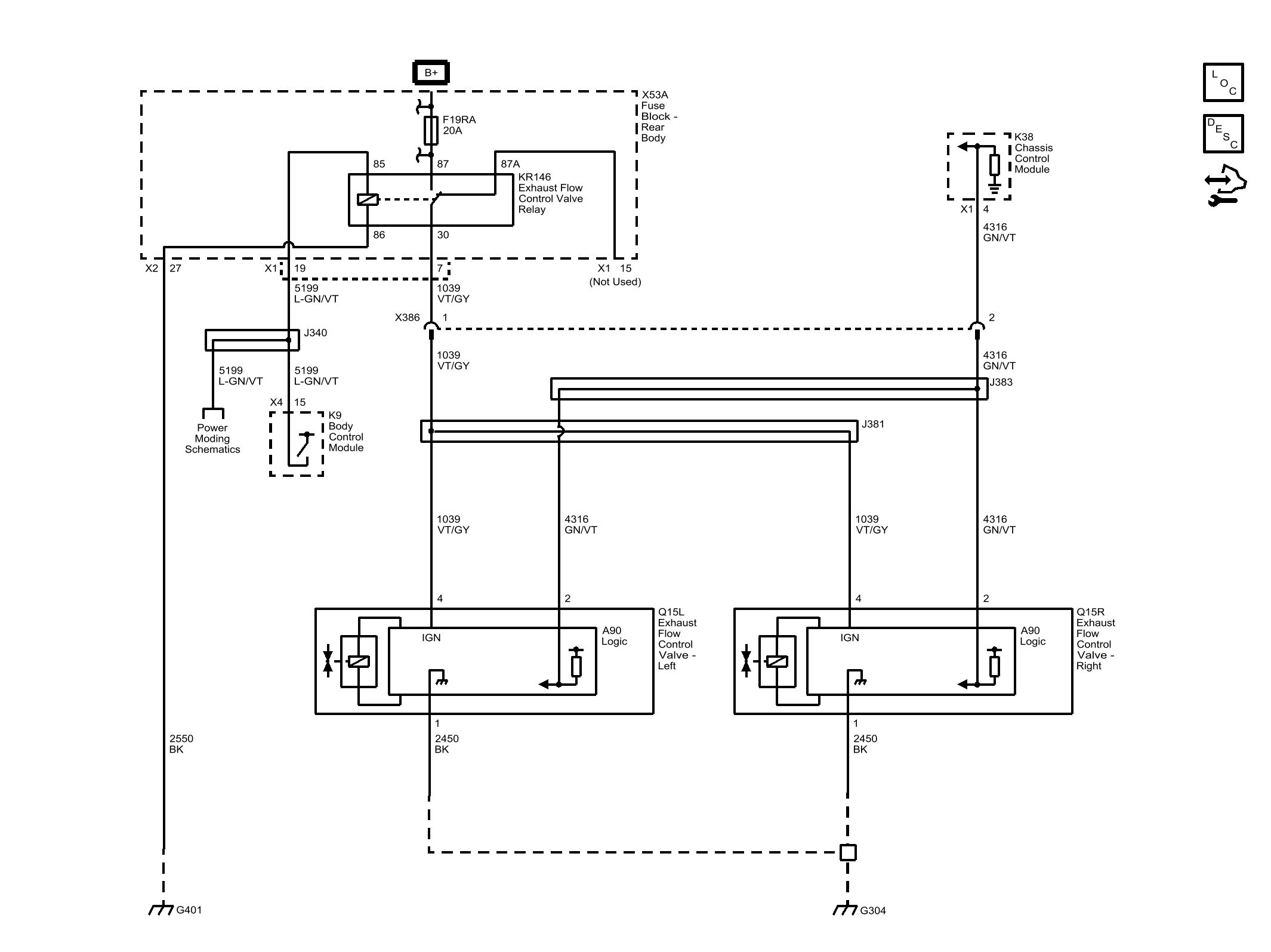

Home >> Chevrolet >> 2017 >> SS Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Schematic Wiring Diagrams >> Exhaust System Wiring Schematics >> Engine Exhaust Flow Control
