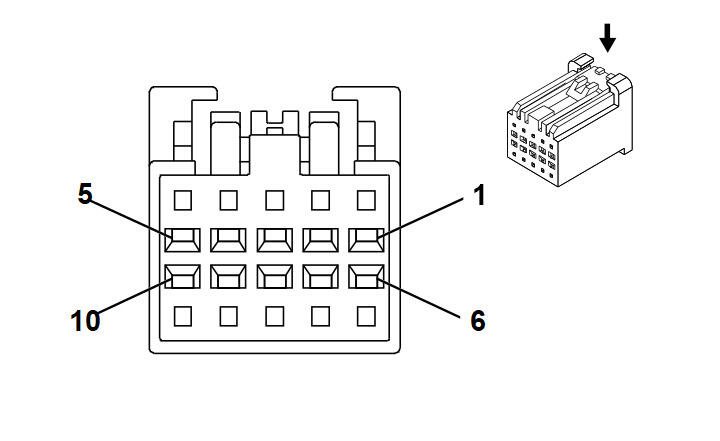

P17 Info Display Module X2
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 7287-8644-40
- Service Connector: 13581139
- Description: 10-Way F 0.64 Kaizen Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300624 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
7459 |
Integrated Center Stack Serial Data Low |
I |
- |
| 2 |
0.35 |
VT |
7458 |
Center Integrated Center Stack Serial Data High |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
VT |
3370 |
Touch Screen Display Signal (-) |
I |
- |
| 6 |
0.35 |
BARE |
7460 |
Integrated Center Stack Serial Data Shield Ground |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BARE |
3368 |
Touch Screen Display Low Reference |
I |
- |
| 10 |
0.35 |
GY |
3369 |
Touch Screen Display Signal (+) |
I |
- |
