Head-Up Display Bracket Replacement

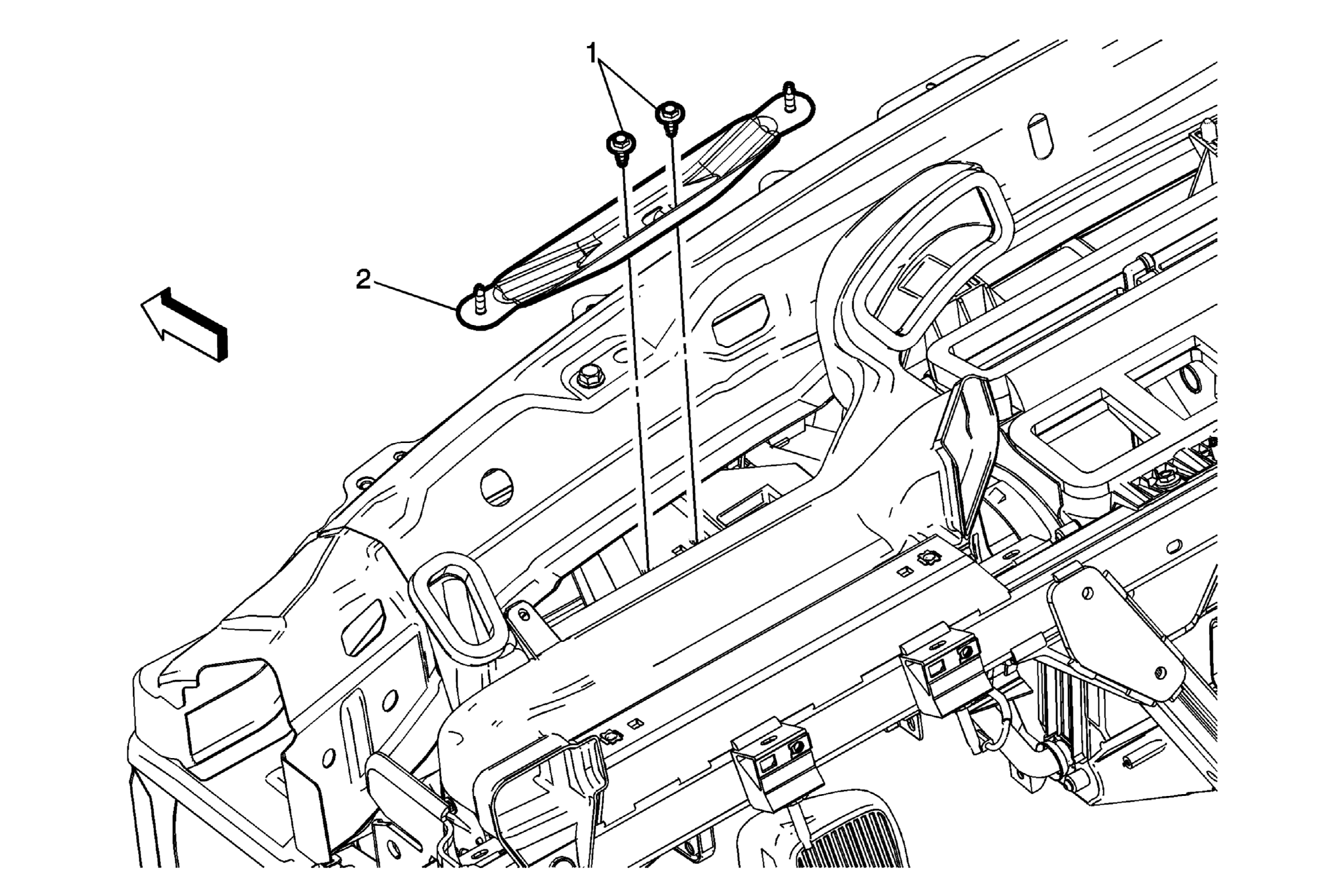

Fig 1: Head-Up Display Bracket
GM3535713Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the head-up display. Refer to Head-Up Display Replacement .
1 Head-Up Display Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Head-Up Display Bracket
