Installation Procedure

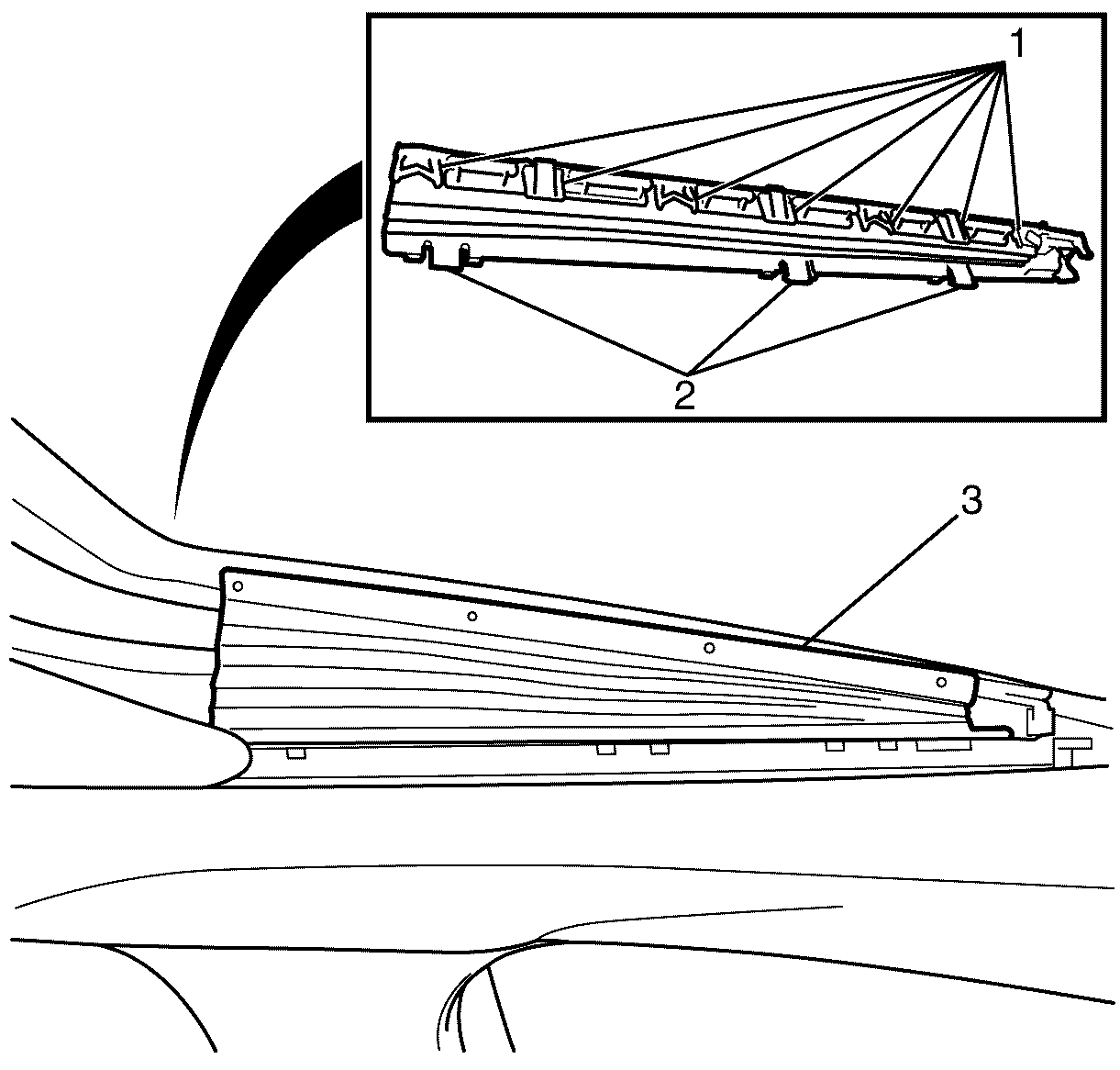

    Fig 1: Roof Vent Window Latch Cover & Sunroof Locking Tabs
    GM2281732Courtesy of GENERAL MOTORS COMPANY
  1. Position the new sunroof vent window latch cover (3) to the sunroof panel assembly.
  2. Hold the lower part of the sunroof vent window latch cover firmly and press the locking tabs (2) into the sunroof panel assembly, listen for audible clicks to confirm fitting.
  3. Make sure the entire length of the sunroof vent window latch cover is secure to the sunroof panel assembly.
  4. Attach the sunroof vent window latch cover to the sunroof window locating tabs (1), listen for audible clicks to confirm fitting.
  5. Repeat for the opposite side.
  6. Close the sunroof window to make sure proper operation and fitting.
  7. Close the sunshade.
