Driver Footrest Replacement

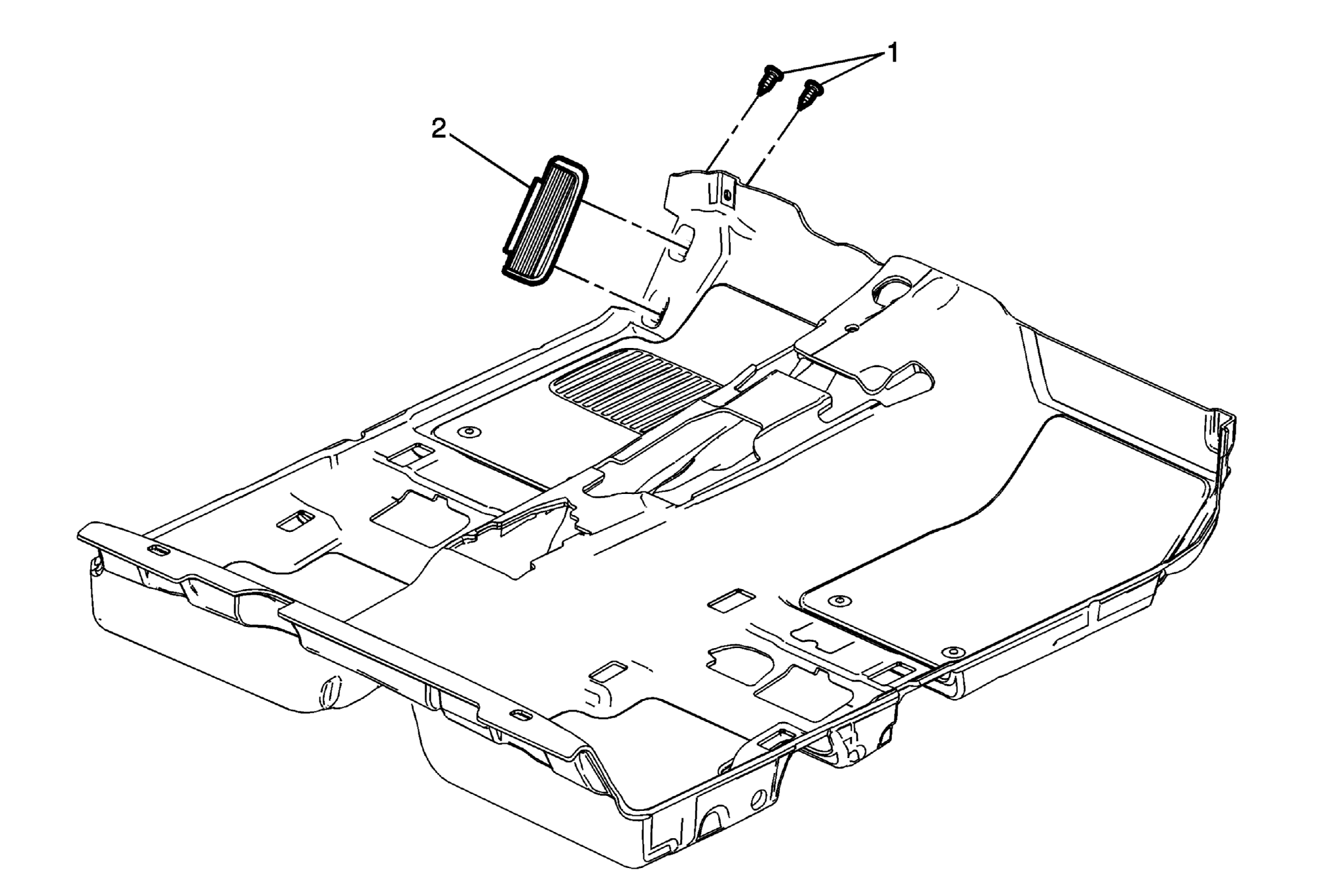

Fig 1: Driver Footrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the floor panel carpet. Refer to Floor Panel Carpet Replacement .
1	Floor Carpet Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Driver Footrest
